Product Description

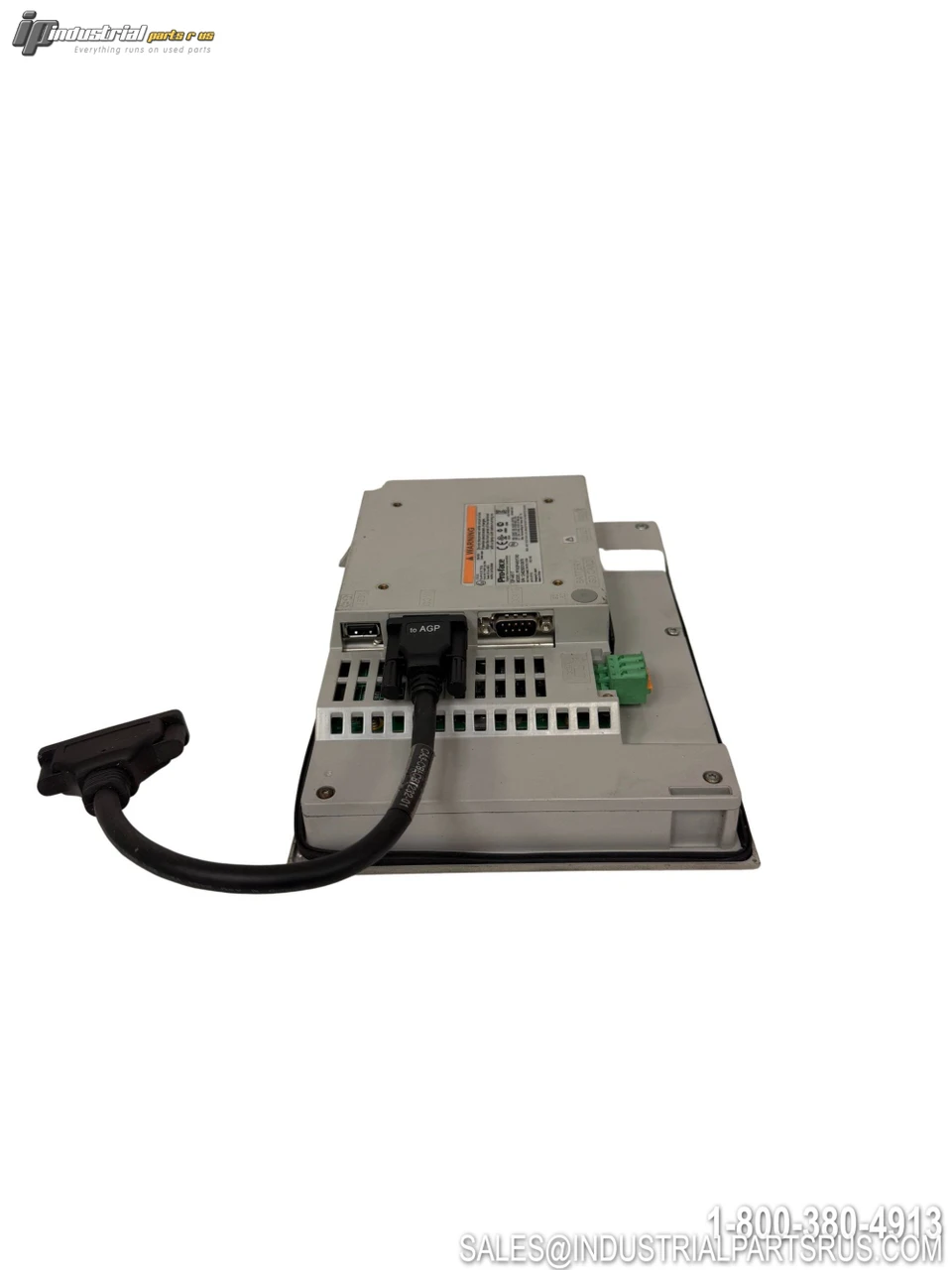

The Pro-Face PFXGP4401TAD (GP-4401T) is a 7.5-inch analog resistive touchscreen Human Machine Interface (HMI) belonging to the GP4000 Series. It features a TFT color LCD display with 640x480 VGA resolution and 65,536 colors, designed for industrial operator interface applications. The unit supports multiple communication protocols including RS-232C, RS-422/485, and 10/100BASE-TX Ethernet, and operates on a 24VDC nominal power supply with an IP65-rated front panel for wash-down and dust protection. Programmed using GP-Pro EX software and certified CE, UL, RoHS, ABS, and DNV.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pro-Face |
| Model / Part Number | PFXGP4401TAD |
| Order Code | GP-4401T |
| Series | GP4000 Series |
| Product Type | Analog Touchscreen Operator Interface (HMI) |
| Display Type | TFT Color LCD |
| Display Size | 7.5 inches |
| Resolution | 640 x 480 pixels (VGA) |
| Display Colors | 65,536 (No blink) / 16,384 (Blink) |
| Effective Display Area | W153.7 x H115.8 mm (W6.05 x H4.56 in.) |
| Backlight | White LED |
| Backlight Service Life | 50,000 hours or more |
| Brightness Control | 16 Levels |
| Touch Screen Type | Resistive Film Analog |
| Touch Panel Resolution | 1024 x 1024 |
| Rated Input Voltage | 24VDC (nominal) |
| Supply Voltage Range | 19.2 – 28.8 VDC |
| Power Consumption | 3.4 W or Less |
| Memory | 32 MB Flash EPROM |
| Data Backup | 320 KB SRAM |
| COM1 Serial Port | RS-232C, D-Sub 9-pin, 2,400 – 115,200 bps |
| COM2 Serial Port | RS-422/RS-485, D-Sub 9-pin, 2,400 – 115,200 bps (187.5 kbps MPI) |
| Ethernet | IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, RJ-45 x 1 |
| USB Ports | USB Type-A (2.0) x 1 + USB Mini-B (2.0) x 1 |
| SD Card Slot | SD Card slot x 1 (max 32 GB SD/SDHC) |
| Number of Ports | 6 |
| IP Rating | IP65F (front panel) |
| NEMA Rating | NEMA 4X / NEMA 13 |
| Mounting Type | Flush Panel Mount |
| Bezel / Overlay Color | Silver Overlay / Gray Bezel |
| Cooling Method | Natural Air Circulation (Passive) |
| Dimensions | 218 x 60 x 173 mm |
| Weight | Approximately 2.65 lbs (approx. 1 kg) |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Insulation Resistance | 500 VDC |
| Degree of Pollution | 2 |
| Certifications | CE, UL Listed Cl 1 Div 2 (Rev. B only), RoHS, ABS, DNV |
| Compliant Standards | IEC 61131-2, IEC 61000-4-2 |
| Programming Software | GP-Pro EX |
| Replacement Model | PFXGP6400TAD (GP6000 Series) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Pro-face
Enclosure Type IP65F front panel, NEMA 4X / NEMA 13
Part Number PFXGP4401TAD
Controller Platform Pro-Face GP4000 Series
Shelf D-15
Model GP-4401T
MPN PFXGP4401TAD
Type Touch Panel
