Product Description

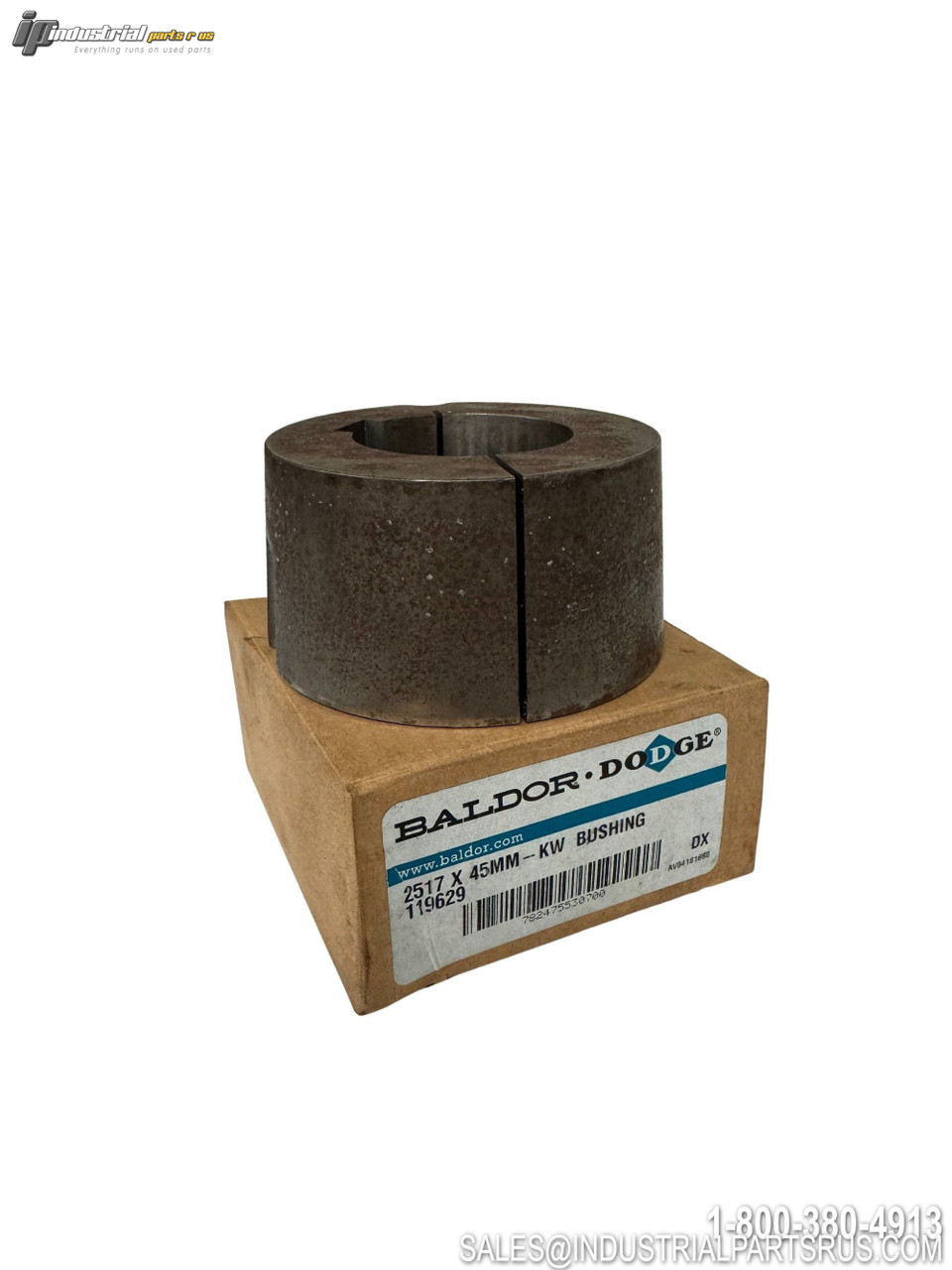

The Baldor Dodge 2517 X 45MM is a Taper Lock Bushing from the Dodge 2517 series, featuring a 45mm metric finished bore with keyway. Designed for use with taper lock style sheaves, sprockets, and pulleys, this bushing employs an 8° self-locking taper for flush, wobble-free mounting with no protruding parts. It is manufactured from sintered steel and is widely used in belt drive, chain drive, and gear applications across industrial power transmission systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Baldor / Dodge |
| Model / Part Number | 2517 X 45MM |
| Dodge Catalog Number | 119629 |
| Product Type | Taper Lock Bushing |
| Bushing Series | 2517 |
| Bore Diameter | 45 mm |
| Bore Type | Finished / Stock Bore with Keyway |
| Outside Diameter (Barrel) | 3.38 in (85.85 mm) |
| Hub Outside Diameter (Max) | 4.38 in Steel / 4.88 in Class 30 Gray Iron |
| Overall Length (Length Through Bore) | 1-3/4 in (44.45 mm) |
| Taper Angle | 8° |
| Bolt Circle Diameter | 3-1/4 in |
| Number of Bolt Holes | 2 |
| Screw Size | 1/2 × 1 in |
| Keyway Size | 14 × 3.8 mm |
| Torque Capacity | 11,600 in-lb |
| Material | Sintered Steel |
| Compatible Applications | V-Belt Sheaves, Synchronous Pulleys, Sprockets, Drum/Drive/Tail Pulleys, Gears |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Baldor
Part Number 2517 X 45MM
Shelf K-70
Model 2517 X 45MM
MPN 2517 X 45MM
Type Taper Lock Bushing
