Product Description

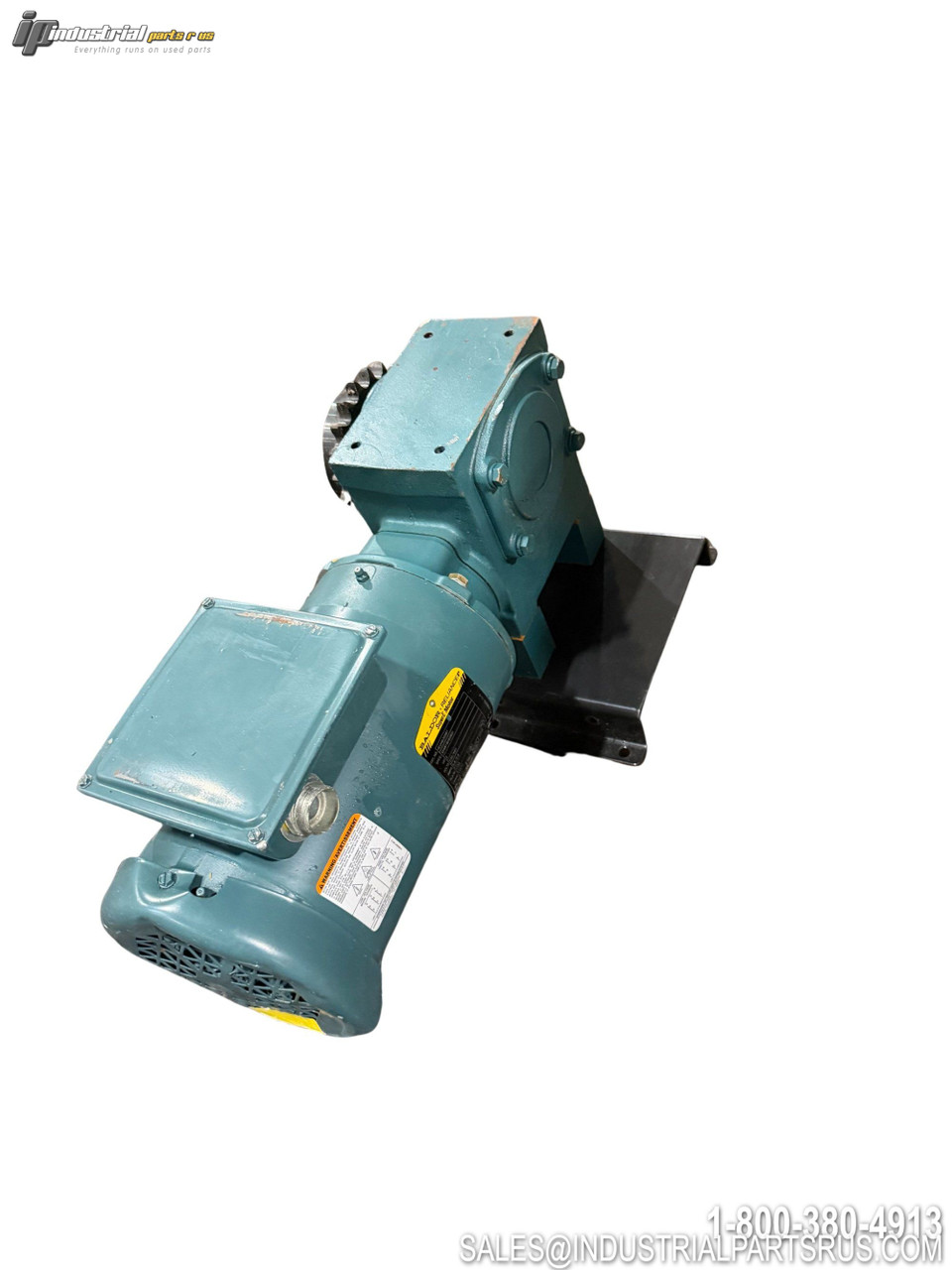

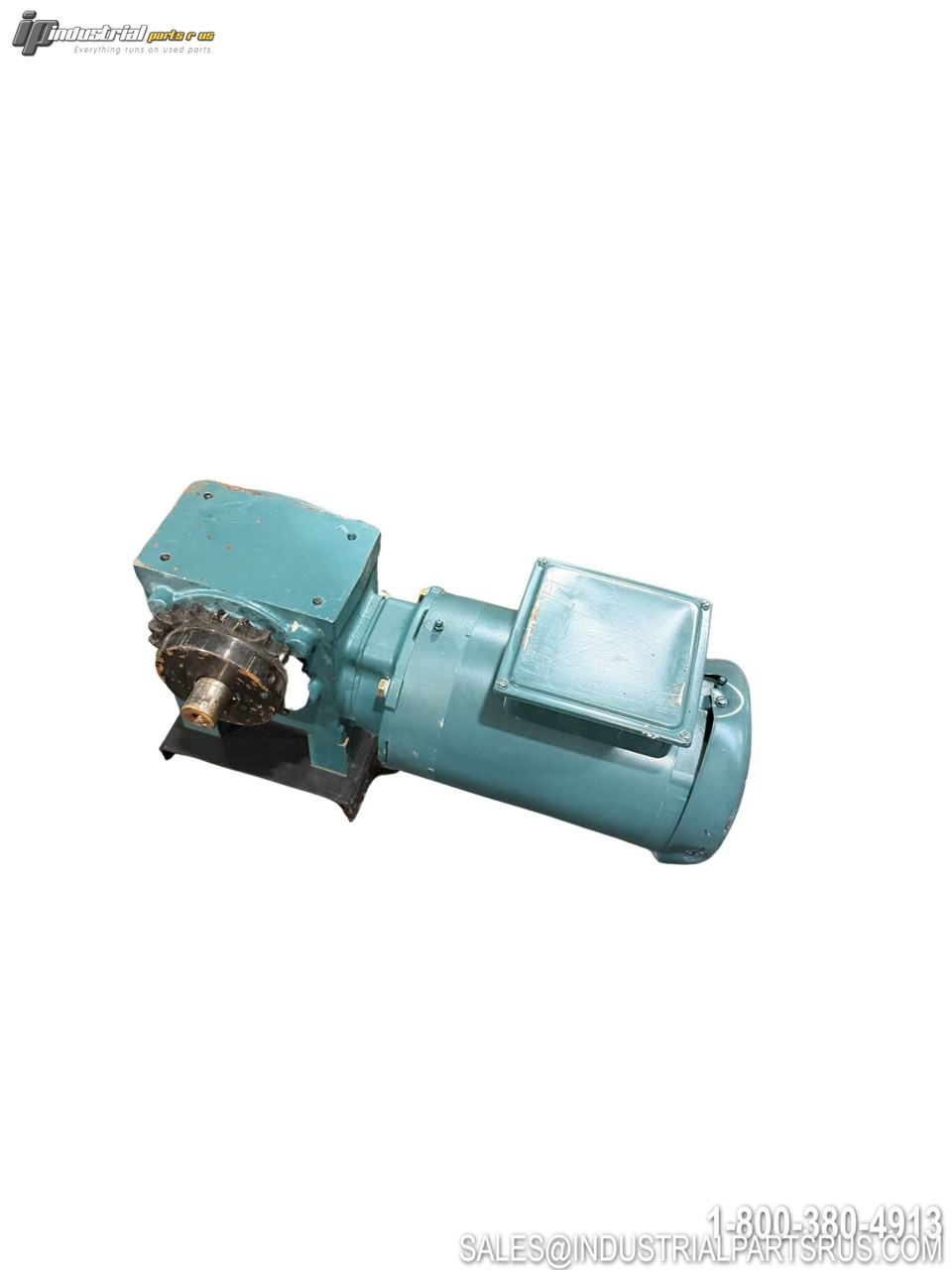

The Baldor-Reliance VEUHM3558T is a 2 HP, three-phase AC induction motor engineered for unit and baggage handling applications including conveyors, packaging equipment, machine tools, hoists, and door openers. It features a Totally Enclosed Fan-Cooled (TEFC) steel frame construction in a 145TC C-face footless (F3) mounting configuration, making it ideal for direct-coupled drive applications. The motor is inverter ready, carries NEMA Design B characteristics, and meets NEMA Premium efficiency standards with 86.5% full-load efficiency. The shaft is a straight type with keyway, and the motor carries an IP54 protection rating.

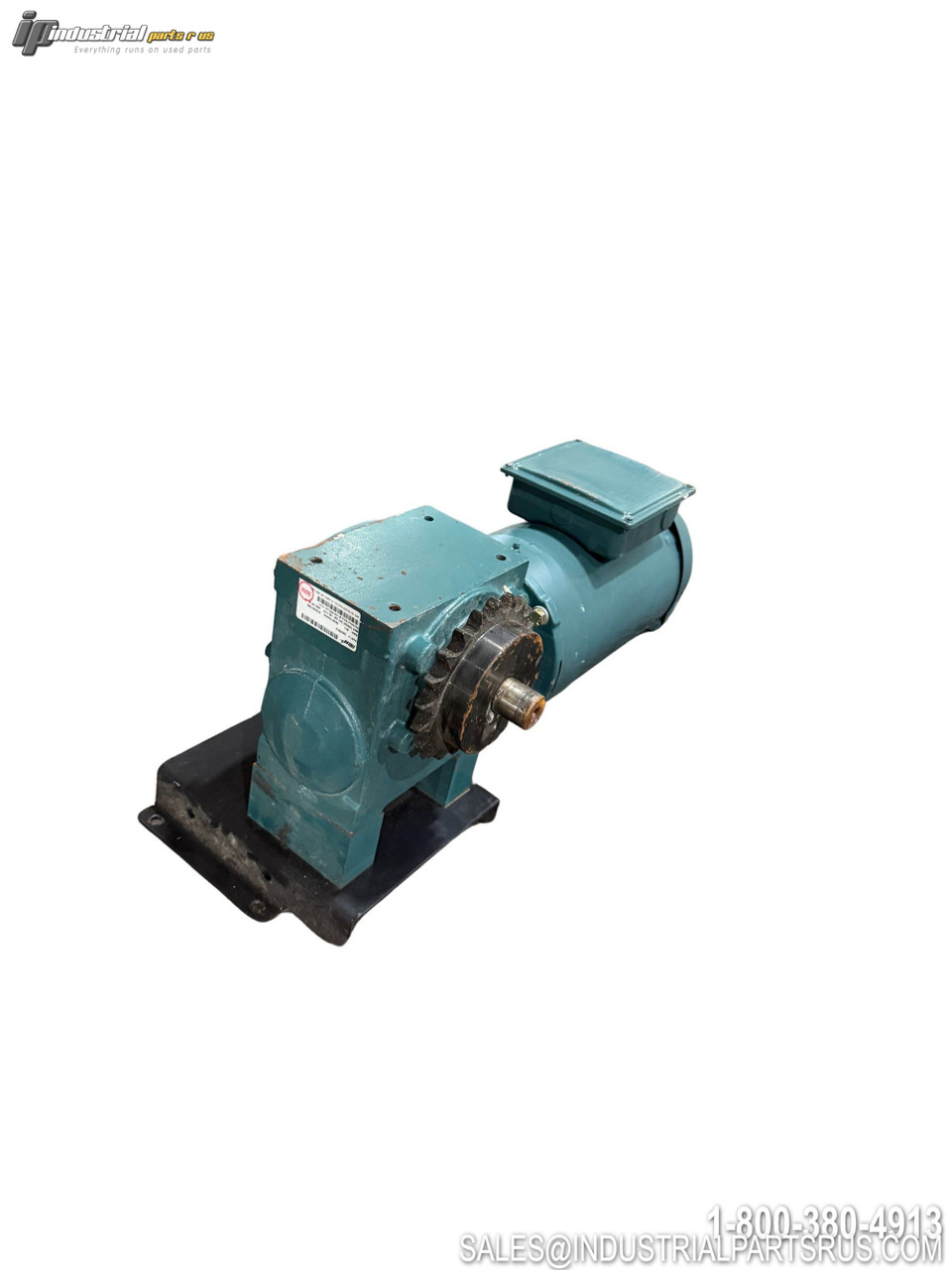

Gear reducer specifications
The Dodge 23Q20R14 is:
- Brand: Dodge
- Model: 23Q20R14
- Series: Tigear-2
- Type: Right-angle worm gear reducer
- Ratio: 20:1
- Rated HP: 2 HP
- Input: Quill
- Input size: 7/8"
- Output: Solid B Right
- Output shaft: 1-1/8"
- Maximum output speed: 88 RPM
- Maximum input speed: 1,750 RPM
- Torque rating: 1,178 in-lb
- Lubrication: Synthetic oil

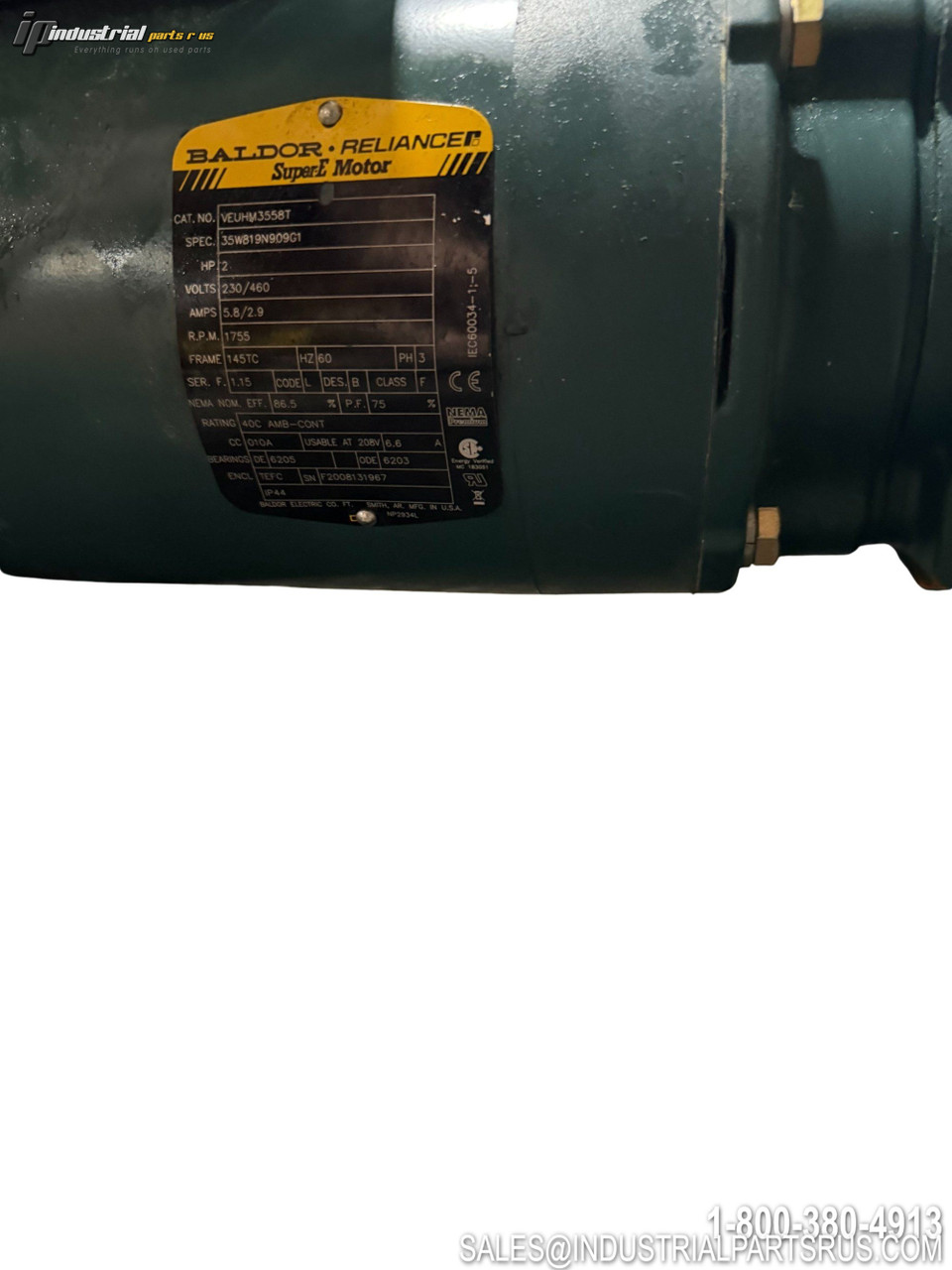

Technical Specifications
| Specification | Value |
|---|---|
| Brand | Baldor / Baldor-Reliance |
| Model / Part Number | VEUHM3558T |
| Motor Type | Three-Phase AC Induction — Unit Handling |
| Output / Horsepower | 2 HP (1.5 kW) |
| Synchronous Speed | 1800 RPM @ 60 Hz |
| Full Load Speed (Nameplate) | 1750 RPM |
| Voltage | 208-230 / 460 VAC |
| Phase | 3 |
| Frequency | 60 Hz |
| Full Load Amps | 6.6A @ 208V / 5.8A @ 230V / 2.9A @ 460V |
| High Voltage Full Load Amps | 2.9 A |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame Size | 145TC |
| Frame Material | Steel |
| Mounting Type | C-Face Footless (F3) |
| Number of Poles | 4 |
| NEMA Design Code | B |
| KVA Code | L |
| Insulation Class | F |
| Service Factor | 1.15 |
| Efficiency @ 100% Load | 86.5% |
| Power Factor | 80 |
| Duty Rating | Continuous (CONT) |
| Ambient Temperature | 40°C |
| Shaft Diameter | 0.875 in (7/8 in) |
| Overall Length | 13.29 in |
| Bearing Type | Ball |
| Bearing Grease Type | Polyrex EM (-20°F to +300°F) |
| Inverter Ready | Yes |
| Rotation | Reversible |
| Number of Speeds | 1 |
| Baldor Motor Type Code | 3526M |
| Agency Approvals | CE, CSA, UR (NEMA Premium) |
| Ship Weight | 48 lbs |
