Product Description

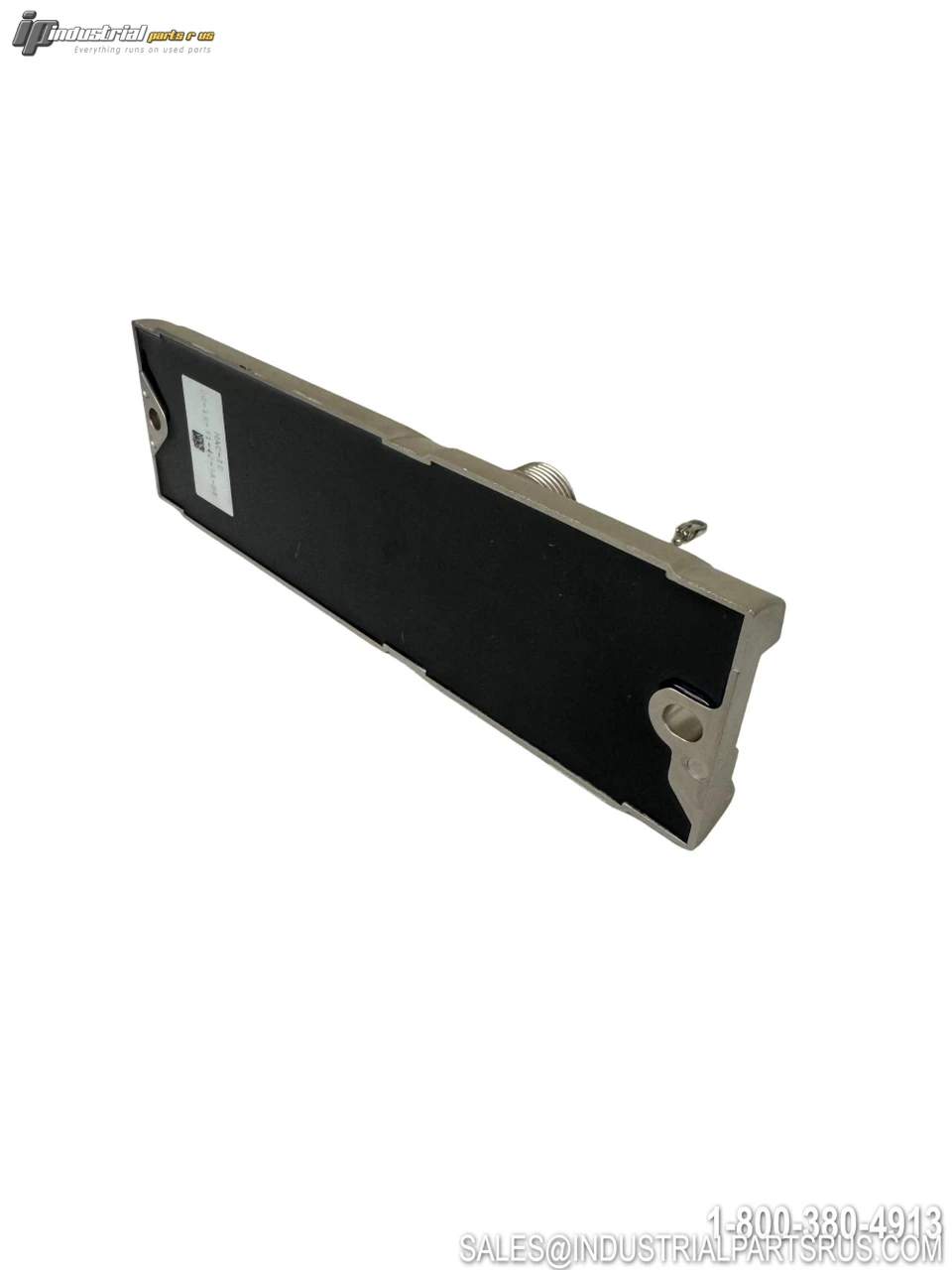

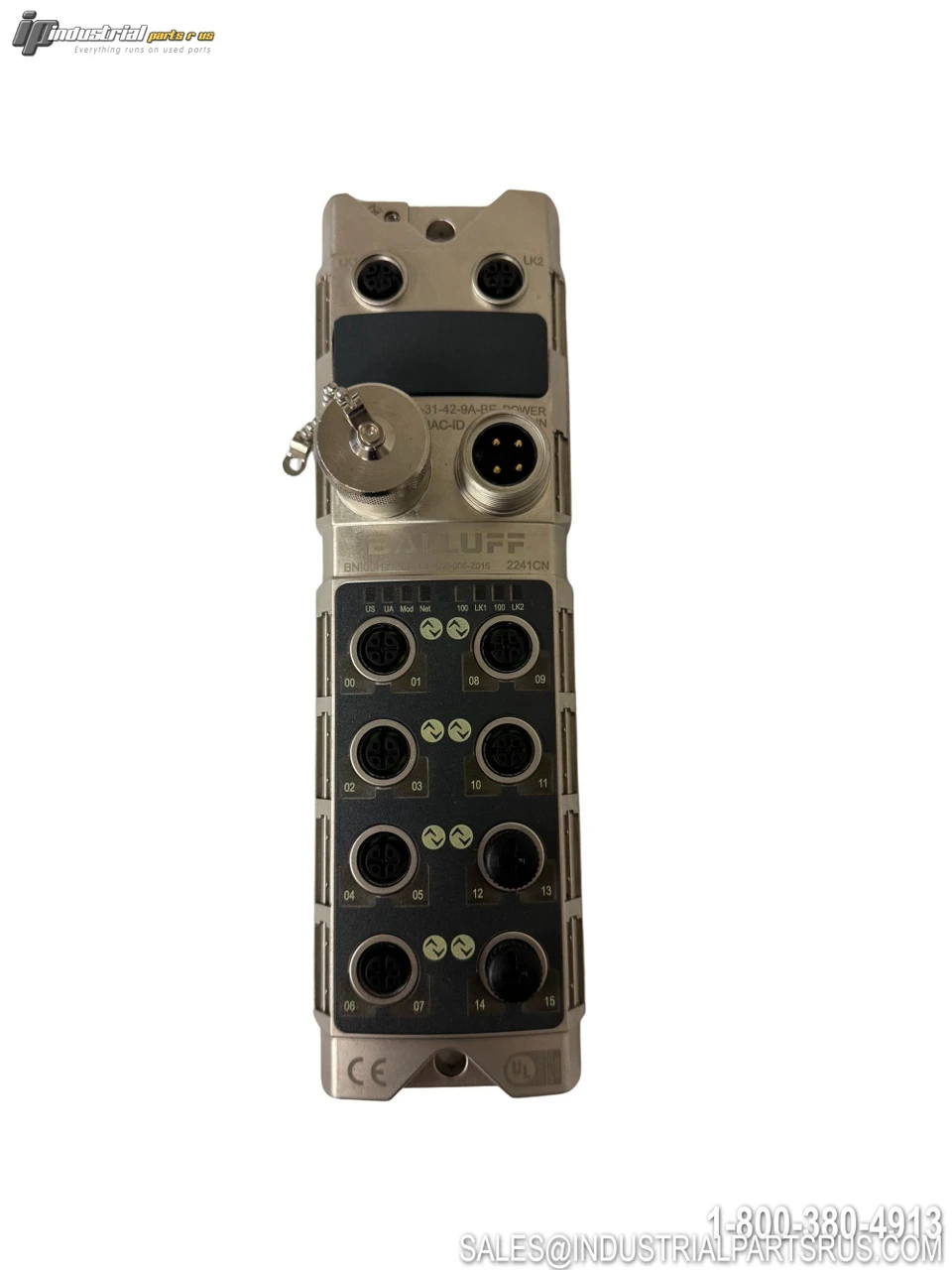

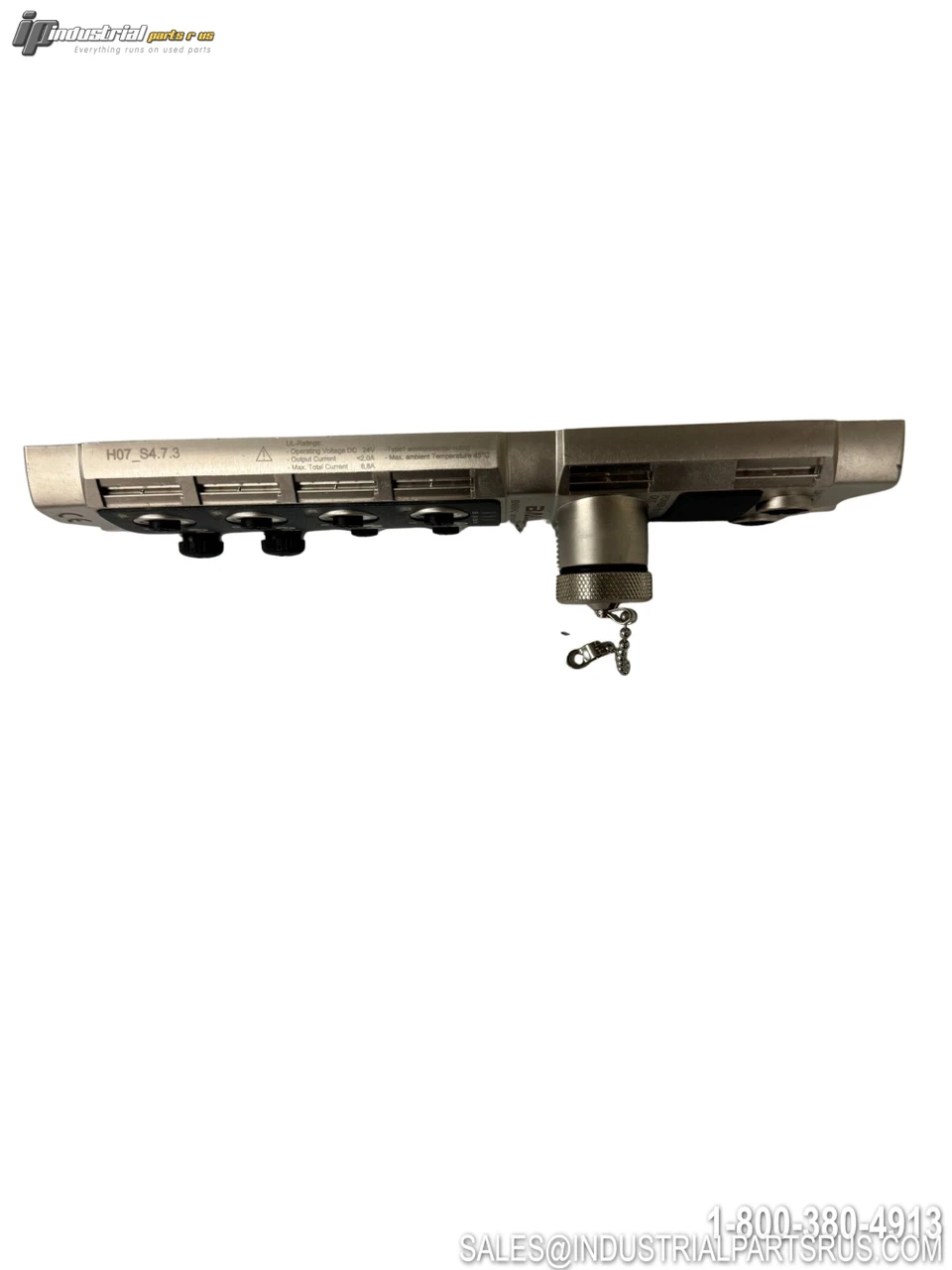

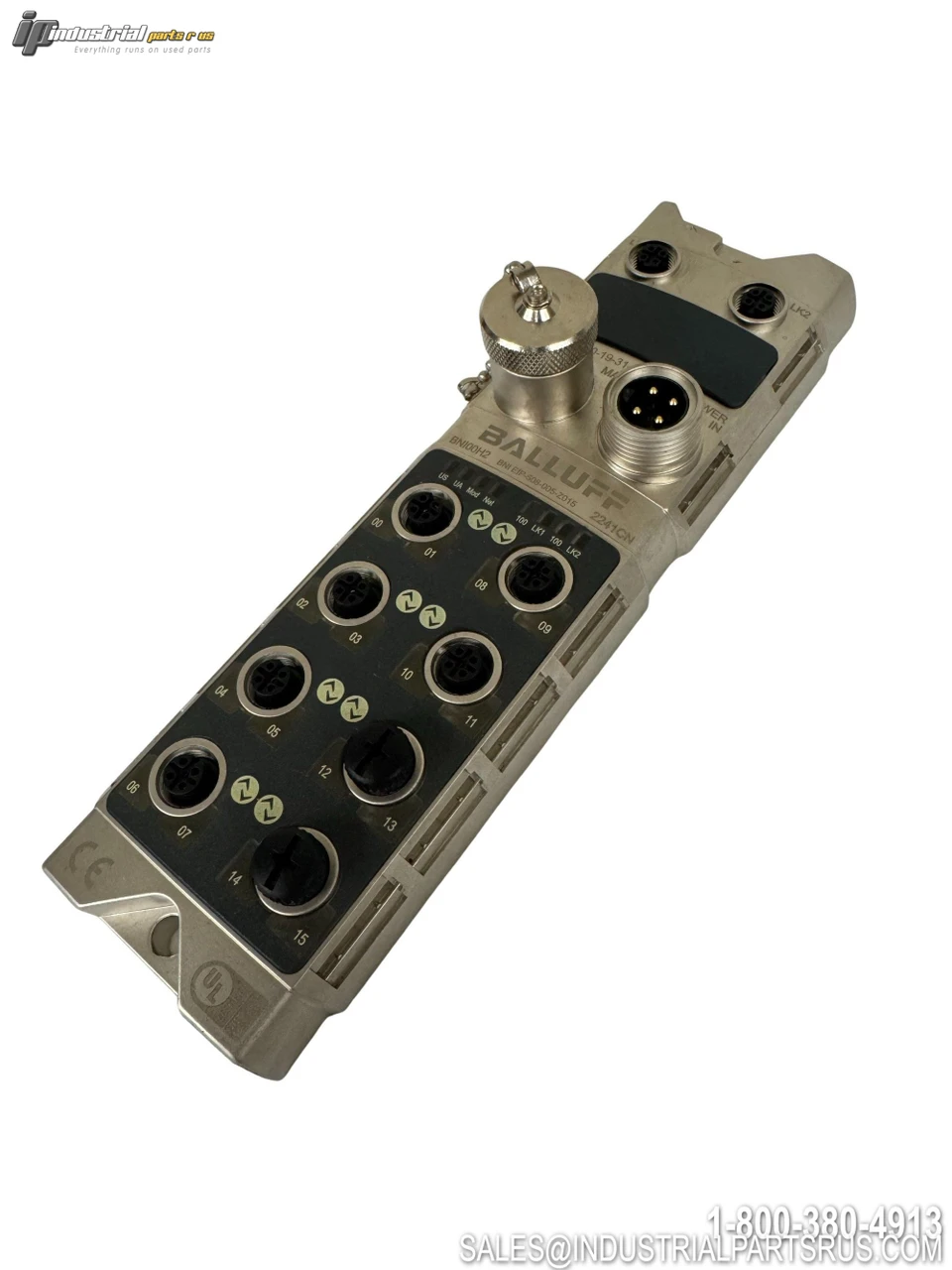

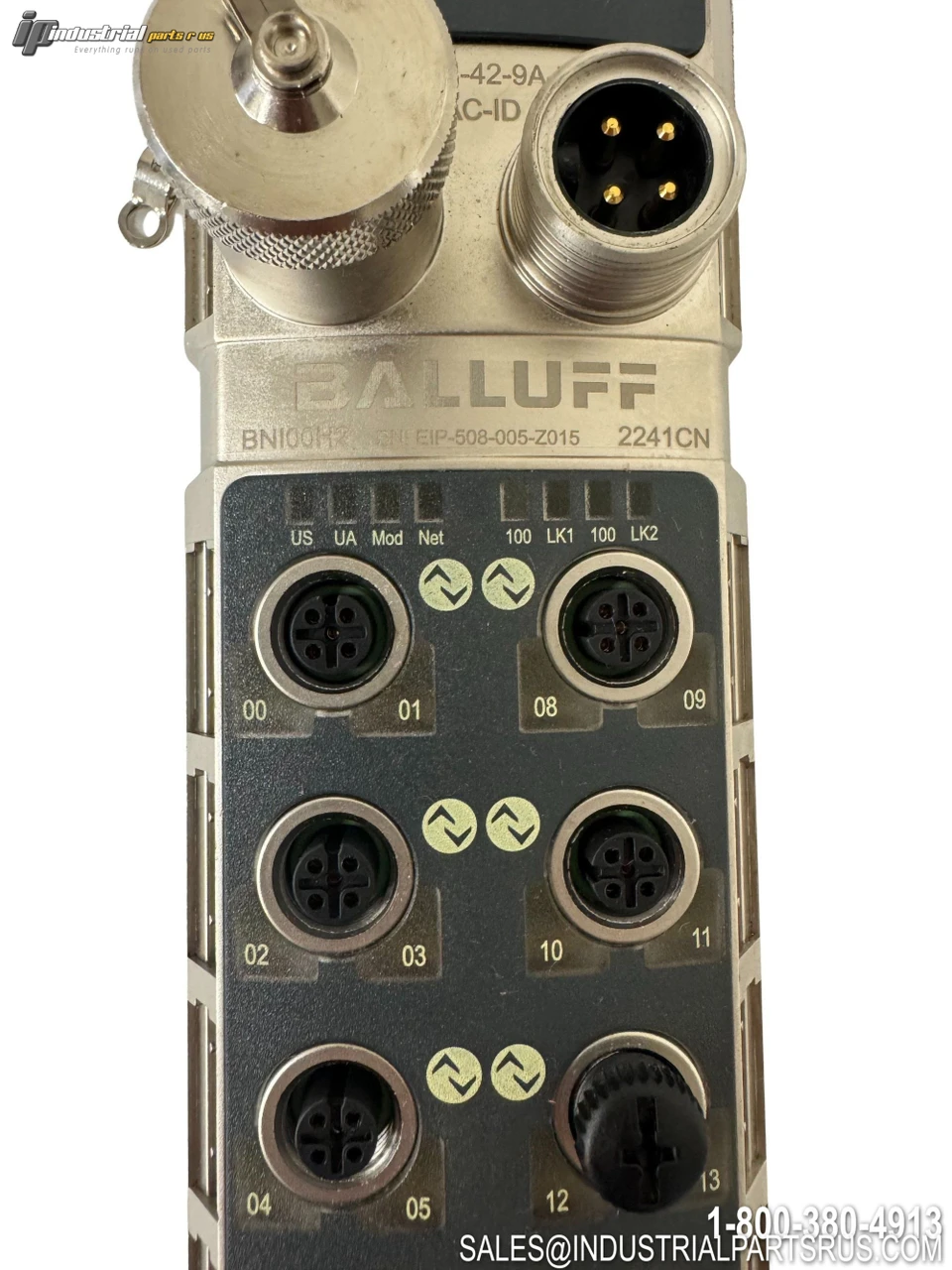

The Balluff BNI00H2 (BNI EIP-508-005-Z015) is an EtherNet/IP IO-Link master network block designed for decentralized I/O and IO-Link device integration in industrial automation environments. It features 8 IO-Link Type A auxiliary ports, 16 configurable PNP digital inputs/outputs, and an IP67-rated die-cast zinc housing suitable for harsh industrial conditions. This module is listed as discontinued by Balluff; the recommended successor is the BNI00HM (BNI EIP-508-005-Z015-013).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Order Code / Model | BNI00H2 / BNI EIP-508-005-Z015 |
| Product Type | Network Block / IO-Link Master |
| Interface | EtherNet/IP |
| Auxiliary Interfaces | 8x IO-Link |
| IO-Link Port Class | Type A |
| IO-Link Version | 1.1 |
| Digital Inputs | 16x PNP, Type 3 |
| Digital Outputs | 16x PNP |
| Configurable Inputs/Outputs | Yes |
| Output Current Max. | 2 A (short-circuit proof and overload-proof) |
| Current Sum US / Sensor | 9 A |
| Current Sum UA / Actuator | 9 A |
| Operating Voltage | 18...30.2 VDC |
| Display | No |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded |
| Connection (Supply Voltage IN) | 7/8"-Male, 4-pin |
| Connection (Supply Voltage OUT) | 7/8"-Female, 4-pin |
| Connection Slots | 8x M12x1-Female, 5-pin, A-coded |
| Housing Material | Zinc, Die Casting |
| Dimensions (W x H x L) | 68 x 37.9 x 224 mm |
| Ambient Temperature | -5...70 °C |
| IP Rating | IP67 |
| Approvals / Standards | CE, EAC, cULus, IO-LINK, WEEE |
| Product Status | Discontinued (Successor: BNI00HM / BNI EIP-508-005-Z015-013) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Full Load Amps 2 A
Manufacturer Balluff
Enclosure Type IP67
Part Number BN100H2 BNI EI-508-005-Z015
Controller Platform EtherNet/IP
Shelf K- 43
Model BN100H2 BNI EI-508-005-Z015
MPN BN100H2 BNI EI-508-005-Z015
Type Network Module
