Product Description

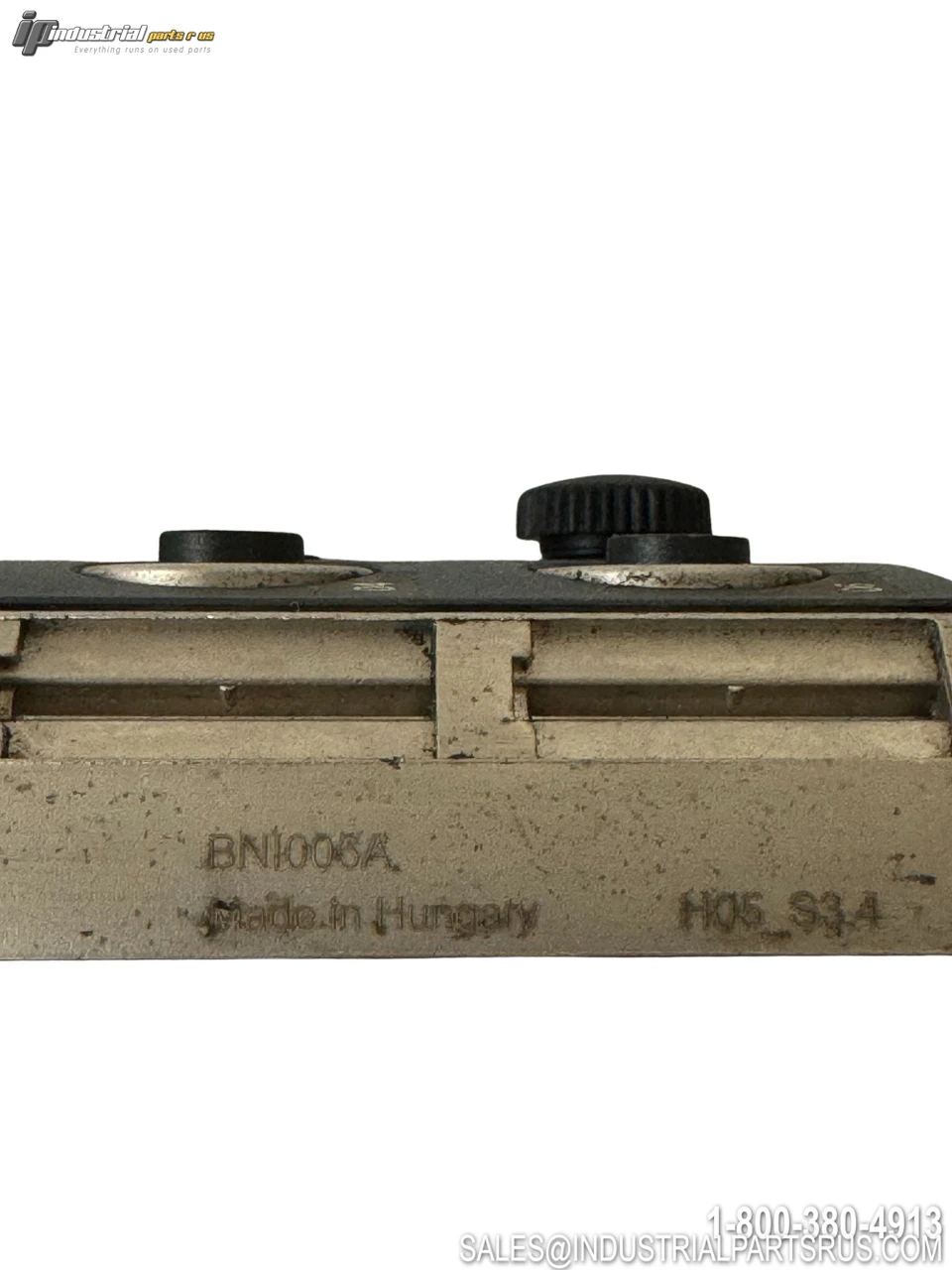

The Balluff BNI006A (catalog number BNI EIP-508-105-Z015) is an EtherNet/IP IO-Link Master network block designed for decentralized I/O and IO-Link device integration in industrial automation systems. It features eight Type A IO-Link ports, 16 PNP digital inputs, and 16 PNP digital outputs, providing a versatile distributed I/O solution for modern factory networks.The module communicates via EtherNet/IP and provides additional IIoT connectivity through REST API and MQTT interfaces. Its rugged, nickel-plated die-cast zinc housing is rated IP67 for protection in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model / Part Number | BNI006A |
| Catalog Number | BNI EIP-508-105-Z015 |
| Product Type | IO-Link Master / EtherNet/IP Network Block |
| Series | BNI Series |
| Fieldbus Interface | EtherNet/IP |
| IIoT Interfaces | REST API, MQTT |
| IO-Link Ports | 8 |
| IO-Link Port Class | Type A |
| IO-Link Version | 1.1.3 |
| Digital Inputs | 16 × PNP, Type 3 |
| Digital Outputs | 16 × PNP |
| Configurable Inputs / Outputs | Yes |
| Maximum Output Current | 2 A per port |
| Current Sum, US (Sensor Supply) | 9.0 A |
| Current Sum, UA (Actuator Supply) | 9.0 A |
| Operating Voltage | 18–30.2 VDC (24 VDC nominal) |
| COM 1 Connection | M12 × 1 female, 4-pin, D-coded |
| COM 2 Connection | M12 × 1 female, 4-pin, D-coded |
| Supply Voltage IN | 7/8-inch male, 4-pin |
| Supply Voltage OUT | 7/8-inch female, 4-pin |
| I/O Connections | 8 × M12 × 1 female, 5-pin, A-coded |
| Display | Yes, multi-line LCD |
| Display Style | Two-row |
| Housing Material | Nickel-plated die-cast zinc |
| Gasket Material | FKM 75 |
| Housing Shield | Yes |
| Surface Protection | Cu 15 µm / Ni 15 µm |
| Ingress Protection | IP67 |
| Dimensions (H × W × L) | 68 × 37.9 × 224 mm |
| Mounting | 2-hole screw mount |
| Mounting Ground Strap | M4 |
| Ambient Temperature | −5 to 70 °C |
| MTTF at 40 °C | 49 years |
| Approvals / Conformity | CE, UKCA, cULus, ODVA, WEEE, RoHS |
| Supported Web Browsers | Google Chrome, Mozilla Firefox |
| eCl@ss 9.1 | 27-24-26-04 |
| ETIM 6.0 | EC001599 |
Warranty: All items are covered by a 30-day warranty from the date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP Transistor
Full Load Amps 9.0 A
Manufacturer Balluff
Enclosure Type IP67
Part Number BNI006A
Controller Platform EtherNet/IP
Shelf K-43
Model BNI006A
MPN BNI006A
Type I/O Module
