Product Description

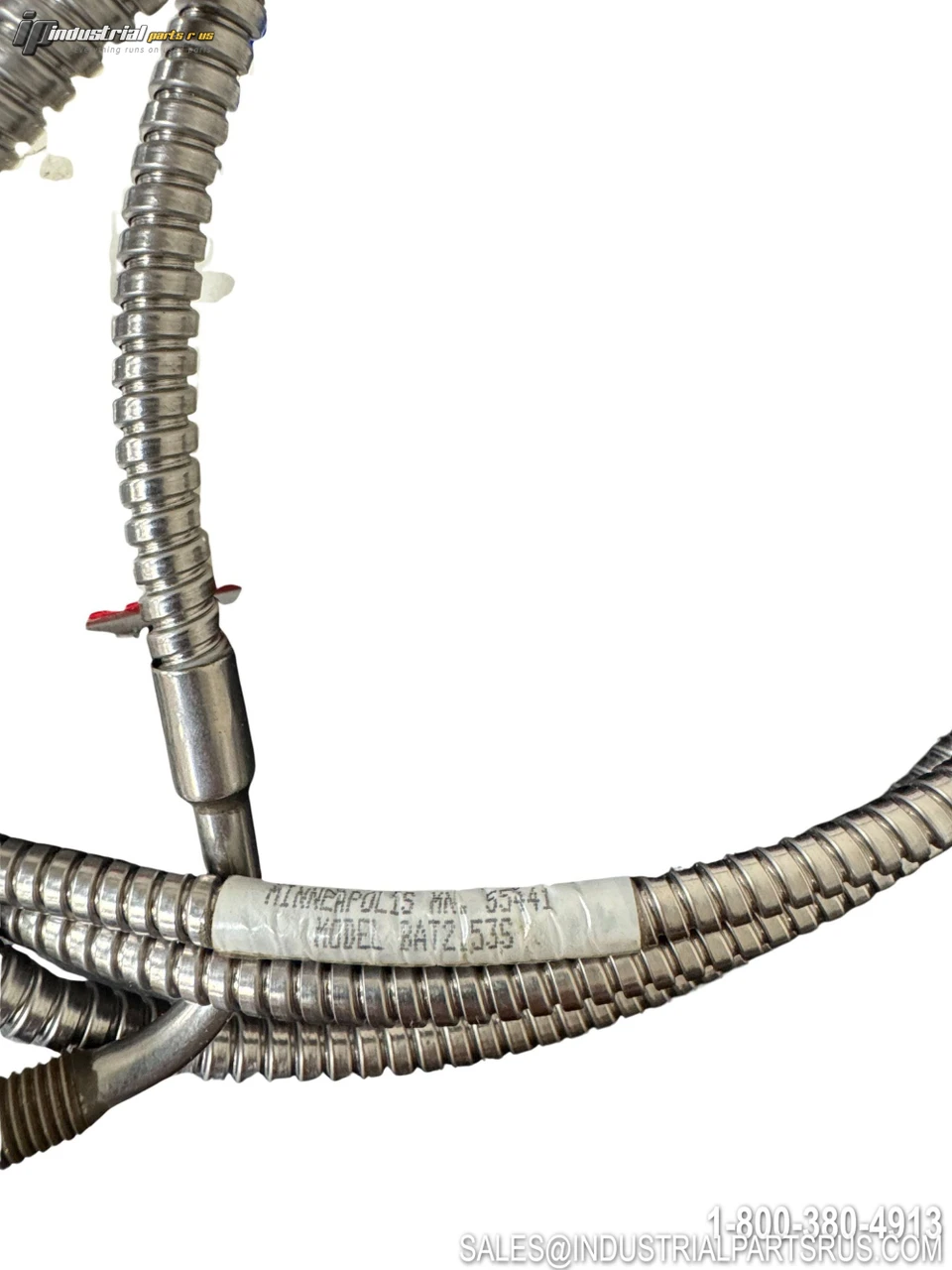

The Banner Engineering BAT2.53S is a heavy-duty bifurcated glass fiber optic cable designed for use with photoelectric fiber optic sensors in demanding industrial environments. Operating in diffuse (reflective) mode, it features a right-angle threaded sensing tip and a stainless steel monocoil sheath that protects against severe shock, vibration, and high ambient temperatures up to 249°C. The 4mm diameter glass fiber bundle measures 36 inches (910mm) in length and is compatible with standard Banner fiber optic amplifiers.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Model / Part Number | BAT2.53S |
| Manufacturer Part Number (Supplier) | 21089 |
| Product Series | BAT Series / Heavy Duty Glass Fiber |
| Sensor Type | Fiber Optic Cable (Bifurcated) |
| Sensing Mode | Diffuse (Reflective) |
| Fiber Type | Glass Fiber Optic |
| Fiber Core Diameter | 4 mm (0.156 in) |
| Fiber Length | 36 in / 910 mm (3 ft) |
| Sensing Tip Orientation | Right-Angle |
| Sensing Tip Style | Threaded (Cylindrical) |
| Sensing End Thread | #5/16-24 |
| Sensing End Material | Brass |
| Sheath Material | Stainless Steel Monocoil |
| Minimum Bending Radius | 25 mm |
| Max Operating Temperature | 249°C (480°F) |
| Construction Materials | Stainless steel, optical glass fiber, PVC, brass, optical-grade epoxy resins |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Sensor Type Bifurcated Glass Fiber Optic Cable
Manufacturer Banner
Part Number BAT2.53S
Shelf K-31
Model BAT2.53S
MPN BAT2.53S
Type Fiber Optic Sensor
