Product Description

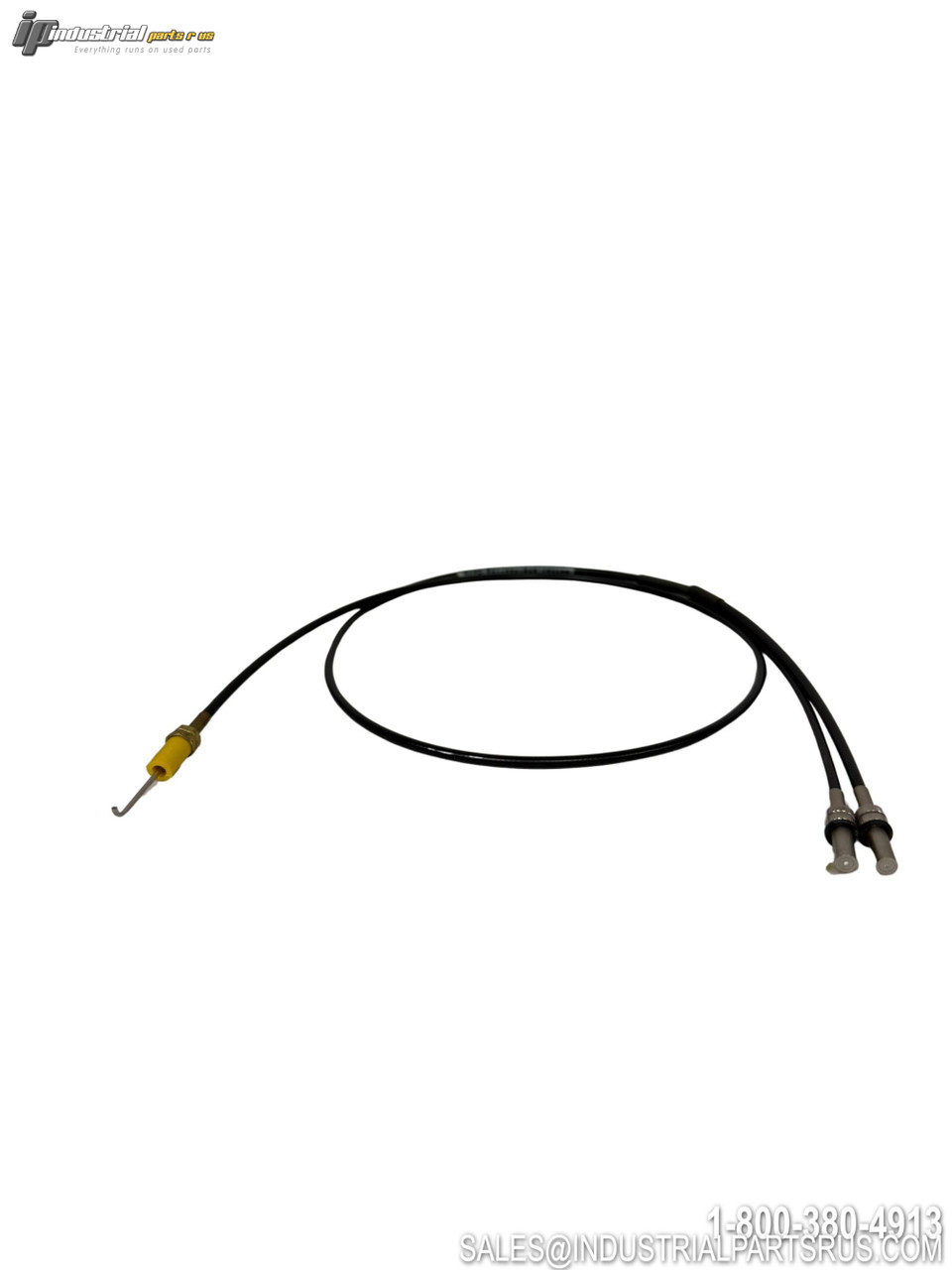

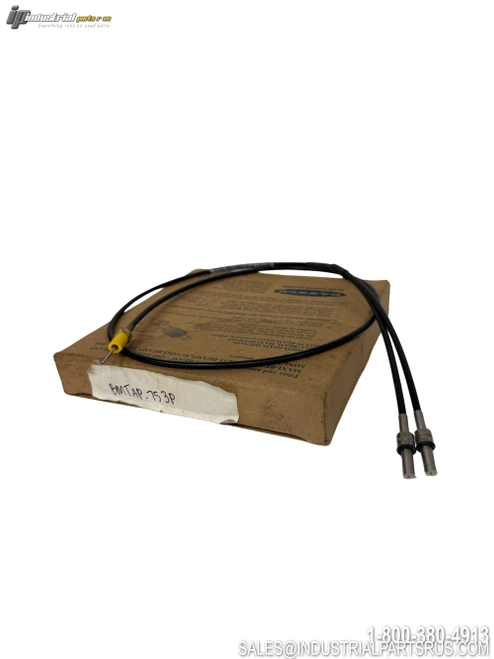

The Banner Engineering BMTAP.753P is a bifurcated glass fiber optic cable assembly designed for diffuse-reflective sensing applications. It features a cylindrical threaded end tip with side/right-angled (90°) beam exit, making it ideal for confined-space and high-temperature sensing environments up to +105°C. The sensing end is constructed of stainless steel with a glass fiber bundle sheathed in stainless steel monocoil and a PVC outer jacket, and it is compatible with Banner's Omni-Beam, Q45, Valu-Beam, Maxi-Beam, Multi-Beam, Econo-Beam, D12, and Mini-Beam fiber optic amplifier series.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner Engineering |
| Model / Part Number | BMTAP.753P |
| Manufacturer SKU / Order Code | 21103 |
| Product Series / Family | Glass Fiber Series (BM Series) |
| Function | Fiber Optic Sensor Cable Assembly |
| Sensing Mode | Diffuse-Reflective |
| Fiber Configuration | Bifurcated |
| Beam Exit / Sensing Direction | Side / Right-Angle (90°) |
| End Tip Shape | Cylindrical (Threaded), Angled Probe |
| Fiber Optic Type | Glass |
| Core Diameter | 1.2 mm |
| Bundle / Fiber Sensing End Size | 1.5 mm |
| Cable Length | 3 ft / 910 mm (0.914 m) |
| Sensing End Material | Stainless Steel |
| Fiber Sheathing / Jacket | PVC over Stainless Steel Monocoil |
| Sensing End Segments | Ferrule → Probe → Angle |
| Retractile | No |
| Flex Relief | No |
| Minimum Bend Radius | 25 mm |
| Max Operating Temperature | +105°C |
| Termination | Terminated (Glass Fiber Sensors) |
| Compatible Sensors | Omni-Beam, Q45, Valu-Beam, Maxi-Beam, Multi-Beam, Econo-Beam, D12, Mini-Beam |
| Equivalent Part Number | BMTAP753P |
| Product Status | Commercialized (Active) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Sensor Type Fiber Optic
Manufacturer Banner
Part Number BMTAP.753P
Shelf P-8
Model BMTAP.753P
MPN BMTAP.753P
Type Fiber Optic Sensor
