Product Description

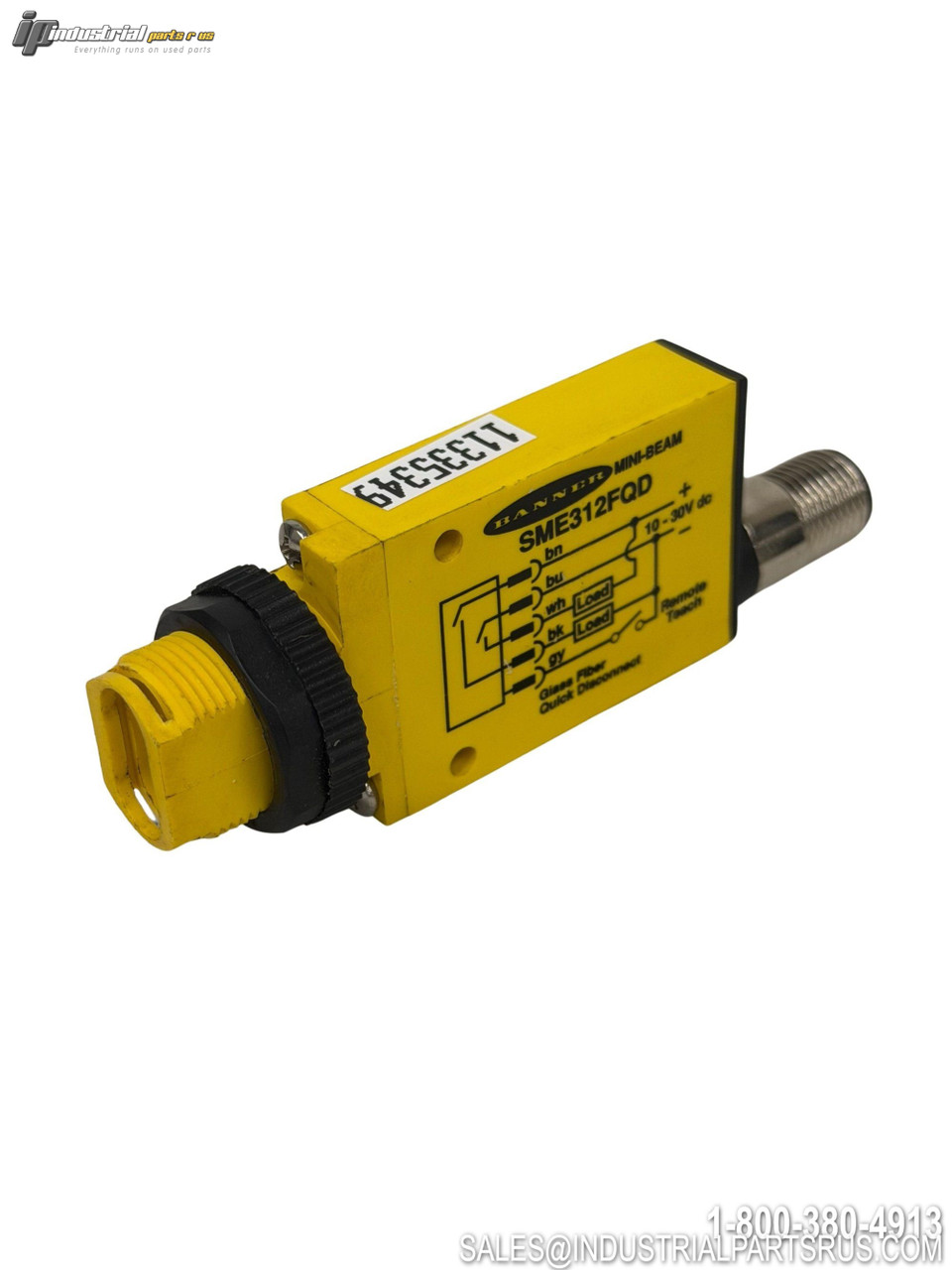

The Banner SME312FQD is a MINI-BEAM Expert series fiber optic amplifier designed for industrial sensing applications. This sensor features infrared 880nm glass fiber optic technology with bipolar output configuration providing both NPN and PNP transistor outputs. It operates on 10-30VDC supply voltage and includes a 4-pin M12 integral quick-disconnect connector for easy installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Banner |
| Model/Part Number | SME312FQD |
| Series | MINI-BEAM Expert |
| Sensor Type | Fiber Optic Amplifier |
| Light Source | Infrared 880nm |
| Fiber Type | Glass Fiber Only |
| Input Voltage | 10-30VDC |
| Output Configuration | Bipolar: 1 NPN, 1 PNP |
| Output Rating | 150mA max at 25°C, derated to 100mA at 70°C |
| Connection Type | 4-pin M12 Integral QD |
| Response Time | 1ms minimum |
| Repeatability | 300µs |
| Operating Temperature | -20°C to +70°C |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Housing Material | Thermoplastic |
| Housing Style | Rectangular w/M18 Mount |
| Maximum Humidity | 90% @ 50°C |
| Power-up Delay | 100ms |
| Adjustments | Potentiometer |
| Sensing Range | Depends on Fiber |
| Banner Part Number | 53714 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type NPN/PNP
Sensor Type Fiber Optic Amplifier
Manufacturer Banner
Enclosure Type NEMA 4X
Part Number SME312FQD
Shelf K-45
Model SME312FQD
MPN SME312FQD
Type Fiber Optic Sensor
