Product Description

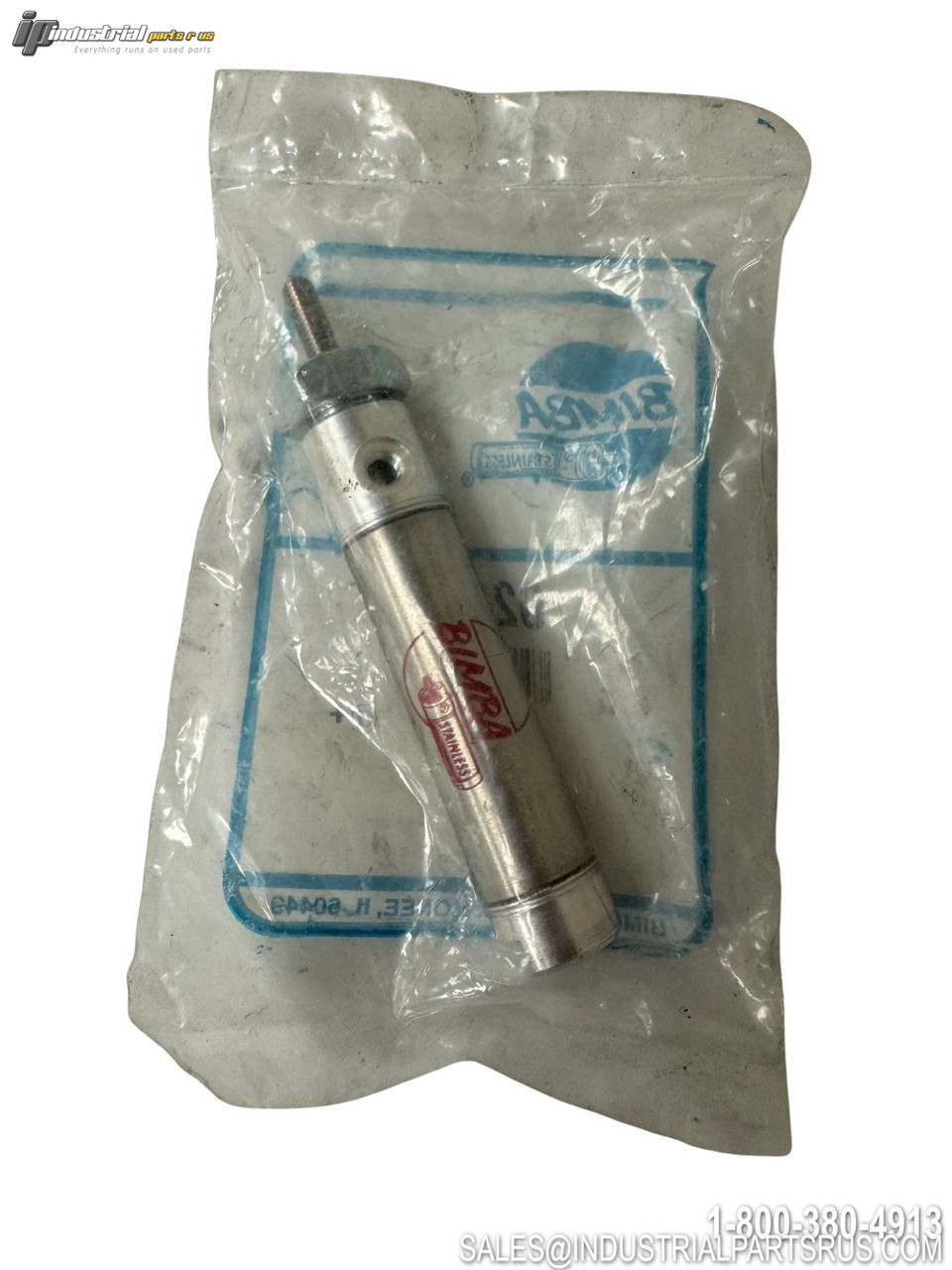

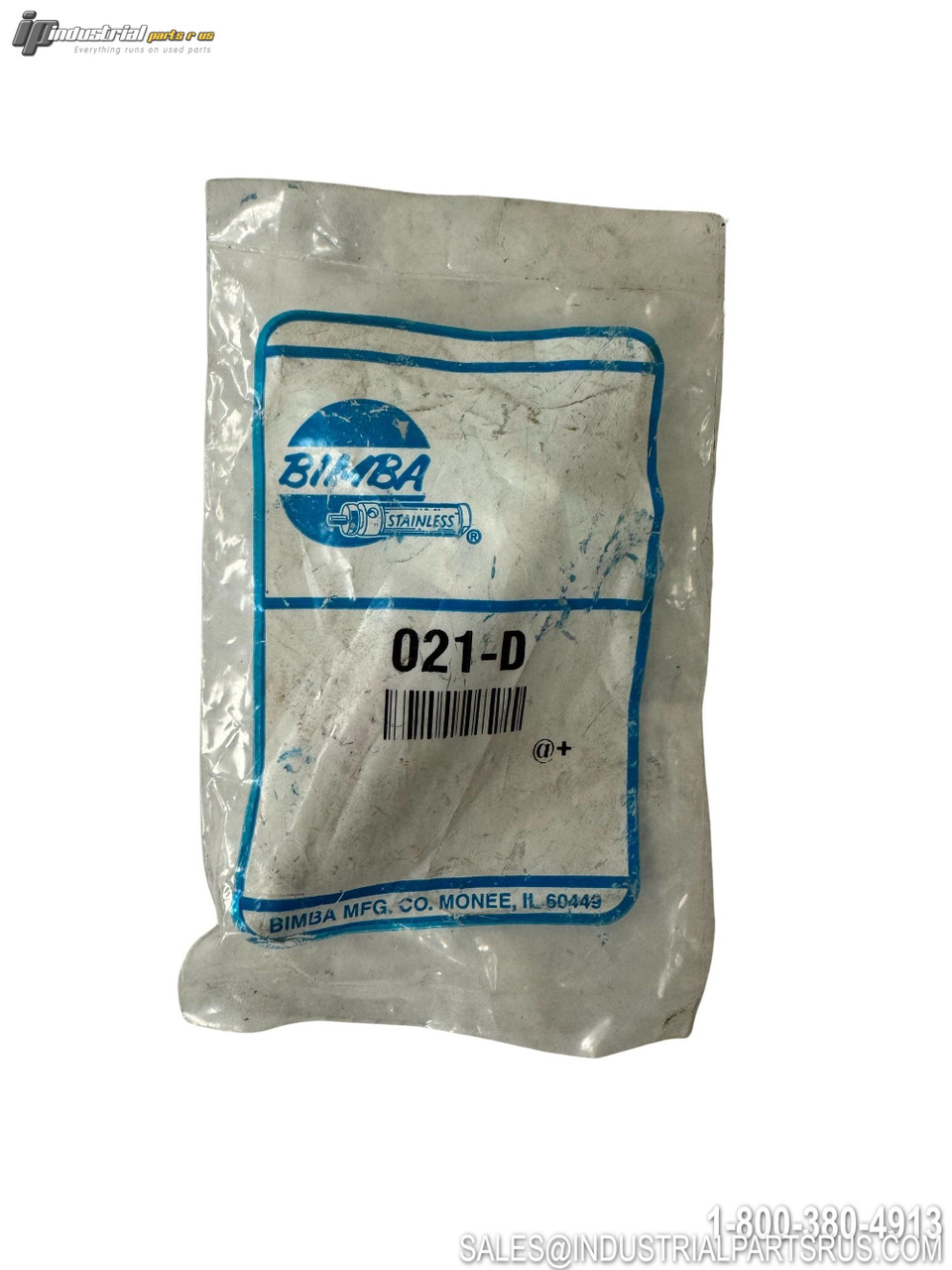

The Bimba 021-D is a double-acting Original Line pneumatic air cylinder from IMI Bimba's 02 series, featuring a 9/16" bore diameter and 1" stroke length. It is designed for front nose mounting and utilizes a stainless steel piston rod with standard #10-32 UNF-2A male threaded rod end and 7/16-20 threaded mounting nut. The cylinder is factory pre-lubricated with a permanent semi-synthetic grease, requires no additional lubrication during its service life, and is rated for up to 250 PSI maximum operating pressure. Suitable media is compressed air.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bimba (IMI Bimba) |
| Model / Part Number | 021-D |
| Product Series | Original Line Air Cylinder Series – 02 Series |
| Cylinder Type | Double-Acting, Air Return |
| Bore Diameter | 9/16" (0.5625 in) |
| Stroke Length | 1" (1.000 in) |
| Mounting Style | Front Nose Mount |
| Port Size / Thread | #10-32 (2 ports) |
| Rod Thread | #10-32 UNF-2A (male) |
| Mounting Nut Thread | 7/16-20 |
| Rod Material | Stainless Steel (Carbon steel standard; SS standard on this bore/nose mount) |
| Max Operating Pressure | 250 PSI |
| Operating Temperature Range | -20°F to +200°F (-28°C to +93°C) |
| Cushioning | None |
| Bumper | No |
| Magnetic Piston | No (Standard 021-D; see M-021-D for magnetic version) |
| Rod Wiper | No |
| Rod Style | Round |
| Repairable | Non-Repairable |
| Lubrication | Permanent factory pre-lubricated (semi-synthetic grease); no additional lubrication required |
| Weight | 0.10 lbs (approx.) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Bimba
Part Number 021-D
Shelf B-7
Bore Diameter 9/16 in
Model 021-D
MPN 021-D
Type Pneumatic Cylinder
