Product Description

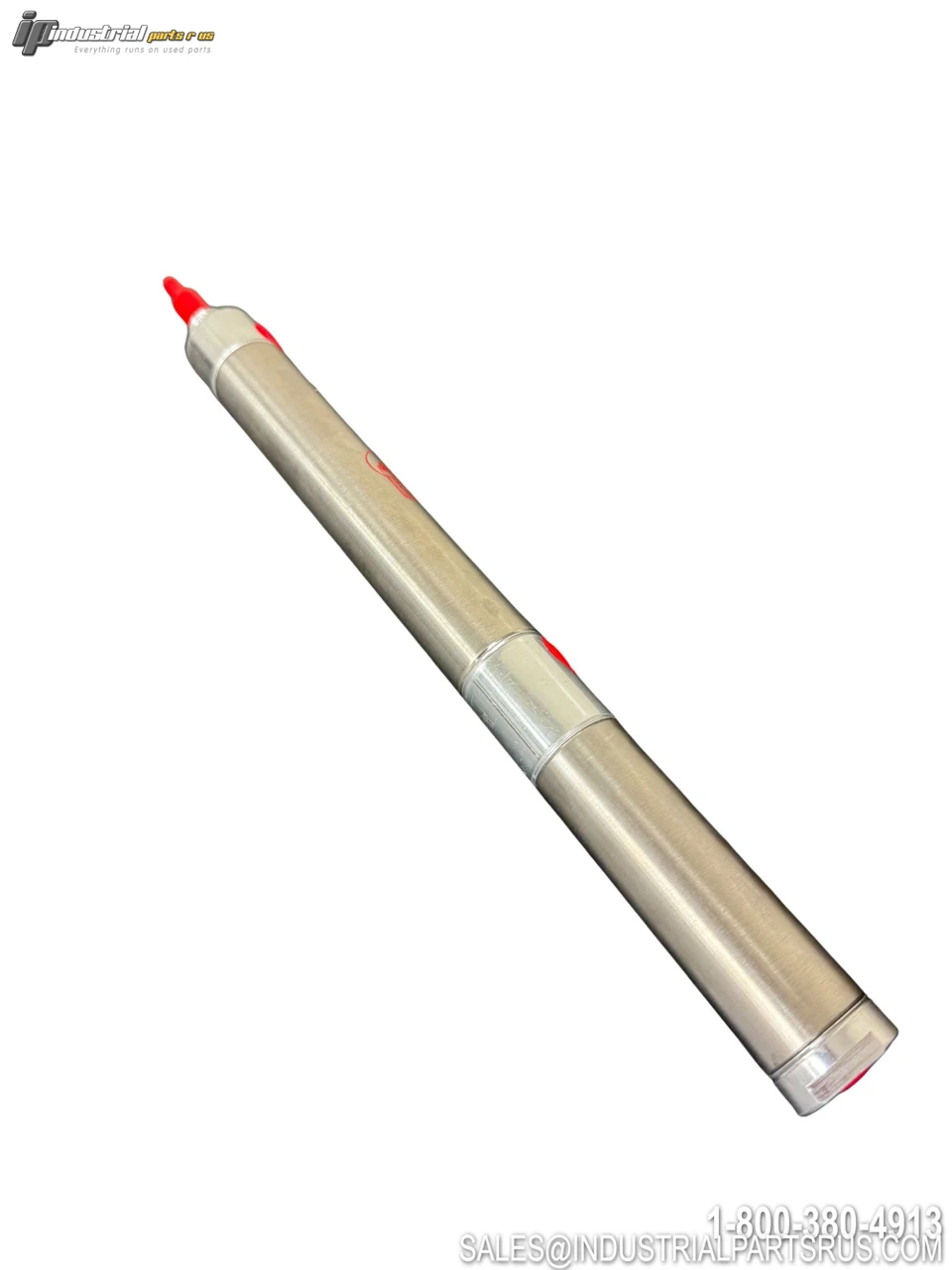

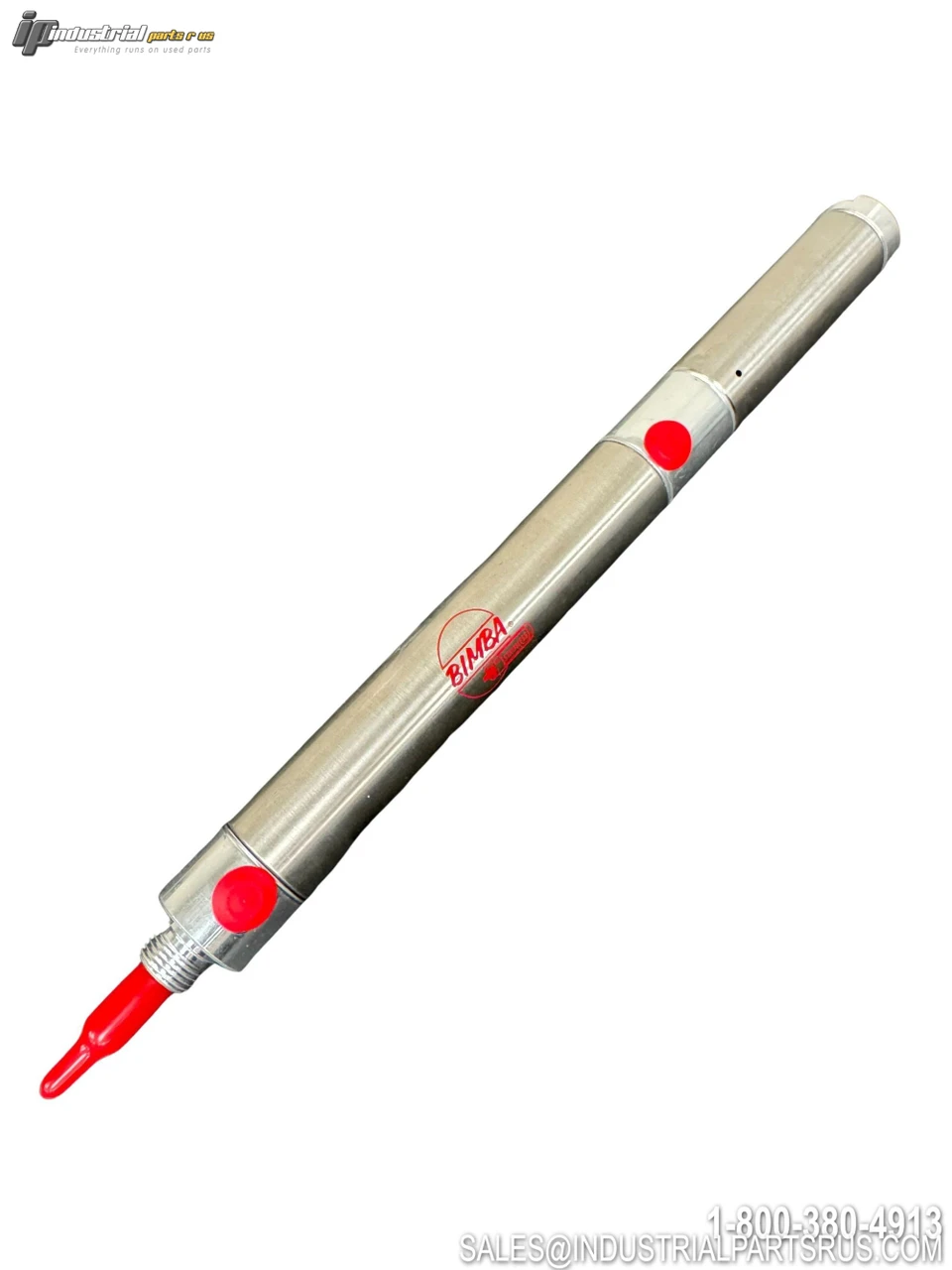

The Bimba M-092/2.5-D is an Original Line 3-Position double-acting pneumatic air cylinder featuring a built-in magnetic piston for position sensing. Part of the 09-series (1-1/16" bore) 3-Position family, this non-repairable, stainless steel body cylinder provides three distinct stopping positions within a single actuator — Stroke A of 2" and Stroke B of 2.5" for a combined total stroke of 4.5". It incorporates permanent grease lubrication, aluminum end caps, Buna-N seals, and a 5/16-24 UNF-2A male threaded stainless steel rod, and is rated to 250 PSI maximum air pressure.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bimba |
| Model / Part Number | M-092/2.5-D |
| Product Series | Original Line 3-Position Series |
| Sub-Range | 09 Series (1-1/16" bore family) |
| Cylinder Type | 3-Position Double-Acting Pneumatic (Air Return) |
| Bore Diameter | 1-1/16" (1.0625") |
| Stroke A Length | 2.000" |
| Stroke B Length | 2.500" |
| Total Stroke Length (A+B) | 4.500" |
| Mounting Style | Front Nose (D) |
| Magnetic Piston | Yes (M prefix) |
| Number of Positions | 3 |
| Maximum Pressure | 250 PSI |
| Pneumatic Ports | 3 x 1/8" NPT |
| Rod Thread | 5/16-24 UNF-2A (Male) |
| Mounting Nut Thread | 5/8-18 Threaded |
| Rod Material | Stainless Steel |
| Body Material | Stainless Steel |
| End Cap Material | Aluminum |
| Seal Material | Buna-N |
| Lubrication | Permanent Semi-Synthetic Grease (no field lubrication required) |
| Design | Non-Repairable |
| Operating Temperature | -20°F to +200°F (-28°C to +93°C) |
| Suitable Media | Compressed Air |
| Power Factor (Bore Area) | 0.9 sq. in. |
| Rod Style | Round, Threaded |
| Bumpers / Cushioning | None |
| Rod Wiper | No |
