Product Description

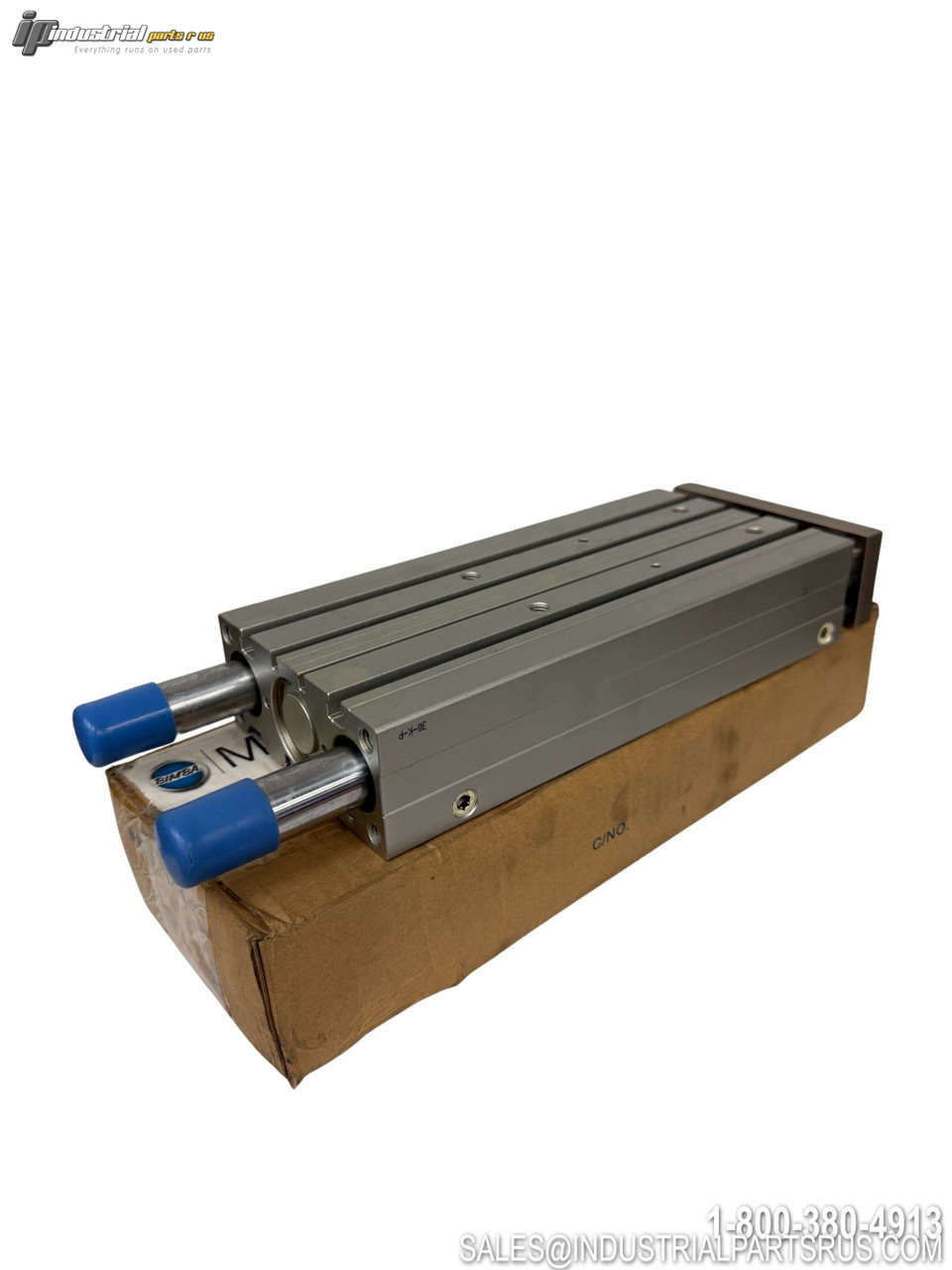

The Bimba MTCM-32X200-S-T is a double-acting extruded thruster pneumatic cylinder from the MTCM series featuring a 32mm bore diameter and 200mm stroke length. This precision linear actuator incorporates a bronze bushing for smooth operation, built-in magnets for position sensing compatibility, and bumper cushioning for reliable performance in industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bimba |
| Model/Part Number | MTCM-32X200-S-T |
| Series | MTCM Extruded Thruster |
| Bore Diameter | 32mm |
| Stroke Length | 200mm |
| Action Type | Double Acting |
| Bushing Type | Bronze Bushing |
| Port Size | 1/8" NPT |
| Port Quantity | 2 |
| Pressure Range | 18-142 psi |
| Proof Pressure | 213 psi |
| Temperature Range | 23-158°F (-5 to +70°C) |
| Cushion Type | Bumper |
| Built-in Magnet | Yes |
| Lubrication Required | No |
| Fluid Type | Air (Clean/Dry) |
| Non-Rotate Tolerance | 0.08° |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Bimba
Part Number MTCM-32X200-S-T
Shelf K-61
Bore Diameter 32 mm
Model MTCM-32X200-S-T
MPN MTCM-32X200-S-T
Type Pneumatic Cylinder
