Product Description

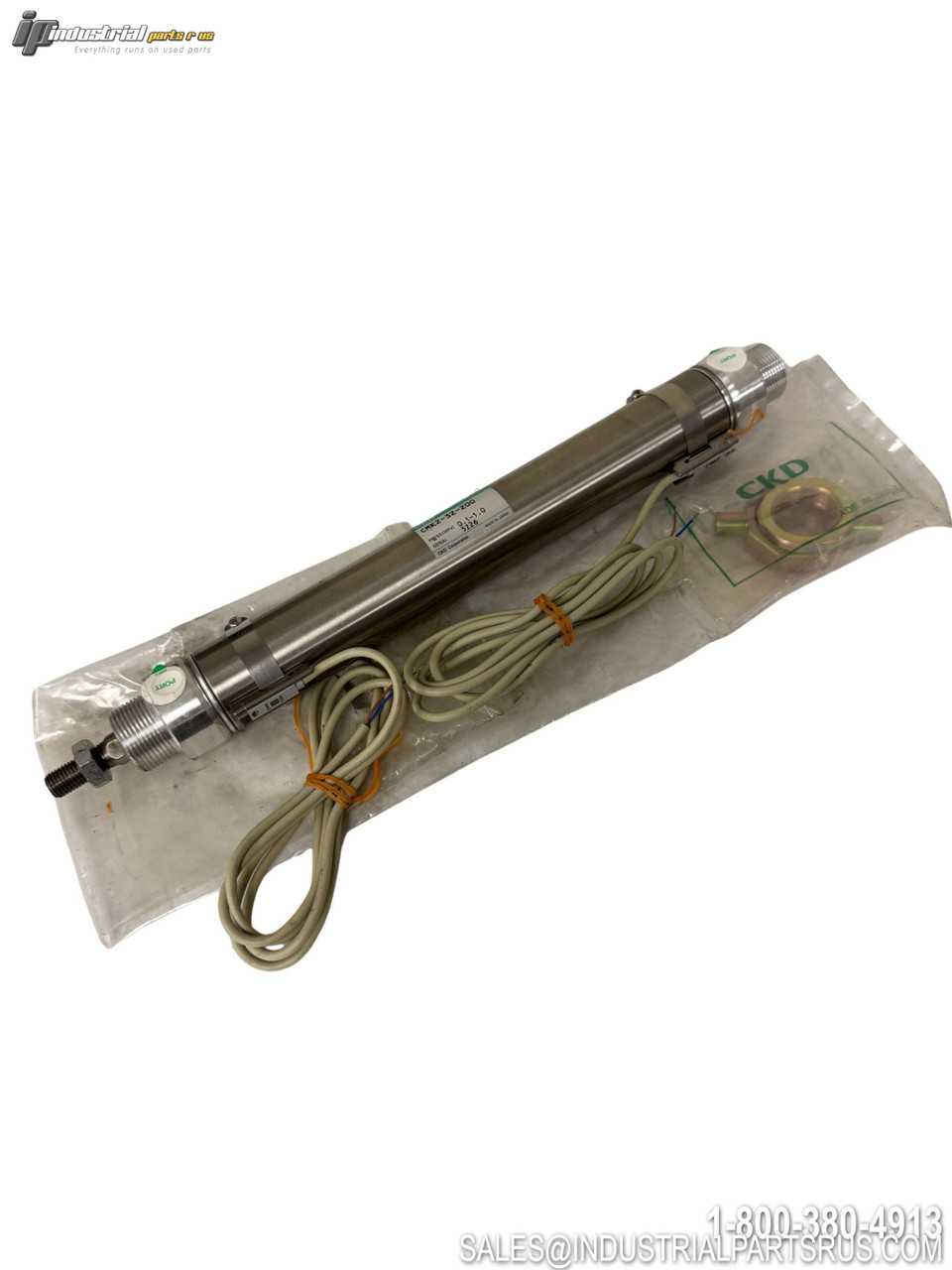

The CKD CMK2-32-200 is a medium bore size pneumatic cylinder designed for industrial automation and fluid control applications. This double acting, single rod cylinder features high corrosion resistance and long service life, making it ideal for general purpose pneumatic applications requiring reliable compressed air operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | CKD |
| Model/Part Number | CMK2-32-200 |
| Product Type | Pneumatic Cylinder |
| Bore Diameter | 32mm |
| Stroke Length | 200mm |
| Cylinder Action | Double Acting |
| Working Fluid | Compressed Air |
| Max Operating Pressure | 1.0 MPa |
| Min Working Pressure | 0.1 MPa |
| Proof Pressure | 1.6 MPa |
| Port Size | Rc1/8 |
| Ambient Temperature | -10 to 60°C (no freezing) |
| Working Piston Speed | 50 to 500 mm/s |
| Cushion Type | Rubber Cushion |
| Lubrication | Not Available |
| Allowable Energy Absorption | 0.424 J |
| Stroke Tolerance | +2.0/0 mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer CKD
Part Number CMK2-32-200
Shelf B-16
Bore Diameter 32 mm
Model CMK2-32-200
MPN CMK2-32-200
Type Pneumatic Cylinder
