Product Description

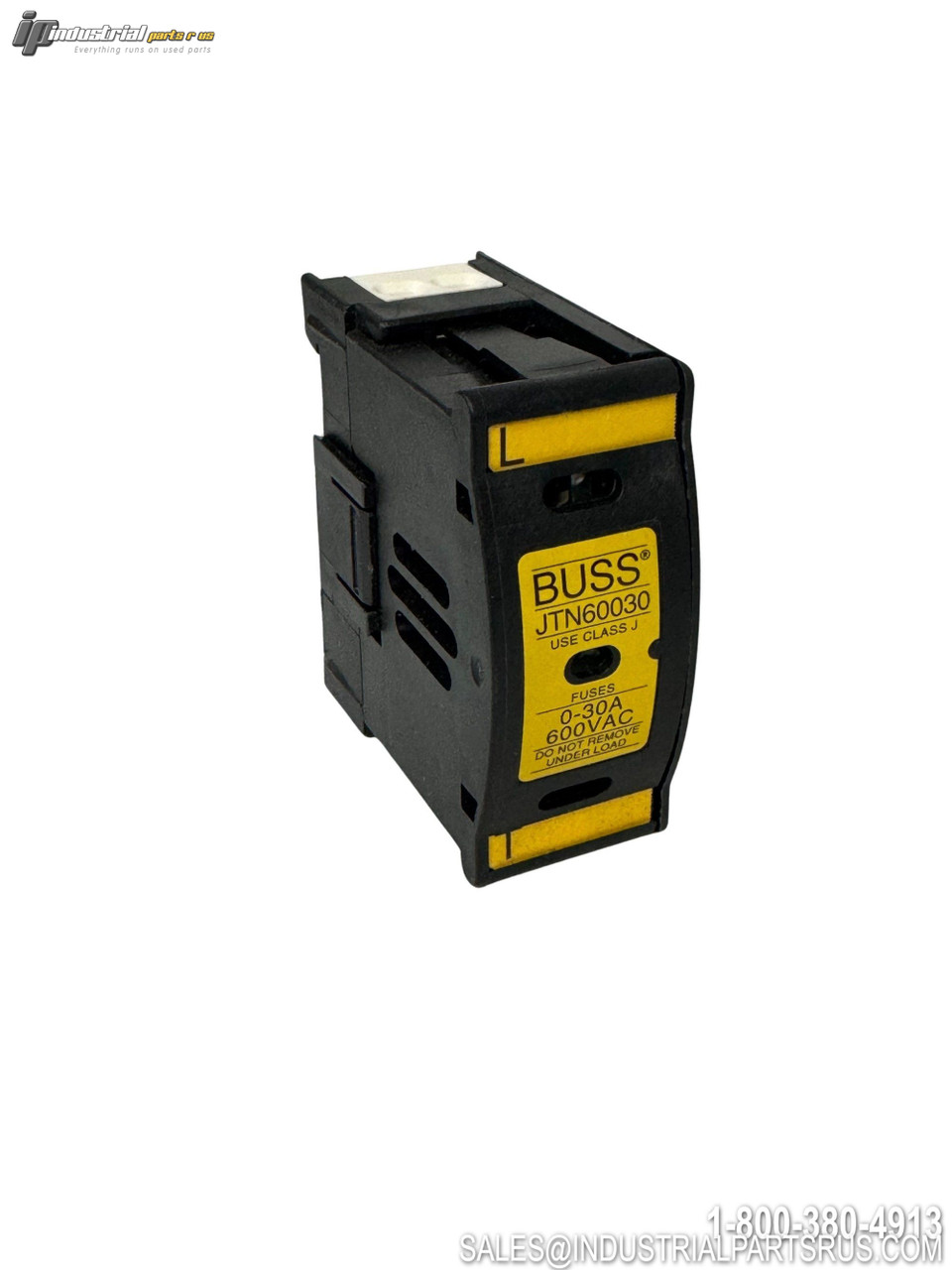

The Bussman JTN60030 is a finger-safe Class J fuse holder designed for industrial control applications, process controls, and small HP VFDs. This indicating model features a neon indicator that illuminates when the fuse opens, providing visual confirmation of fuse status. The unit is constructed with thermoplastic material meeting UL 94V0 flammability rating and is rated for touch-safe protection to IP20.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Bussman |
| Model/Part Number | JTN60030 |
| Series | JT |
| Amperage Rating | 30A |
| Voltage Rating | 600VAC/600VDC |
| Fuse Class | Class J |
| Number of Poles | 1 |
| Terminal Type | Dual Port Box Lug |
| Wire Size | #18 to #8 AWG |
| Terminal Torque | 20 lb-in |
| Mounting Type | 35mm DIN Rail |
| Touch Safe Rating | IP20 |
| Indicator | Yes - Neon |
| Indication Voltage | 90VAC/115VDC minimum |
| Fuse Length | 2.25 inches |
| Fuse Diameter | 0.81 inches |
| Material | Thermoplastic UL 94V0 |
| Terminal Material | Tin Plated Copper Alloy |
| Temperature Rating | 75°C |
| Short Circuit Rating | 200,000A RMS / 300,000A with LPJ_SP fuses |
| Dimensions (LxWxH) | 2.52" x 1.23" x 2.75" |
| For Use With Fuses | LPJ, JKS Series Class J |
| UL Listed | UL 512 |
| CSA Certified | Class 6225-01 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
