Product Description

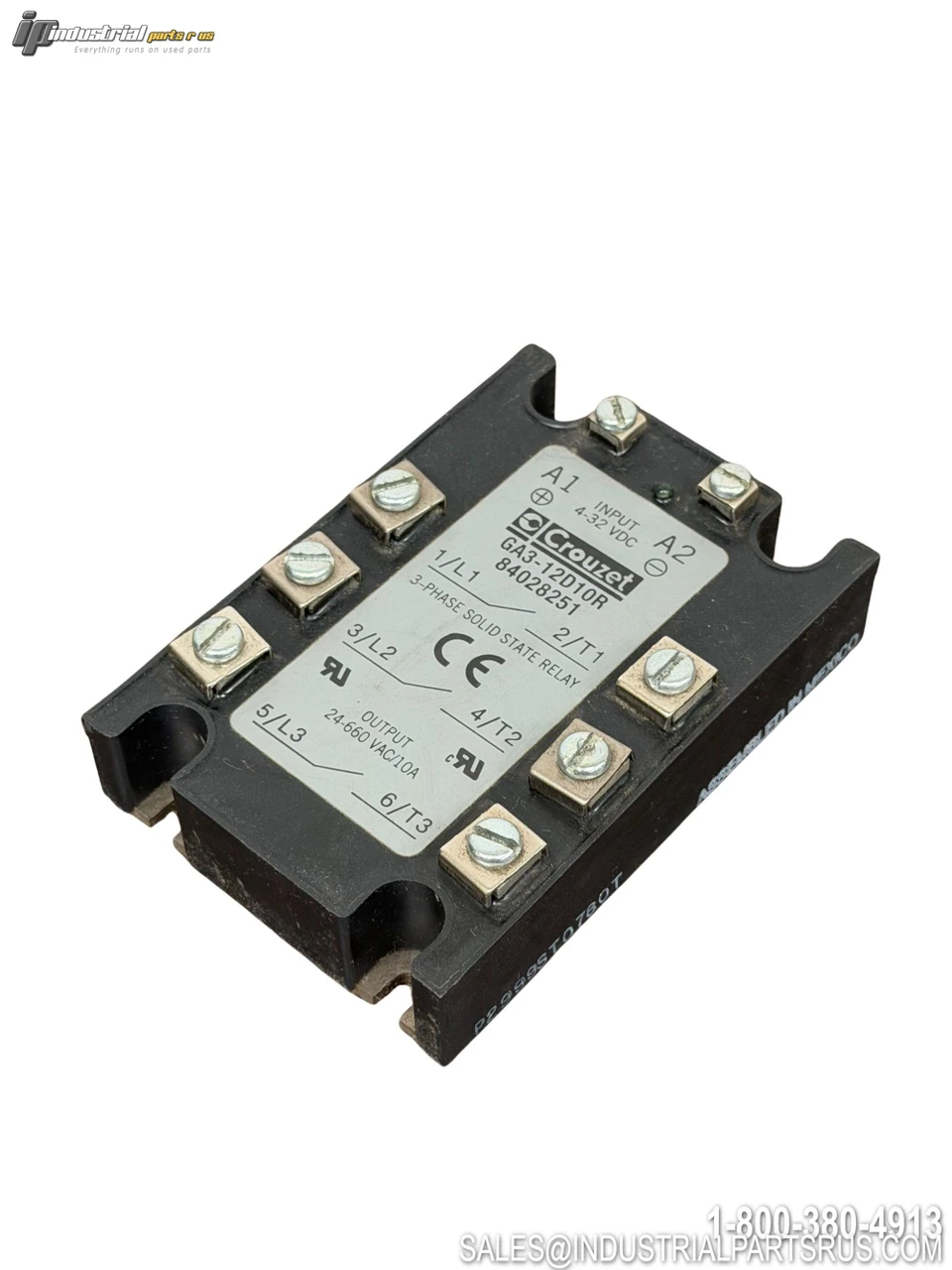

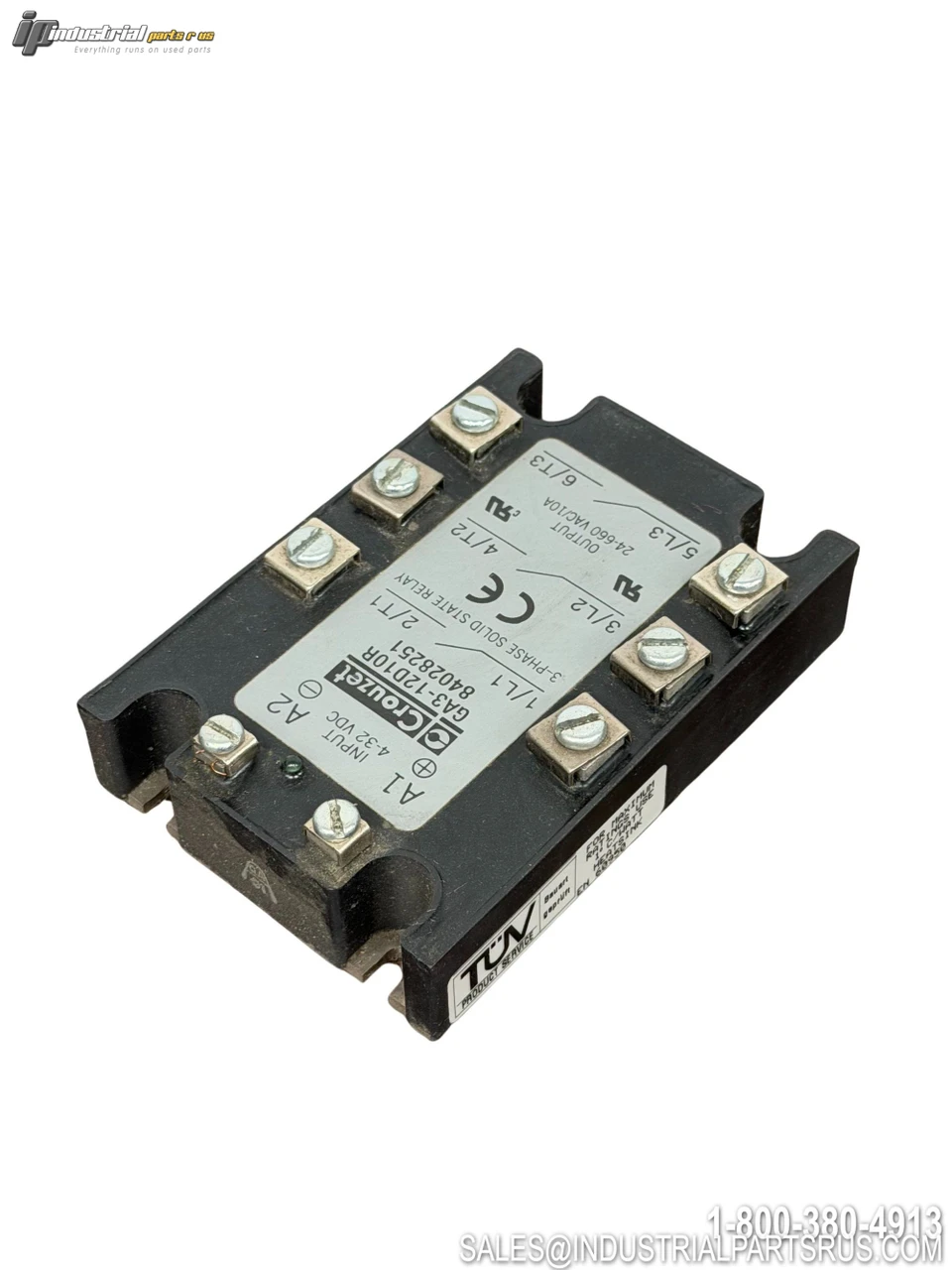

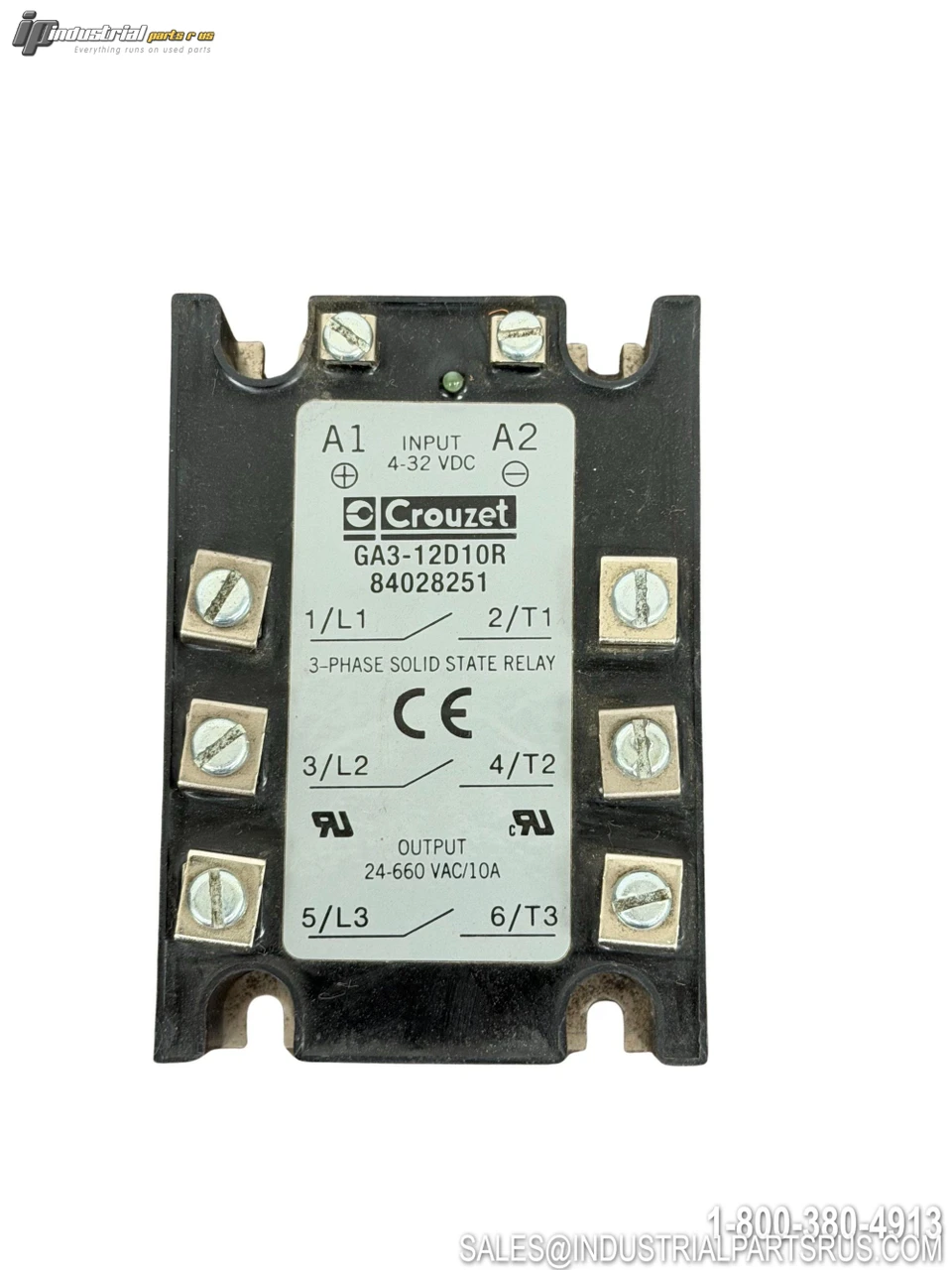

The Crouzet GA3-12D10R is a 3-phase solid state relay designed for switching three-phase AC loads. The relay features a 4-32VDC control input and a 24-660VAC output rated at 10A. It uses separate line and load terminals for all three phases and screw terminals for the control input. Part number 84028251 is shown on the unit.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crouzet |
| Model | GA3-12D10R |
| Part Number | 84028251 |
| Product Type | Solid State Relay |
| Phase | 3-Phase |
| Control Input | 4-32VDC |
| Input Terminals | A1 (+) / A2 (-) |
| Output Voltage | 24-660VAC |
| Output Current | 10A |
| Line Terminals | 1/L1, 3/L2, 5/L3 |
| Load Terminals | 2/T1, 4/T2, 6/T3 |
| Terminal Type | Screw Terminal |
| Indicator | LED Indicator |
| Mounting | Panel / Heat Sink Mount |
| Certification Markings | CE, UL Recognized |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type AC (Thyristor/SCR)
Manufacturer Crouzet
Part Number GA3-12D10R
Shelf C-11 Tub 1
Model GA3-12D10R
MPN GA3-12D10R
Type Solid State Relay
