Product Description

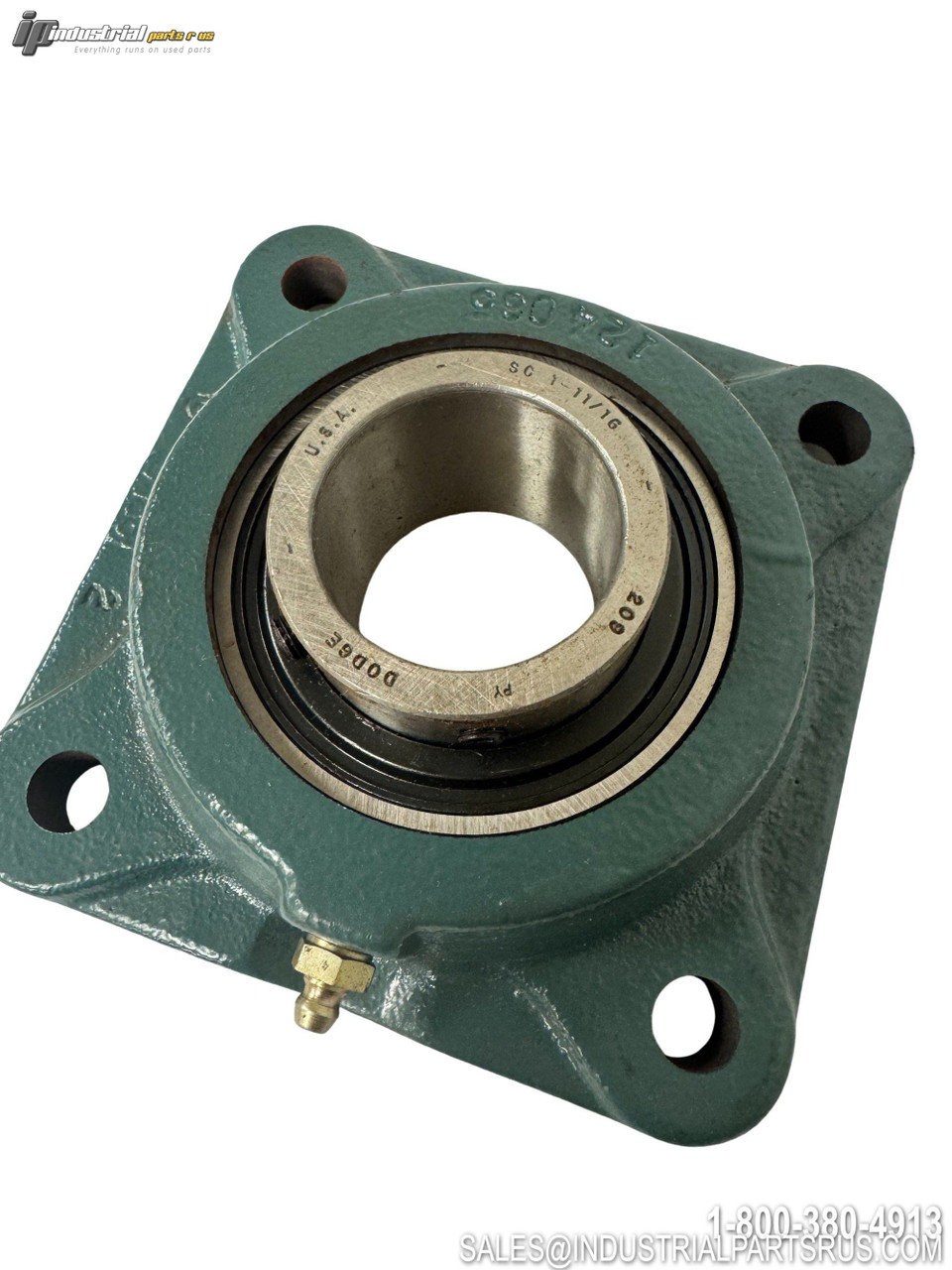

The Dodge F4B-SC-111 is a normal duty 4-bolt flange mount ball bearing unit designed for general purpose industrial applications. This bearing features a 1-11/16 inch bore with set screw locking mechanism and is part of the reliable 209 series.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dodge |
| Model/Part Number | F4B-SC-111 |
| Manufacturer Part Number | 124211 |
| Bearing Series | 209 |
| Bore Diameter | 1-11/16 in (1.688 in / 42.875 mm) |
| Housing Type | 4-Bolt Square Flange |
| Bolt Center-to-Center | 4.125 in (4.13 in / 104.78 mm) |
| Overall Length/Diameter | 5.38 in |
| Overall Height | 5.38 in |
| Overall Depth | 1.99 in |
| Bore Length | 1.719 in (43.663 mm) |
| Locking Device | Set Screw (65° angle) |
| Bearing Type | Ball Bearing |
| Housing Material | Cast Iron |
| Bearing Material | Steel |
| Seal Type | Single Lip Contact, Nitrile Rubber |
| Dynamic Load Rating | 7891 lb |
| Static Load Rating | 4906 lb |
| Maximum Speed | 5000 rpm |
| Operating Temperature Range | 225 to 400°F |
| Finish | Powder Coated |
| Duty Rating | Normal Duty |
| Expansion Type | Non-Expansion (Fixed) |
| Number of Mounting Holes | 4 |
| Weight | 6 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Material 52100 Bearing Steel
Manufacturer Dodge
Part Number F4B-SC-111
Shelf A-3
Bore Diameter 1-11/16 in
Model F4B-SC-111
MPN F4B-SC-111
Type Pillow Block
