Product Description

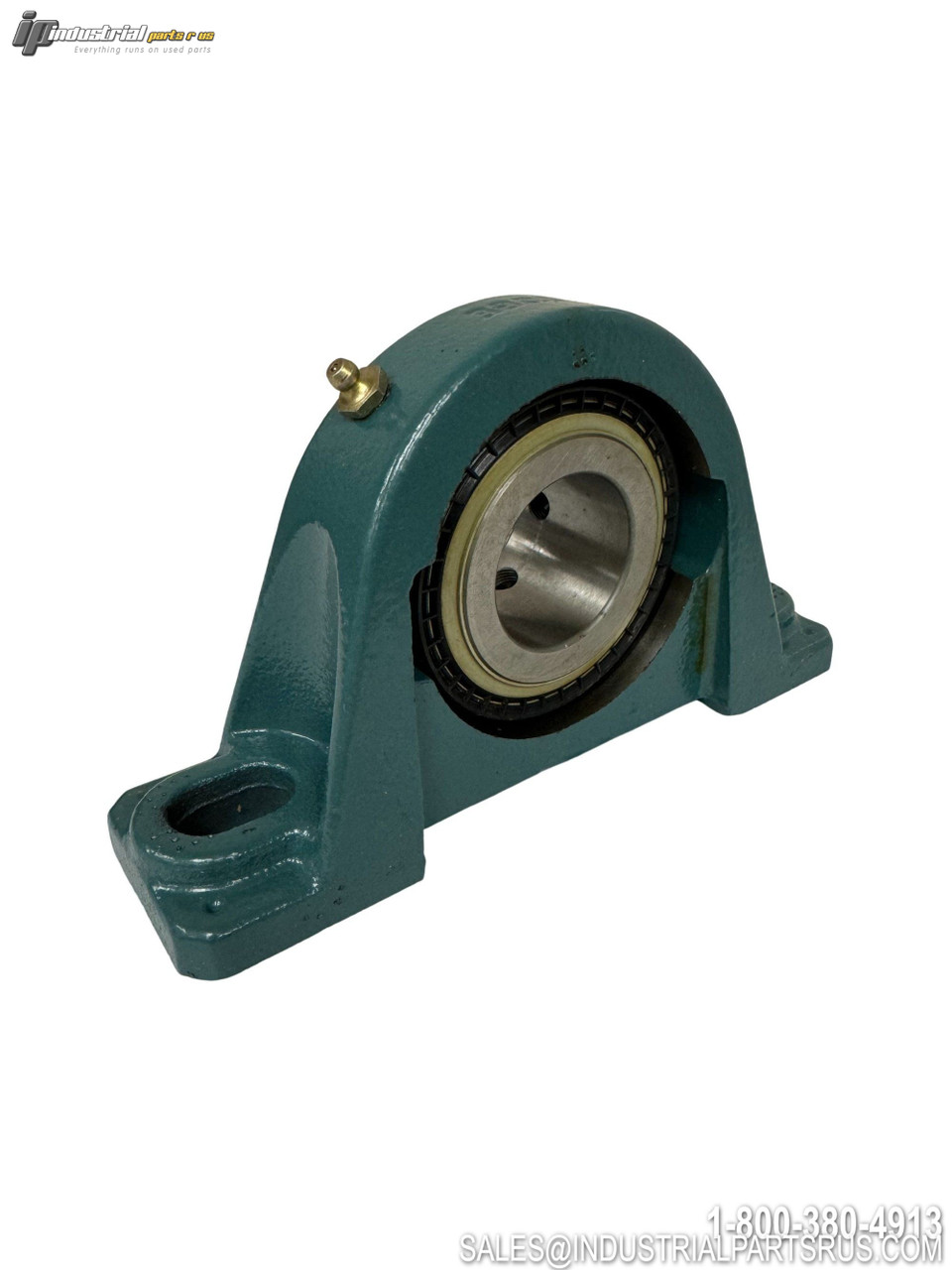

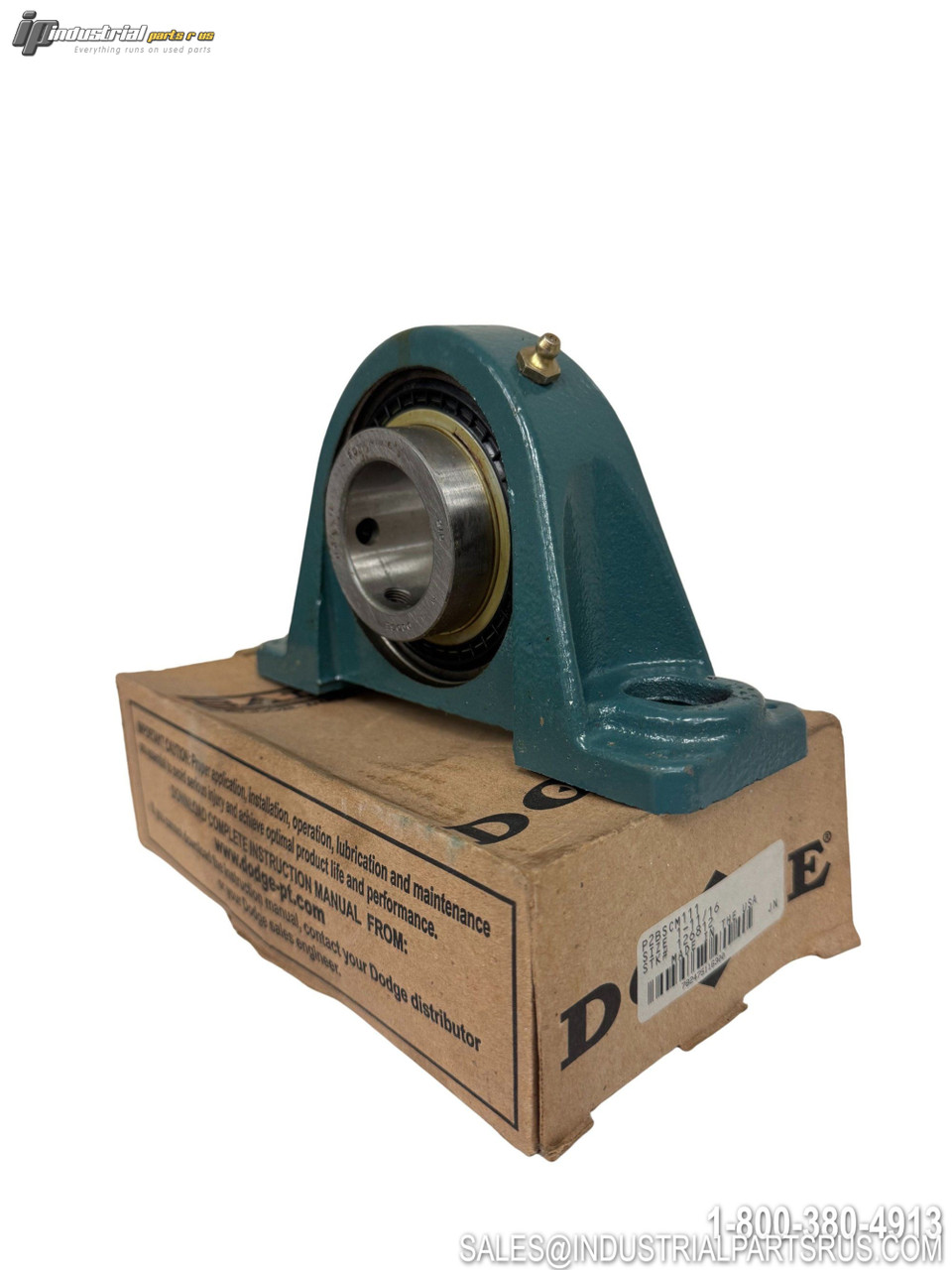

The Dodge P2BSCM111 is a two-bolt pillow block ball bearing unit designed for medium duty applications. This bearing features a 1-11/16 inch bore diameter and belongs to the 210 series with a set screw locking mechanism for secure shaft attachment.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dodge |
| Model/Part Number | P2BSCM111 |
| Manufacturer Part Number | 126812 |
| Bore Diameter | 1-11/16 in (42.862mm) |
| Series | 210 |
| Duty Type | Medium Duty |
| Mounting Type | 2-Bolt Base |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
| Seal Type | Single Lip Contact |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Overall Length | 8.12 in |
| Overall Width | 1.94 in |
| Overall Height | 4.53 in |
| Bolt Center-to-Center | 6.0 to 6.68 in |
| Base to Bore Centerline | 2-1/4 in |
| Base Width | 2-1/4 in |
| Dynamic Load Capacity | 7891 lbf |
| Static Load Capacity | 5213 lbf |
| Maximum RPM | 3000-4500 rpm |
| Temperature Range | 225 to 400°F |
| Lubrication | Grease (Unirex N2) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Dodge
Part Number P2BSCM111
Shelf GS-34
Model P2BSCM111
MPN P2BSCM111
Type Pillow Block
