Product Description

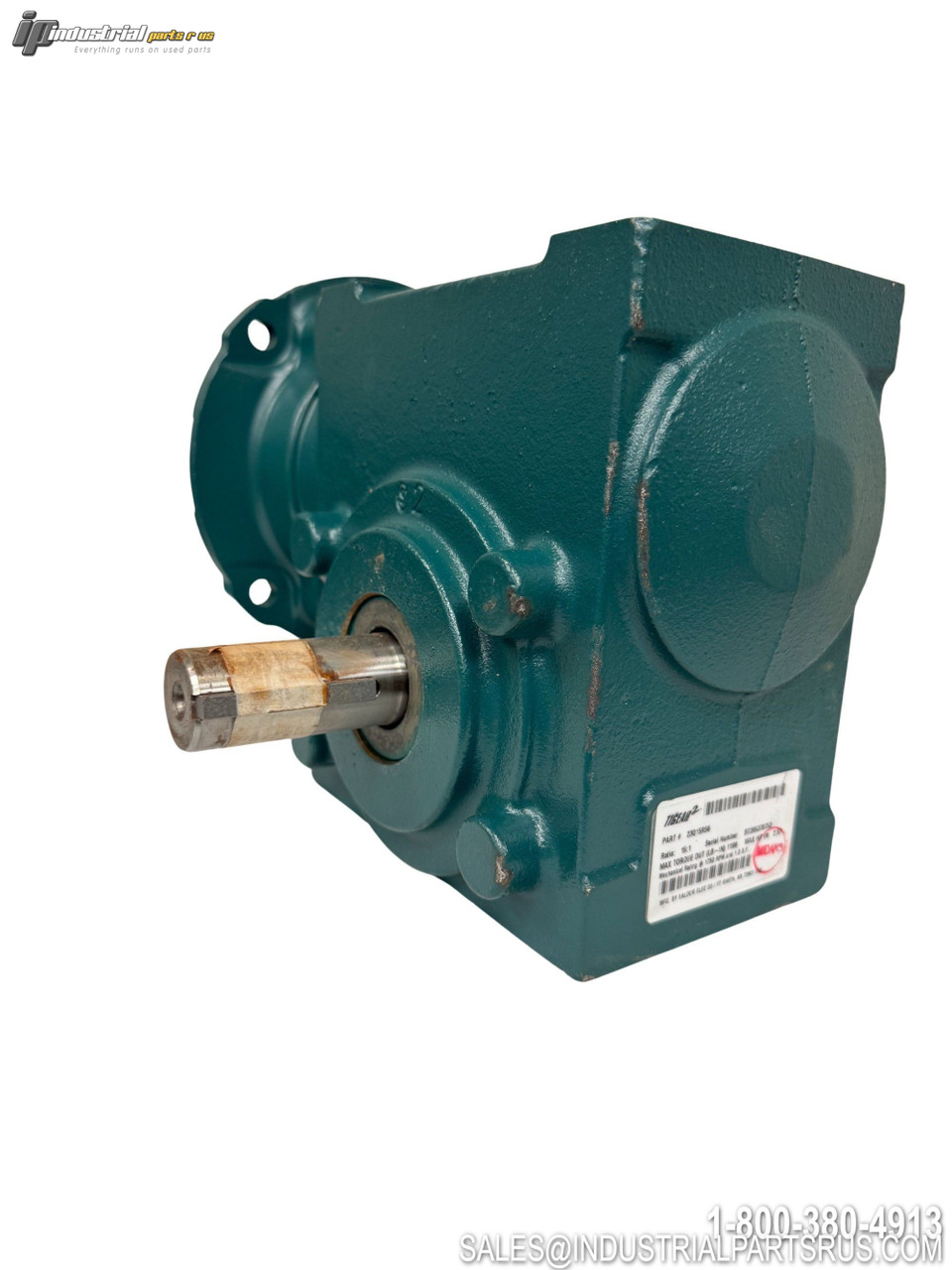

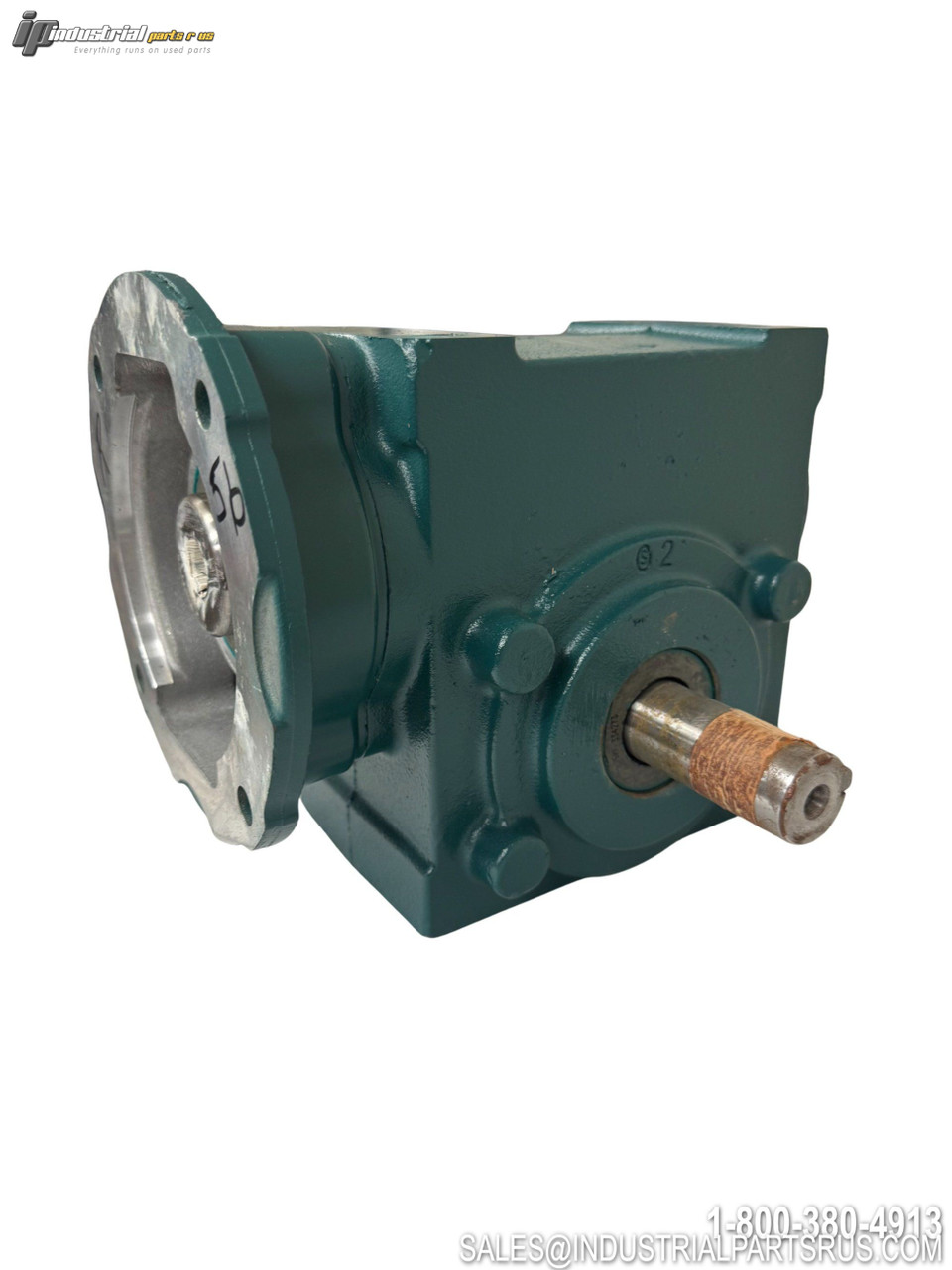

The Dodge Tigear-2 23Q15R56 is a right-angle single-stage worm gear speed reducer featuring a quill-style C-Face input for direct NEMA 56C motor mounting and a right-hand solid output shaft. With a 15:1 gear ratio and 2.3" center distance, this size 23 unit delivers 1,105 in-lb of output torque in a totally enclosed, ventless, maintenance-free design factory-filled with synthetic lubricant. The rugged Class 30 gray iron housing is suitable for a wide range of industrial power transmission applications including conveyors, material handling, and packaging equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dodge / Tigear-2 (Baldor) |

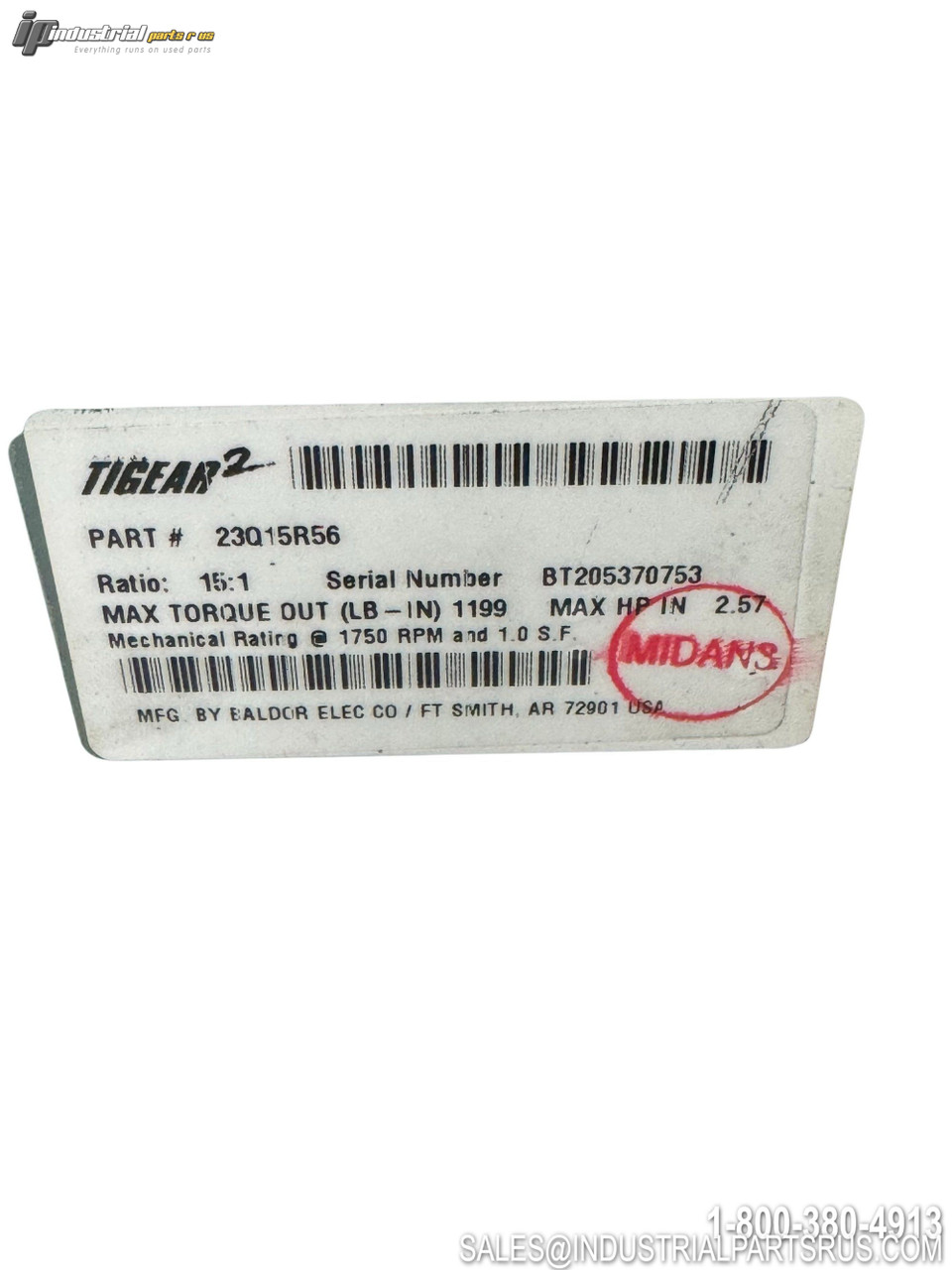

| Model / Part Number | 23Q15R56 |
| Product Series | Tigear-2 |
| Reducer Type | Right Angle Worm Gear Speed Reducer |
| Gear Ratio | 15:1 |
| Unit Size | 23 |
| Center Distance | 2.3 in (2.31 in) |

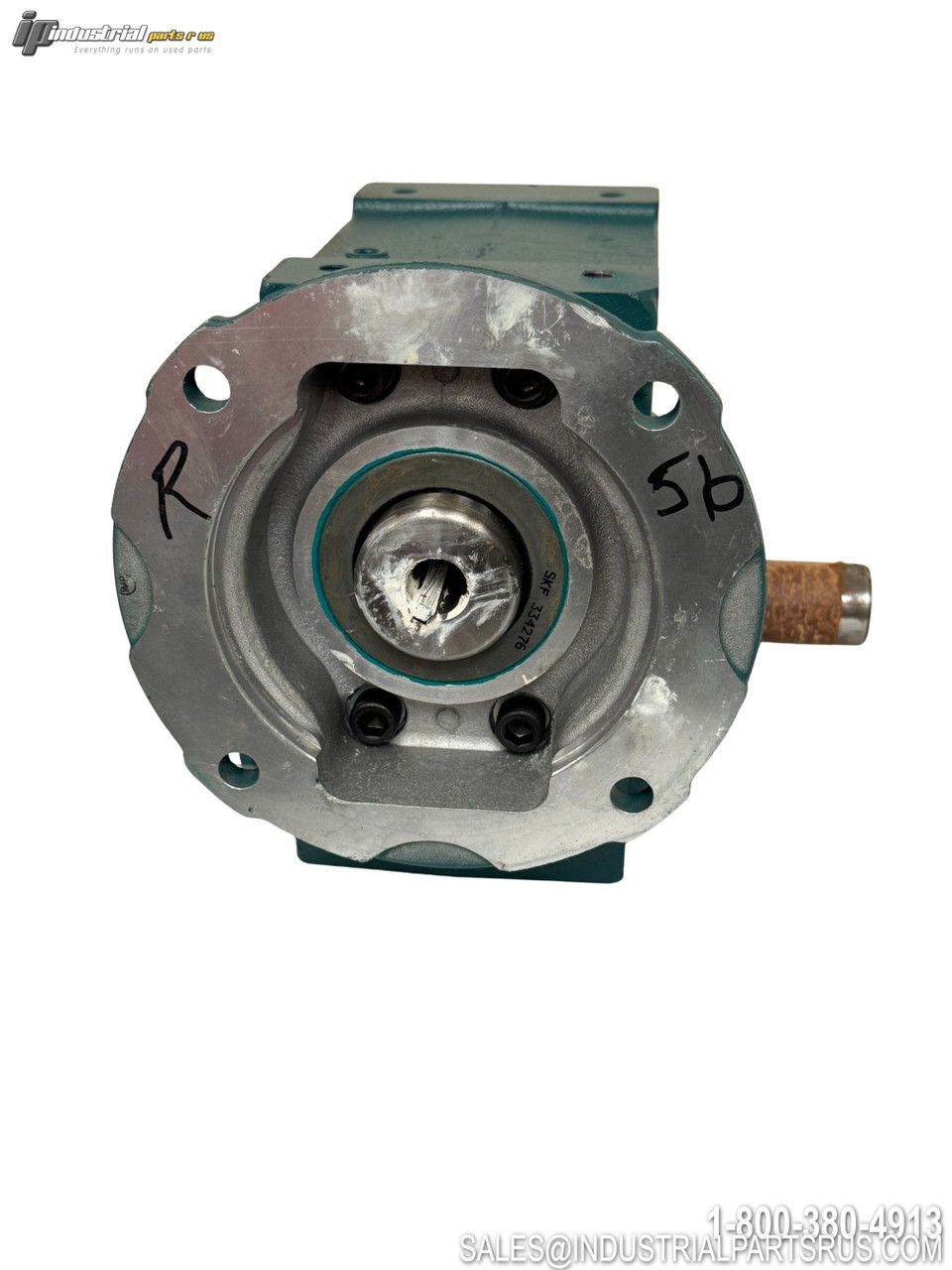

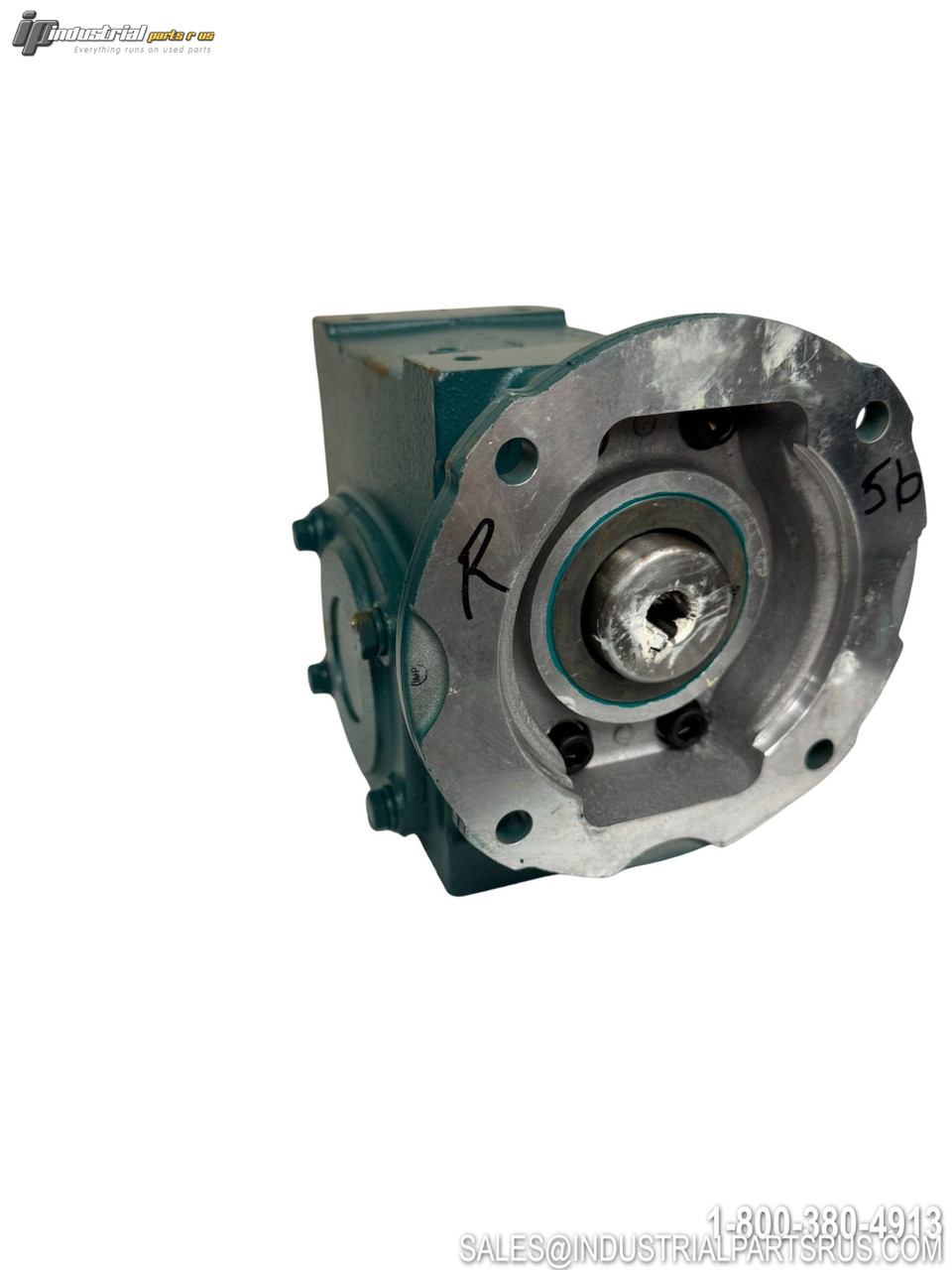

| Input Type | Quill Input (C-Face) |
| Motor Frame Compatibility | NEMA 56C |
| Input Bore Diameter | 5/8 in (0.625 in) |
| Output Configuration | Right-Hand Solid Output Shaft |
| Output Shaft Diameter | 1.25 in (1-1/4 in) |
| Rated Input Horsepower | 0.5 HP |
| Rated Output Torque | 1,105 in-lb |
| Maximum Output RPM | 75 RPM (at 1750 RPM input) |
| Maximum Input RPM | 1750 RPM |
| Service Factor (S.F.) | 1.33 |
| Housing Material | Class 30 Gray Iron (Cast Iron) |
| Paint / Finish | Green |
| Lubrication | Synthetic Oil (Factory Filled, Maintenance-Free) |
| Seal Type | Single-Lip Contact |
| Efficiency Range | 60–95% |
| Enclosure / Venting | Totally Enclosed, Ventless |
| Output Shaft Rotation | Right Hand |
| Mounting | No Base (Optional Bolt-On Base Available) |
| Dimensions (L x W x H) | 9.94 in x 6.62 in x 9.31 in (approx.) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Tigear
Shaft Diameter 1.25 in
Enclosure Type Totally Enclosed, Ventless
Part Number 23Q15R56
Shelf G-16
Model 23Q15R56
MPN 23Q15R56
Type Gear Reducer
