Product Description

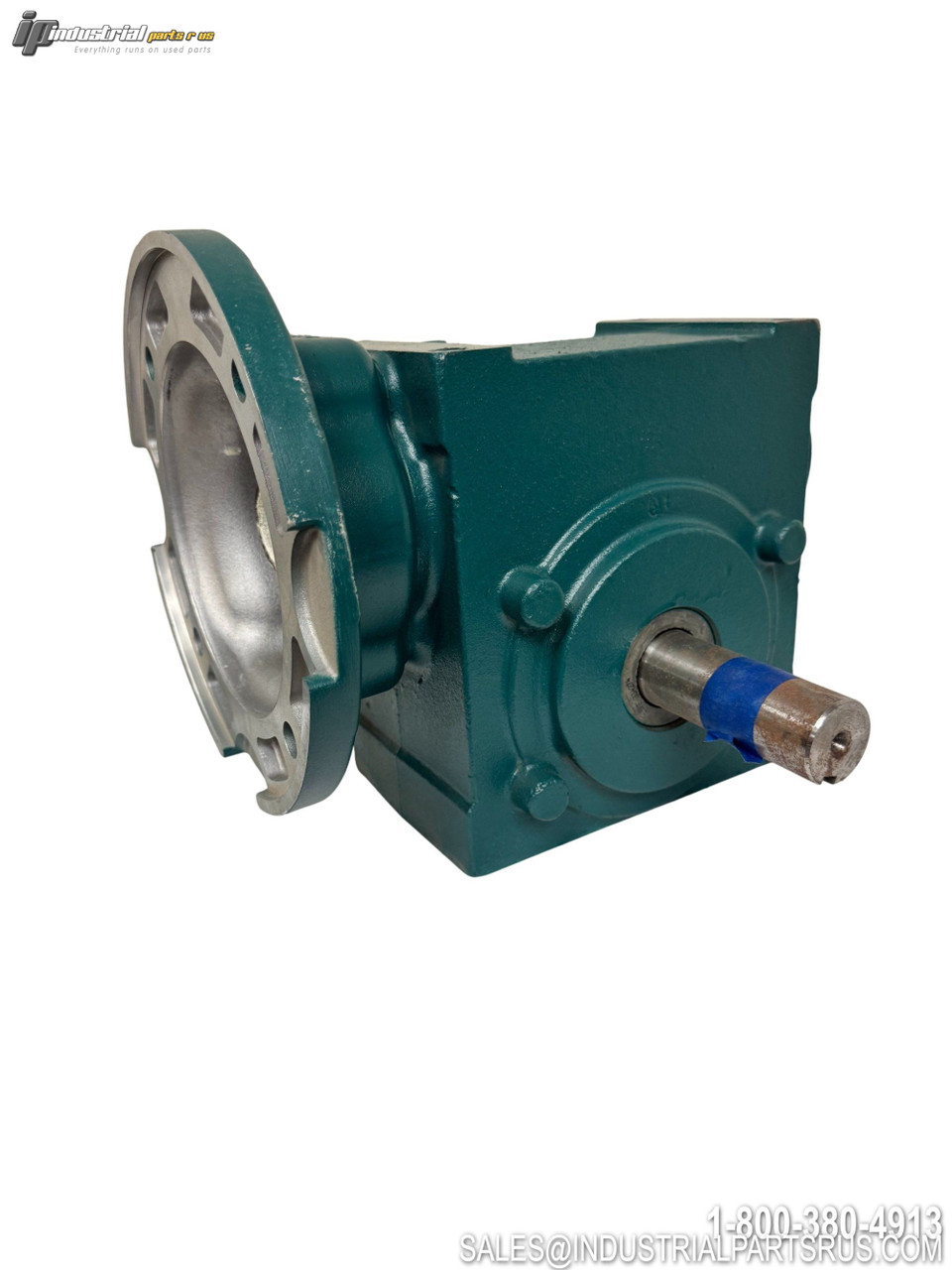

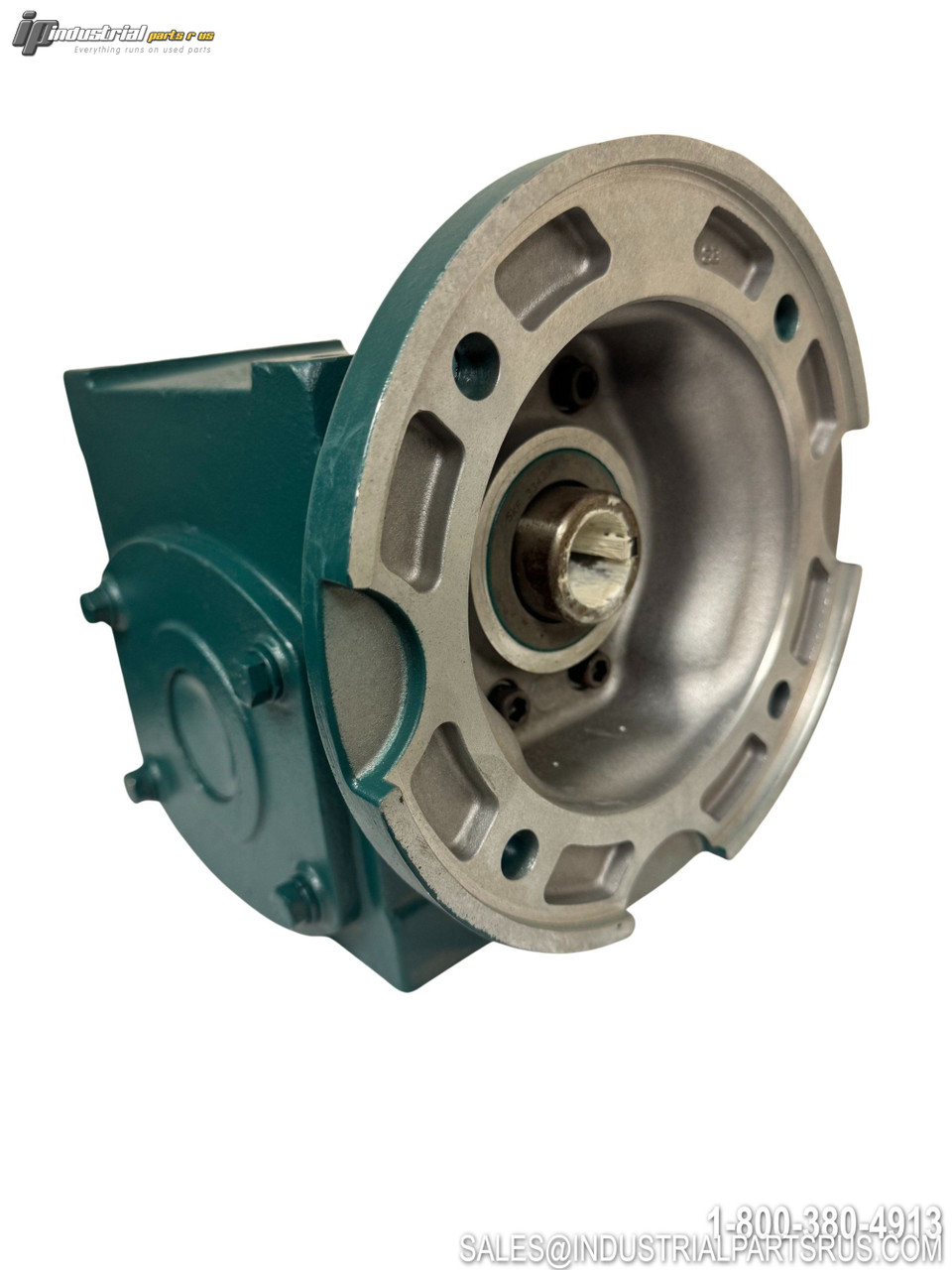

The Dodge Tigear-2 30Q25AR18 is a Size 30 single-reduction right-angle worm gear speed reducer featuring a quill-style 3-piece coupled input configuration, 25:1 gear ratio, right-hand solid output shaft, and 180TC motor frame compatibility. It belongs to Dodge Industrial's Tigear-2 product line — engineered for demanding industrial applications with a sealed-for-life, ventless housing pre-filled with H1 food-grade synthetic lubricant that eliminates routine oil changes. The 3-piece coupled ("A") input style provides a durable drive package that facilitates easy motor removal and offers protection against shock loads and vibration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dodge Tigear |
| Model / Part Number | 30Q25AR18 |
| Product Line | Tigear-2 |
| Reducer Size | 30 |
| Gear Ratio | 25:1 |
| Input Style | Quill / 3-Piece Coupled (Adaptable) |
| Output Configuration | Right-Hand Solid Shaft Output |
| Motor Frame / Flange | 180TC |
| Center Distance | 3.00 in |
| Mechanical Input HP | 3.05 HP |
| Thermal Input HP | 3.90 HP |
| Mechanical Output HP | 2.54 HP |
| Max Output Speed | 70 RPM |
| Max Input Speed | 1750 RPM |
| Output Torque | 2284 in-lb |
| Overhung Load (OHL) | 2300 lbs |
| Efficiency | 60–95% |
| Shaft Orientation | Right Angle |
| Gear Type | Single Reduction Worm Gear |
| Housing Material | Gray Iron (Cast Iron) |
| Lubrication | Factory-filled H1 Food-Grade Synthetic Oil (PAG), Sealed-for-Life |
| Sealing System | Totally Enclosed, Ventless |
| Keyway (Output) | 2 in L x 1/4 in W x 1/4 in H |
| Dimensions (L x W x H) | 11.38 in x 7.76 in x 10.75 in |
| Mounting Base | No Base (Drilled & Tapped Top and Bottom; bolt-on base kit available separately) |
| Place of Manufacture | United States of America |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture United States
Manufacturer Dodge Tigear
Part Number 30Q25AR18
Shelf G-3
Model 30Q25AR18
MPN 30Q25AR18
Type Gear Reducer
