Product Description

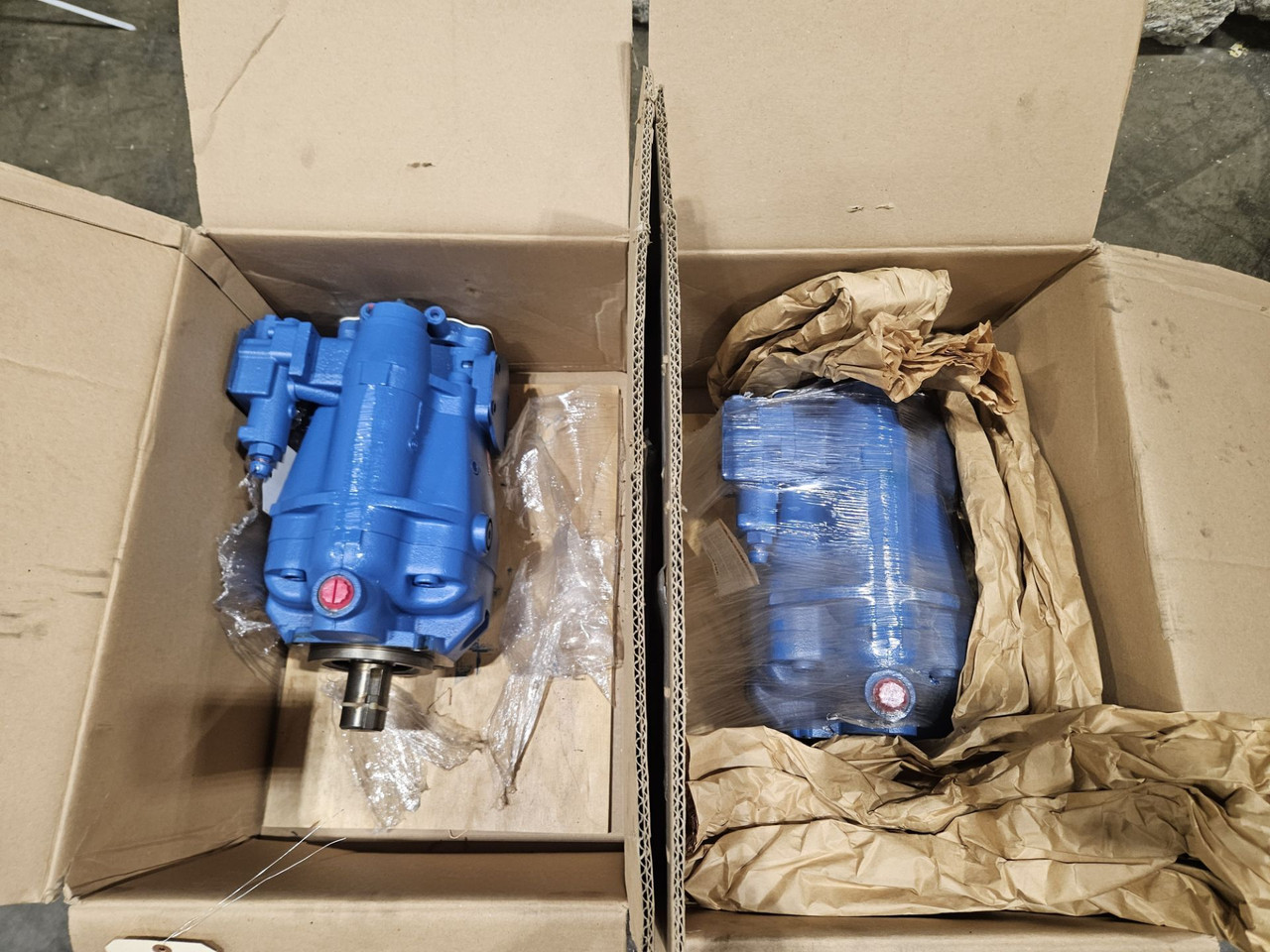

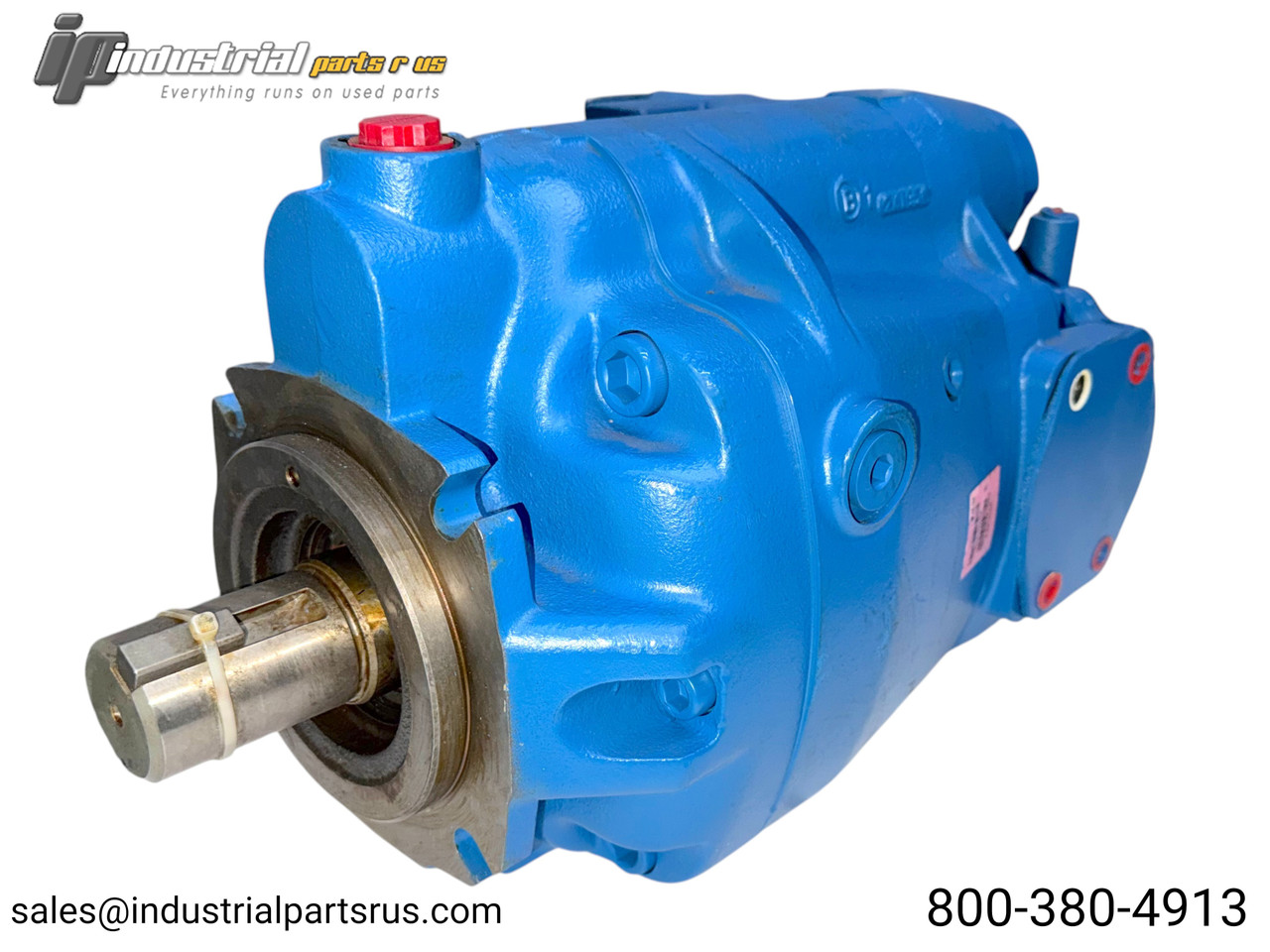

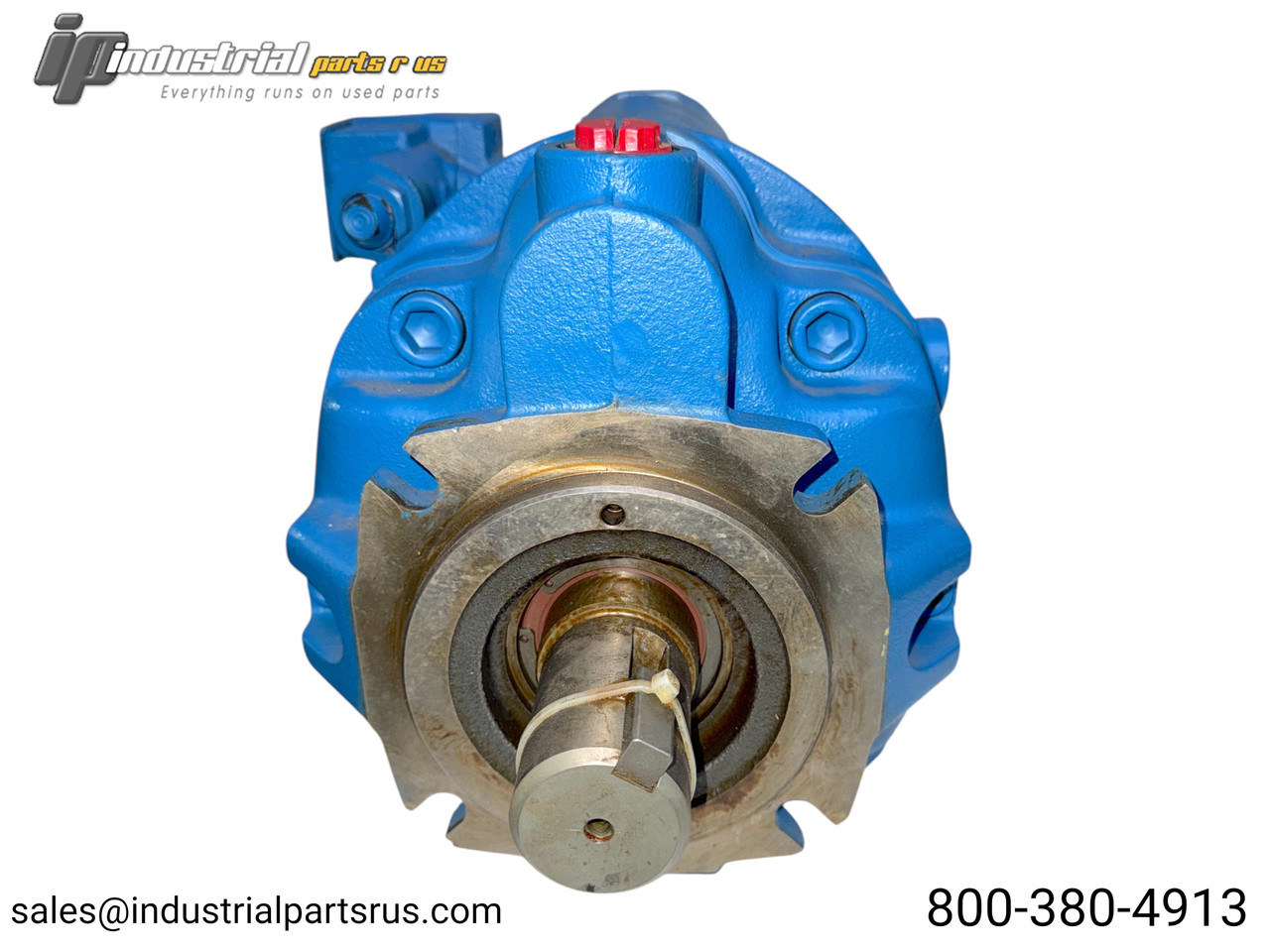

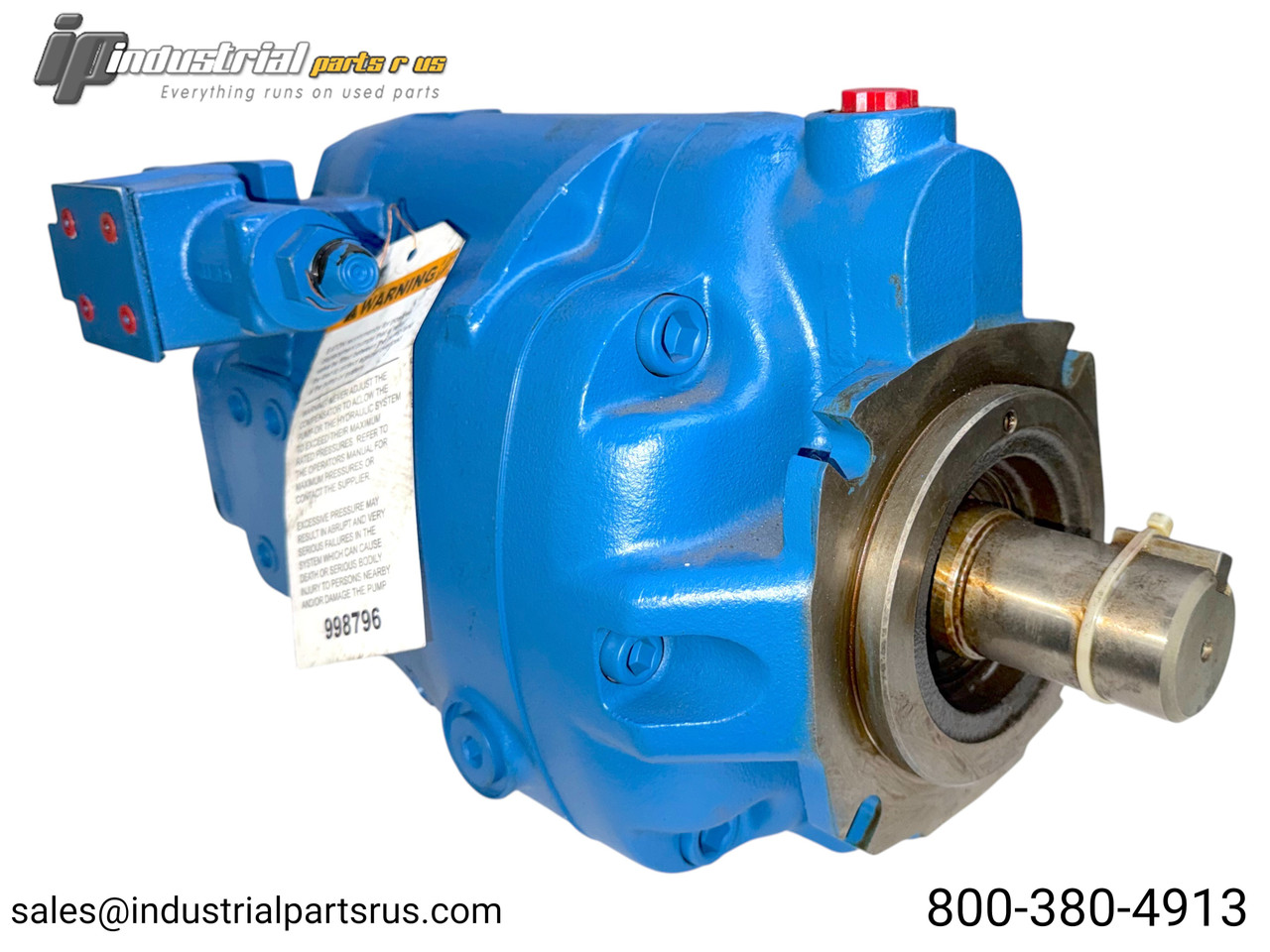

The Eaton (Vickers) PVM131ER13GS02AAE0020000 is an M-Series industrial variable displacement axial piston pump with a displacement of 131.1 cm³/rev (8.0 in³/rev). It features a clockwise-rotation industrial valve plate ("E" type optimized for 1000–1800 RPM), SAE D straight-keyed shaft, SAE C 4-bolt mounting flange, side SAE J518 flange ports, and an adjustable maximum displacement stop with industrial/remote pressure-flow compensator control. This pump is widely used in press brakes, injection molding machines, extruders, and other industrial hydraulic systems requiring a wide displacement range and quiet operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Eaton (Vickers) |
| Model / Part Number | PVM131ER13GS02AAE0020000 |
| Product Series | PVM M-Series Variable Displacement Piston Pump |
| Displacement | 131.1 cm³/rev (8.00 in³/rev) |
| Valve Plate Type | E – Industrial, optimized 1000–1800 RPM |
| Rotation | Clockwise (Right-Hand) – Code R |
| Shaft Type | SAE D, Straight Keyed – Code 13 |
| Mounting Flange | SAE C, 4-Bolt (SAE J744-127-4) – Code G |
| Main Port Location | Side – Code S |
| Main Port Type | SAE J518 Flange Ports – Code 02 |
| Pump Special Features | AA – Adjustable Maximum Displacement Stop + Single Shaft Seal |
| Compensator Control | E – Industrial / Remote Pressure-Flow Compensator |
| Pressure Compensator Setting | 00 – None (Factory Assigned) |
| Flow Compensator Setting | 20 – 19 to 21 bar (275.5 to 304.5 psi) |
| Torque Limiter Setting | 00 – None |
| Compensator Special Features | 0 – None |
| Auxiliary Mounting Pad | 0 – None |
| Max Operating Speed (E-type) | 1,800 RPM |
| Nominal Operating Pressure | 315 bar (4,568 psi) |
| Peak Pressure | 350 bar (5,000 psi) |
| Max Outlet Flow @ 1800 RPM, 1 bar inlet | 229 L/min (60.5 USgpm) |
| Max Input Power @ 280 bar, 1800 RPM | 113 kW (152 hp) |
| Max Torque @ 280 bar | 596 N·m (440 lb-ft) |
| Approximate Dry Weight | 66 kg (145 lbs) |
| Continuous Inlet Temperature (Max) | 82°C (180°F) |
| Recommended Fluid Viscosity Range | 40 to 160 cSt (83 to 187 SUS) |
| Inertia | 213.5 kg·cm² |
| Response Time – On Stroke | 135 ms |
| Response Time – Off Stroke | 30 ms |
| Max Case Pressure | 0.5 bar |
| Typical Applications | Press Brakes, Injection Molding, Extruders, Industrial Hydraulic Systems |
We warranty all items for 30 days from date of purchase.
Product Videos
Custom Field
GTIN 721814239829
Country/Region of Manufacture United States
Power Source Electric
Manufacturer Eaton Corp.
Part Number 123AL00224A
RPM 1800
Series PVM131
Model PVM131ER13GS02AAE0020000
MPN PVM131ER13GS02AAE0020000
Type Axial Piston Pump
