Product Description

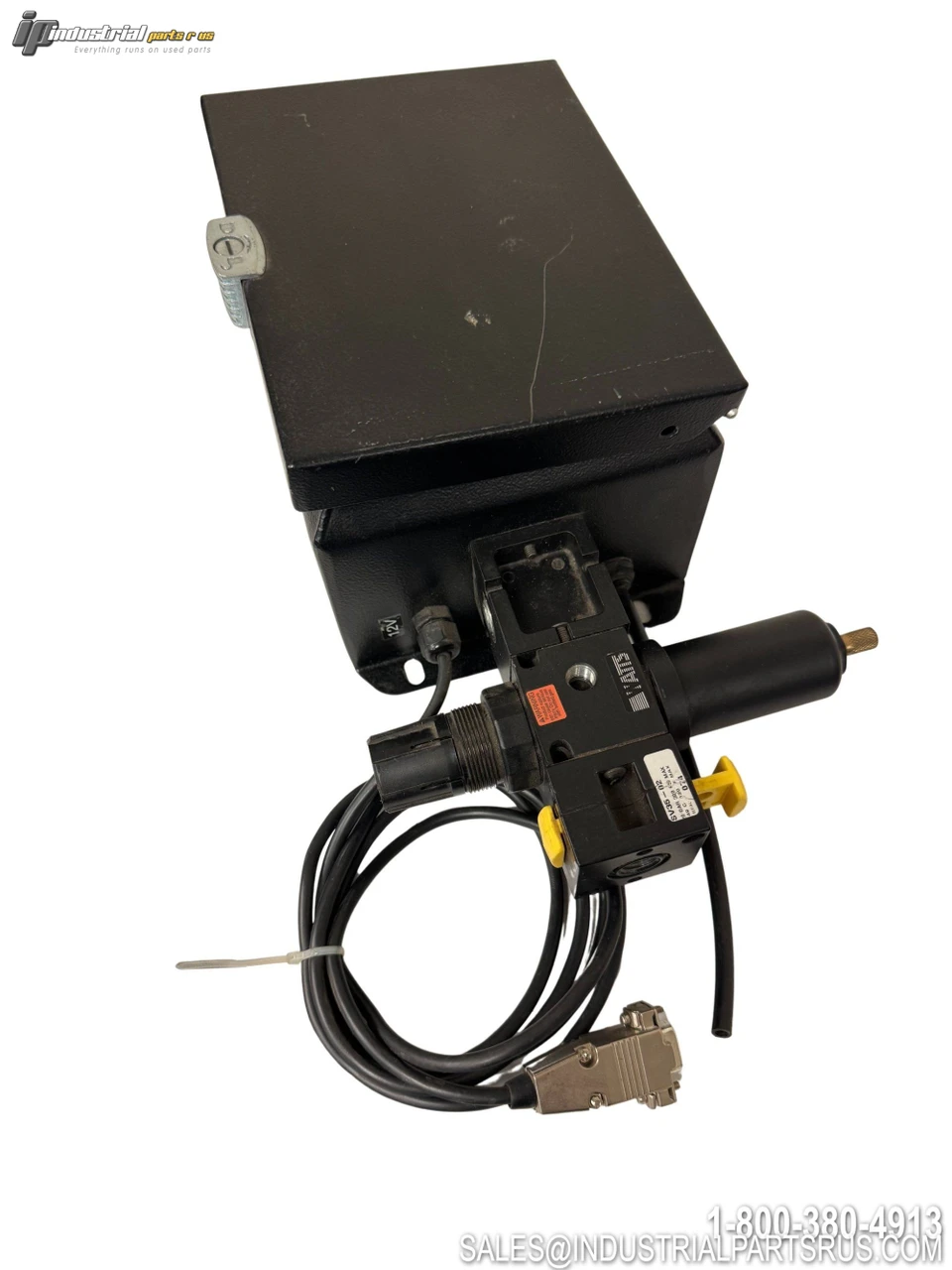

The Eurobex (EXM Manufacturing) 5412 ESCH is a NEMA Type 4/12, IP66-rated steel wall-mount JIC enclosure designed for use in indoor and outdoor environments where the enclosure may be subject to water, hosing, dust, dirt, or oil splashing. It features a robotically poured-in-place seamless gasket, a 16-gauge continuously welded steel body, a 14-gauge galvanized inner panel, and EXM's exclusive externally-mounted flanged ¼ turn locking system. The 5412 ESCH series is UL listed and CSA certified, and is finished in ANSI/ASA 61 smooth gray polyester powder paint over a phosphatized surface.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Eurobex (EXM Manufacturing Ltd.) |
| Model / Part Number | 5412 ESCH |
| Product Type | Wall-Mount Electrical Enclosure (JIC) |
| NEMA Rating | NEMA 4 / 12 |
| IP Rating | IP66 |
| Material | Steel |
| Body Gauge | 16 Gauge |
| Inner Panel Gauge | 14 Gauge Galvanized |
| Finish / Color | Polyester Powder Paint, ANSI/ASA 61 Smooth Gray |
| Surface Preparation | Electrostatically Applied over Phosphatized Surface |
| Door Type | Standard Single Door, Hinged, Removable |
| Locking Mechanism | Flange-Mounted Externally-Mounted 1/4 Turn Lock (key lockable / padlockable) |
| Gasket Type | Robotically Poured-In-Place Seamless Gasket |
| Hinge Type | Die Cast, Concealed Hinge Pin System |
| Seam Construction | Continuously Welded Corner Seams, Ground Smooth |
| Drip Shield | Yes — Curled Lip on All Sides |
| Mounting Type | Wall Mount (Feet/Oblong Holes, Part of Body — No Spot Welding) |
| Inner Panel Mounting | Mounts on Weld Nuts (M8 Welded Studs) |
| Service Type | Indoor / Outdoor |
| Approvals / Certifications | UL Listed, CSA Certified, NEMA/EEMAC 4-12 |
| Series / Product Family | 5412 ESCH (ESCH Standard Door Series) |
| Available Sizes (H × W × D) | Multiple — e.g., 6×6×4, 8×6×4, 10×8×4, 10×8×6, 12×10×8, 12×12×6, 13.5×11×7 (in.) |
| Ground Strap | Included with Anti-Vibration Hardware |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Eurobex
Enclosure Type NEMA 4/12
Part Number 5412 ESCH
Shelf K-43
Model 5412 ESCH
MPN 5412 ESCH
Type Electrical Enclosure
