Product Description

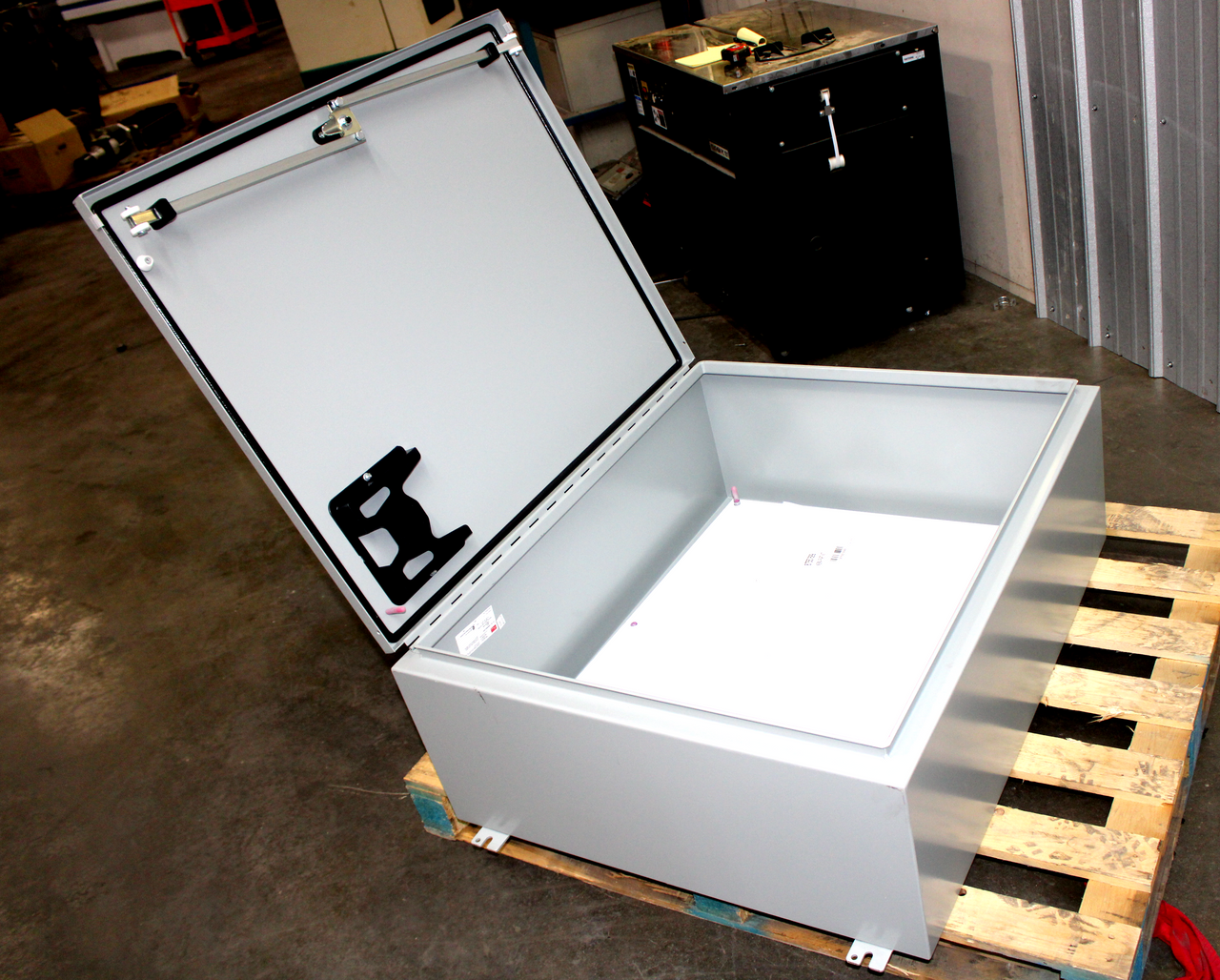

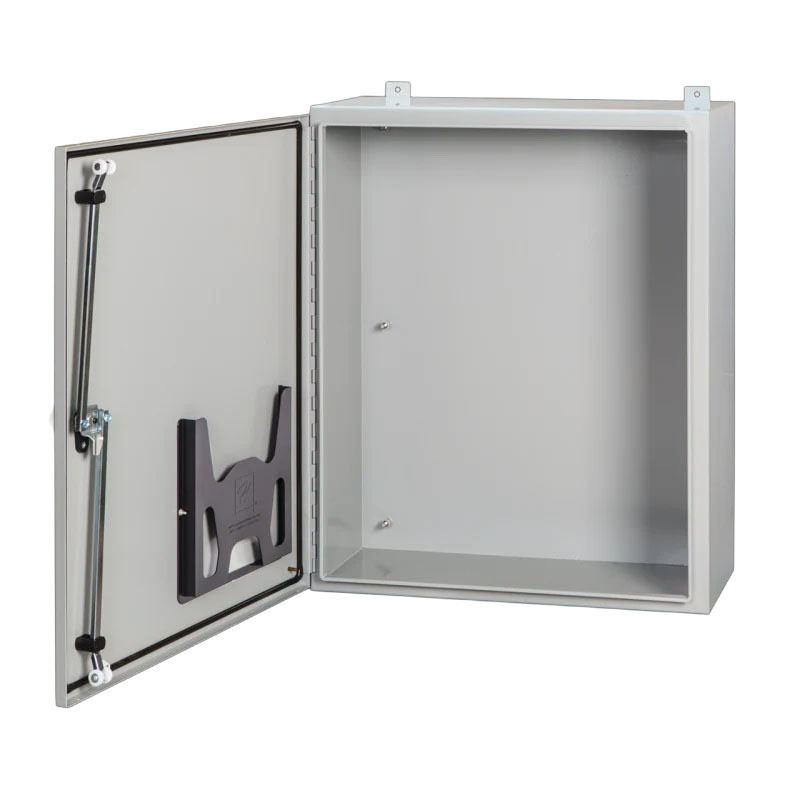

The Hoffman A36H30DLP3PT is a heavy-duty steel electrical enclosure designed for wall mounting applications. This continuous hinge enclosure features a 3-point latching PowerGlide handle system for secure access and is rated NEMA Type 4/IP66 for protection against weather, corrosion, and windblown dust.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hoffman |
| Model/Part Number | A36H30DLP3PT |
| Material | Mild Steel |
| Enclosure Type | Electrical/Industrial |
| Application | Controls and Drives |
| Box Shape | Rectangular |
| NEMA Rating | Type 3, 4, 12, 13 |
| IP Rating | IP66 |
| Dimensions (H x W x D) | 36" x 30" x 12" (914 x 762 x 305mm) |
| Mounting Type | Wall Mount |
| Color | ANSI 61 Gray |
| Finish | Powder Coated |
| Door Type | Continuous Hinge with 3-Point Latch |
| Handle Type | PowerGlide Handle |
| Features | 3-Point Latch, PowerGlide Handle, Continuous Hinge, Foam-in-place Gasket |
| Gauge | 14 Gauge Steel |
| Weight | 97 lbs |
| Panel Size (H x W) | 33" x 27" |
| Resistance Properties | Corrosion Resistant |
| Suitable For | Indoor and Outdoor Applications |
| UPC | 783510279165 |
We warranty all items for 30 days from date of purchase.
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
GTIN 679523689766
Manufacturer Hoffman
Part Number A36H30DLP3PT
Shelf Freight
Model A36H30DLP3PT
MPN A36H30DLP3PT
Type Hinge Enclosure
Mounting Style Wall
Country/Region of Manufacture Unite
Material Aluminized Steel
Application Controls and Drives
