Product Description

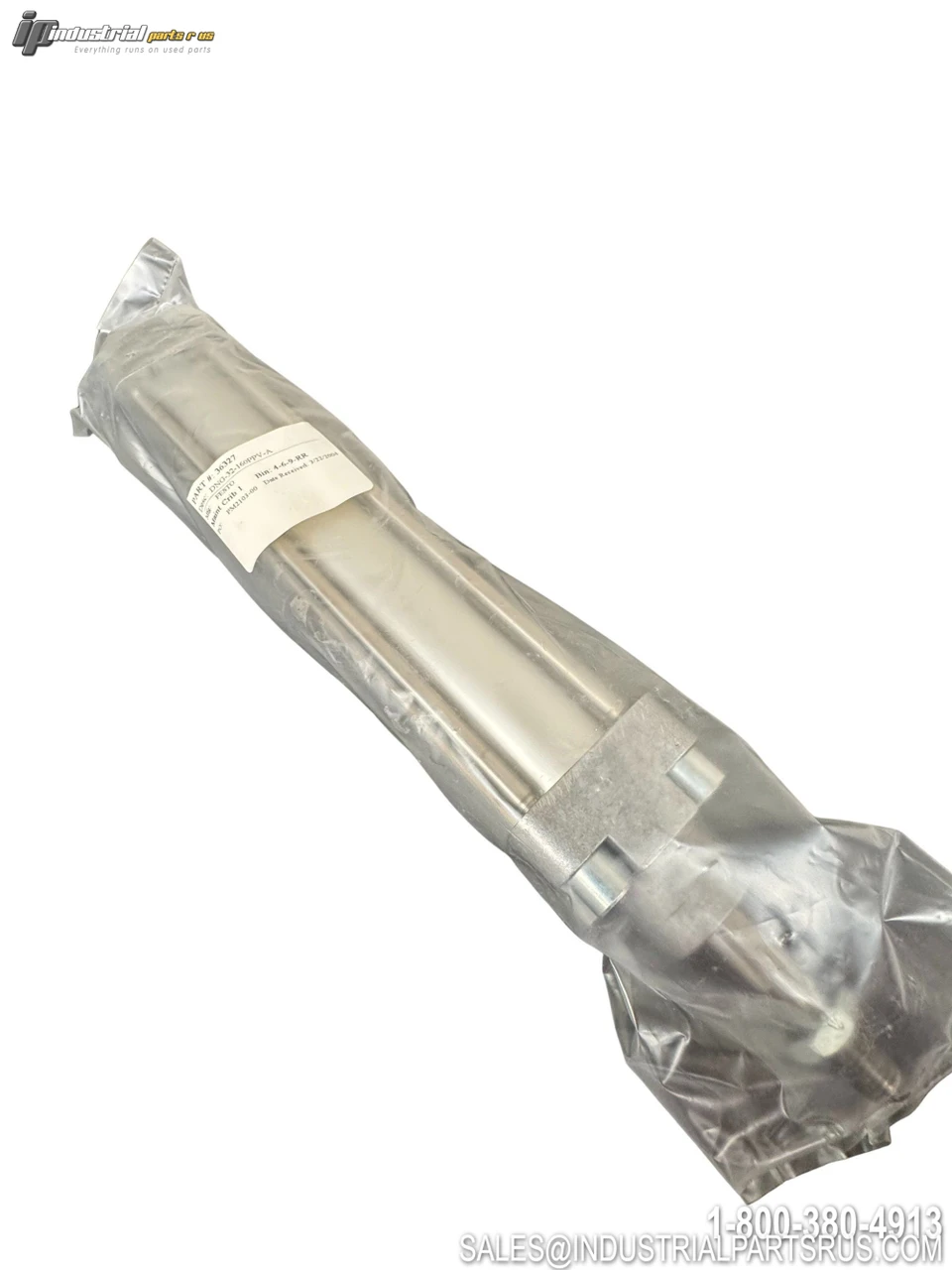

The Festo DNG-32-160-PPV-A is a legacy ISO 15552 standard pneumatic cylinder from Festo's DNG series, designed for double-acting linear motion in industrial automation applications. It features pneumatic cushioning adjustable at both end positions (PPV) and is equipped for proximity sensor-based position detection. The cylinder accepts mounting via standard accessories and can be installed in any orientation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Festo |
| Model / Part Number | DNG-32-160-PPV-A |
| Product Type | Pneumatic Cylinder (Standard) |
| Series | DNG (Legacy ISO 15552) |
| Stroke Length | 160 mm |
| Piston Diameter | 63 mm (see quality flag) |
| Piston Rod Diameter | 12 mm |
| Mode of Operation | Double-acting |
| Cushioning | PPV – Pneumatic, adjustable at both ends |
| Position Detection | For proximity sensor |
| Maximum Operating Pressure | 12 bar (174 psi) |
| Conforms to Standard | ISO 15552 |
| Assembly Position | Any |
| Piston Rod Thread | Male thread (M series) |
| Piston Rod Type | Single-ended |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:4:4]) |
| Ambient Temperature Range | -20 °C to +80 °C |
| Corrosion Resistance Class | CRC 2 – Moderate corrosion stress |
| Mounting Type | With accessories |
| Dimensions (L × W × H) | 308 × 50 × 50 mm |
| Weight | ~1.0 kg |
| Cylinder Barrel Material | Wrought aluminium alloy |
| Piston Rod Material | High-alloy steel |
| Cover Material | Aluminium |
| Seal Material | TPE-U (PU) |
| Lubricated Operation | Possible (subsequently required if used) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Festo
Part Number DNG-32-160-PPV-A
Shelf B-8
Bore Diameter 32 mm
Model DNG-32-160-PPV-A
MPN DNG-32-160-PPV-A
Type Pneumatic Cylinder
