Product Description

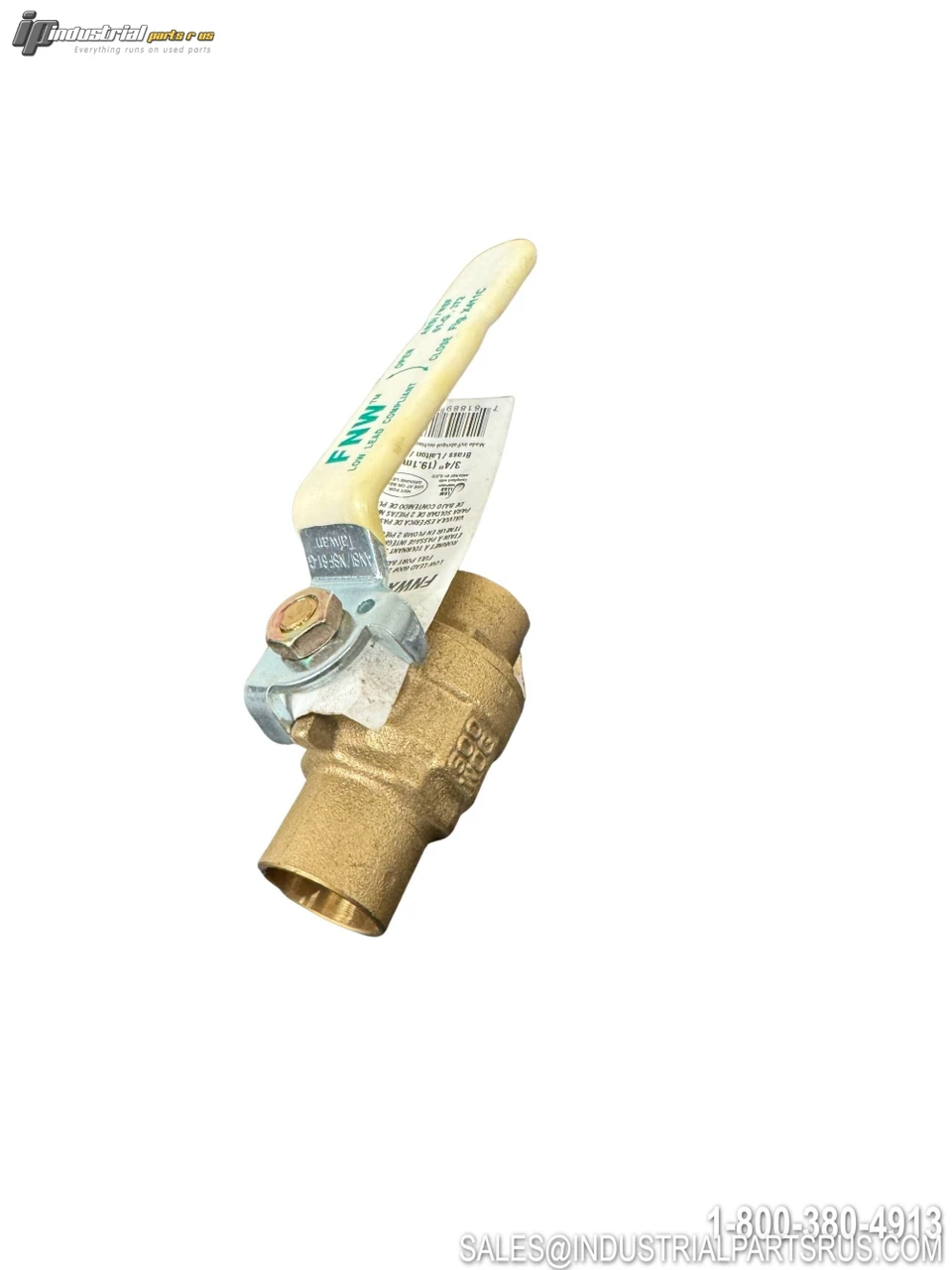

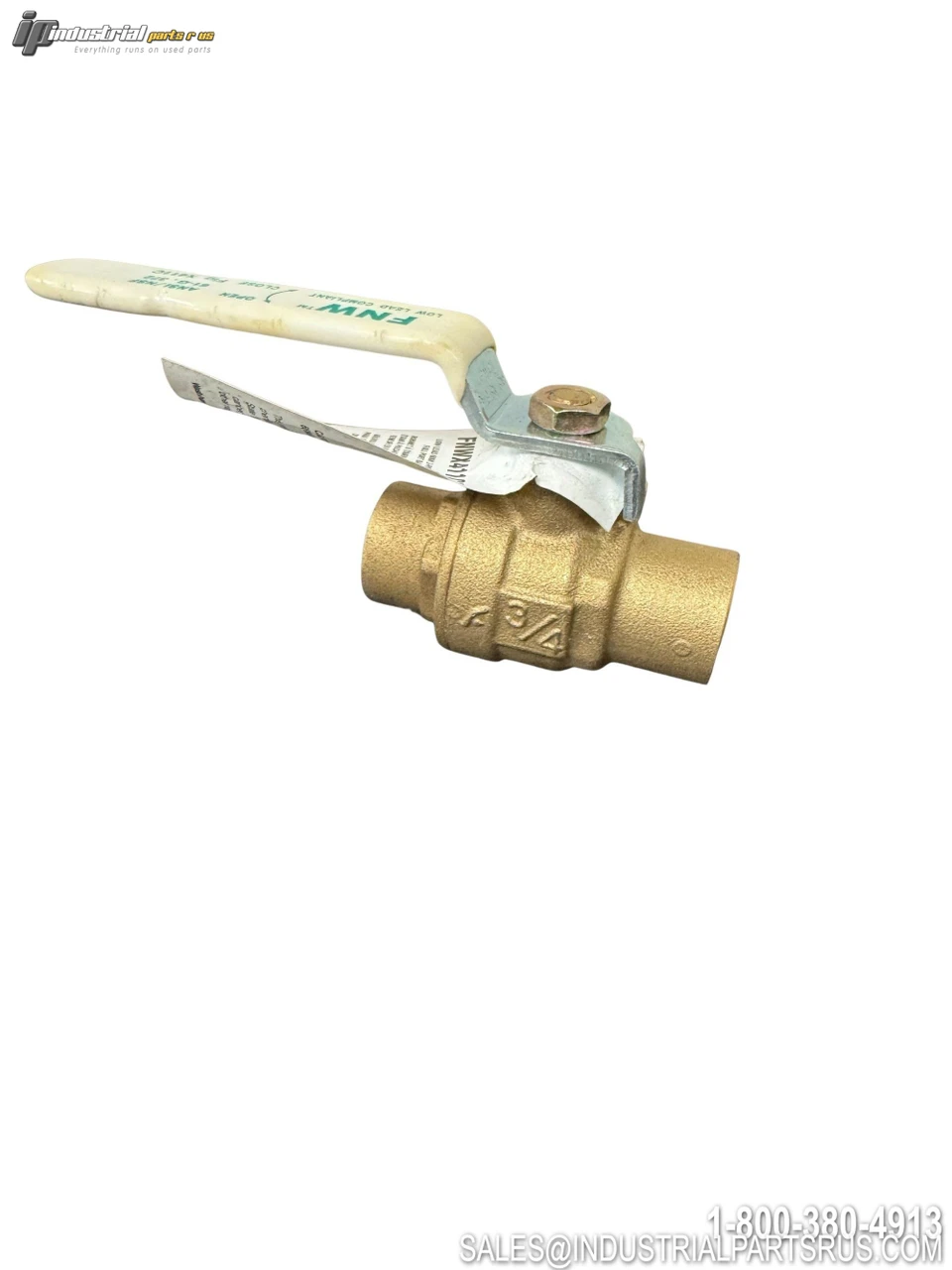

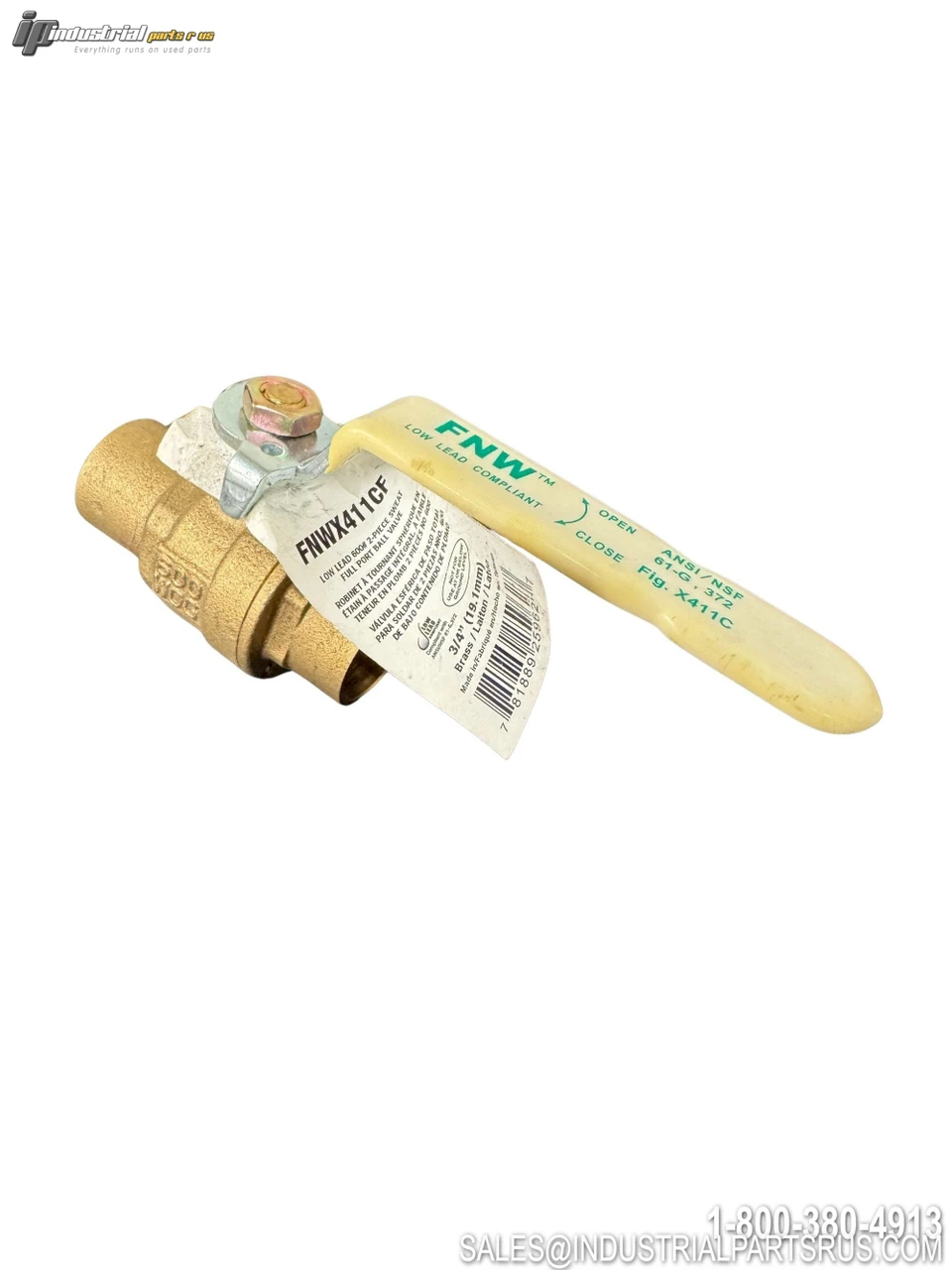

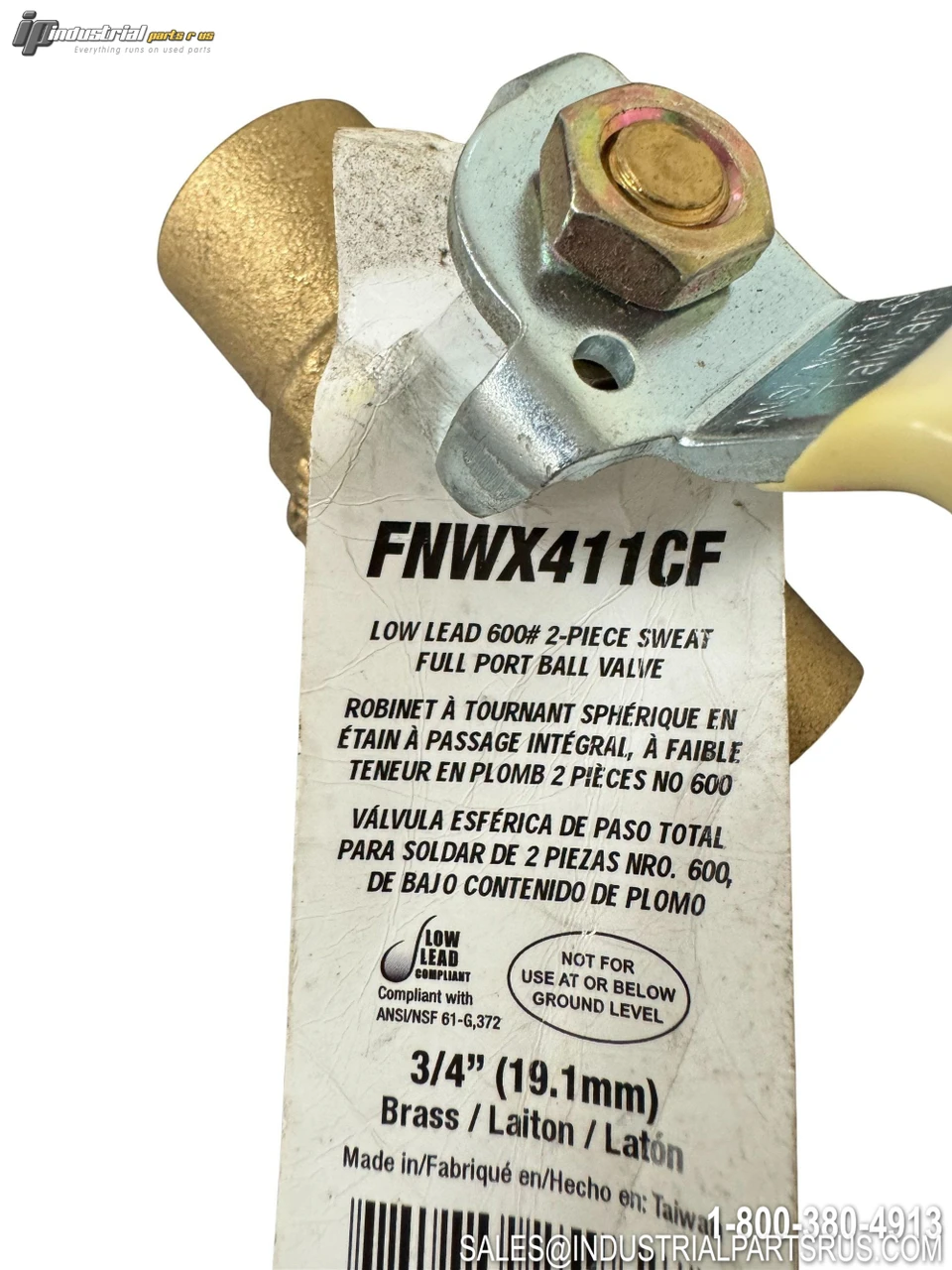

The FNW FNWX411CF is a 3/4-inch, 2-piece brass ball valve from the Figure X411C series, designed for full-port flow control with copper sweat (solder) end connections. It is rated at 600 WOG (Water, Oil, Gas) and features a blowout-proof stem, PTFE seat, and a zinc-plated steel lever handle with adjustable packing. The valve is NSF 61 and NSF 372 certified (lead-free compliant) and meets ANSI B16.18 and MSS SP-110 standards, making it suitable for potable water, oil, and gas service. Operation is manual via lever handle in a 2-way configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | FNW |
| Model / Part Number | FNWX411CF |
| Figure / Series | Figure X411C |
| Valve Type | Ball Valve |
| Valve Size | 3/4 in. |
| Valve Body Style | 2-Piece |
| Valve Port Opening | Full Port |
| Valve Ways & Position | 2-Way |
| Operation | Manual |
| End Connections | Sweat (Solder / SWT) |
| Valve Body Material | Brass (C46400 / CW510L) |
| Valve Disc Material | Brass |
| Valve Seat Material | PTFE |
| Valve Stem | Blowout-Proof |
| Valve Operator | Lever Handle |
| Handle Material | Zinc Plated Steel |
| Maximum Pressure | 600 psi (600 WOG) |
| Pressure Class | 600# |
| Temperature Range | -40°F to 400°F (-40°C to 204°C) |
| Valve Length | 2.72 in. |
| Height | 2-29/50 in. |
| Weight | 0.64 lbs |
| Recommended Application | Potable Water, Oil, Gas |
| Lead Law Compliant | Yes – Lead Law Compliant and Certified |
| NSF Certified | Yes – NSF 61, NSF 372 |
| ANSI Standard | ANSI B16.18 |
| ASME Standard | ASME B16.33, ASME B16.44 |
| MSS Standard | MSS SP-110 |
| ASTM Standard | ASTM B-124 |
| Adjustable Packing | Yes |
| Locking Lever Handle | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Taiwan
Material Brass
Pressure 600#
Max. PSI 600
Application Potable Water, Oil, Gas
Manufacturer Fnw
Empty Weight 0.64 lbs
Part Number FNWX411CF
Series Figure X411C
Shelf A-10
Model FNWX411CF
MPN FNWX411CF
Type Ball Valve
