Product Description

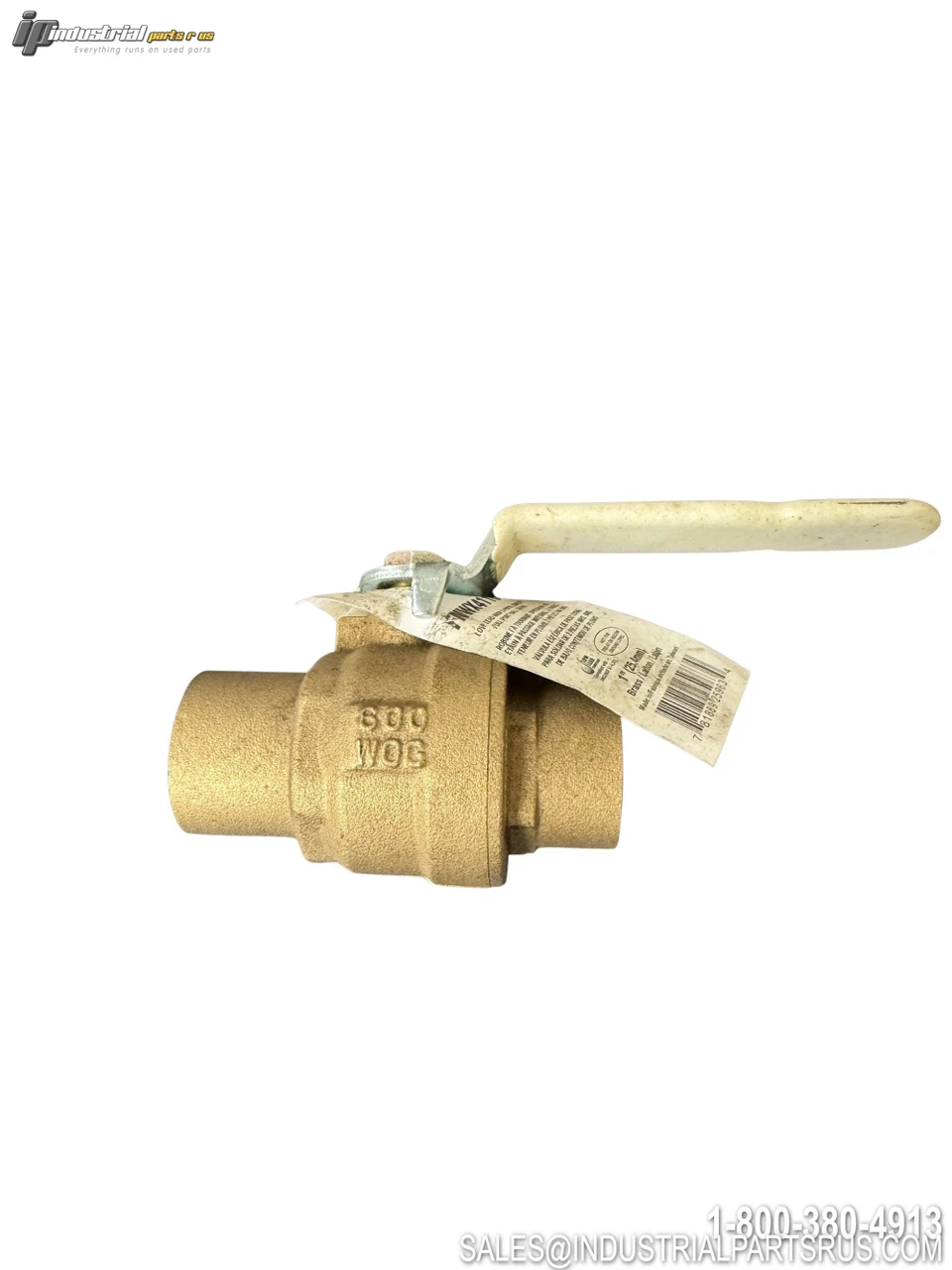

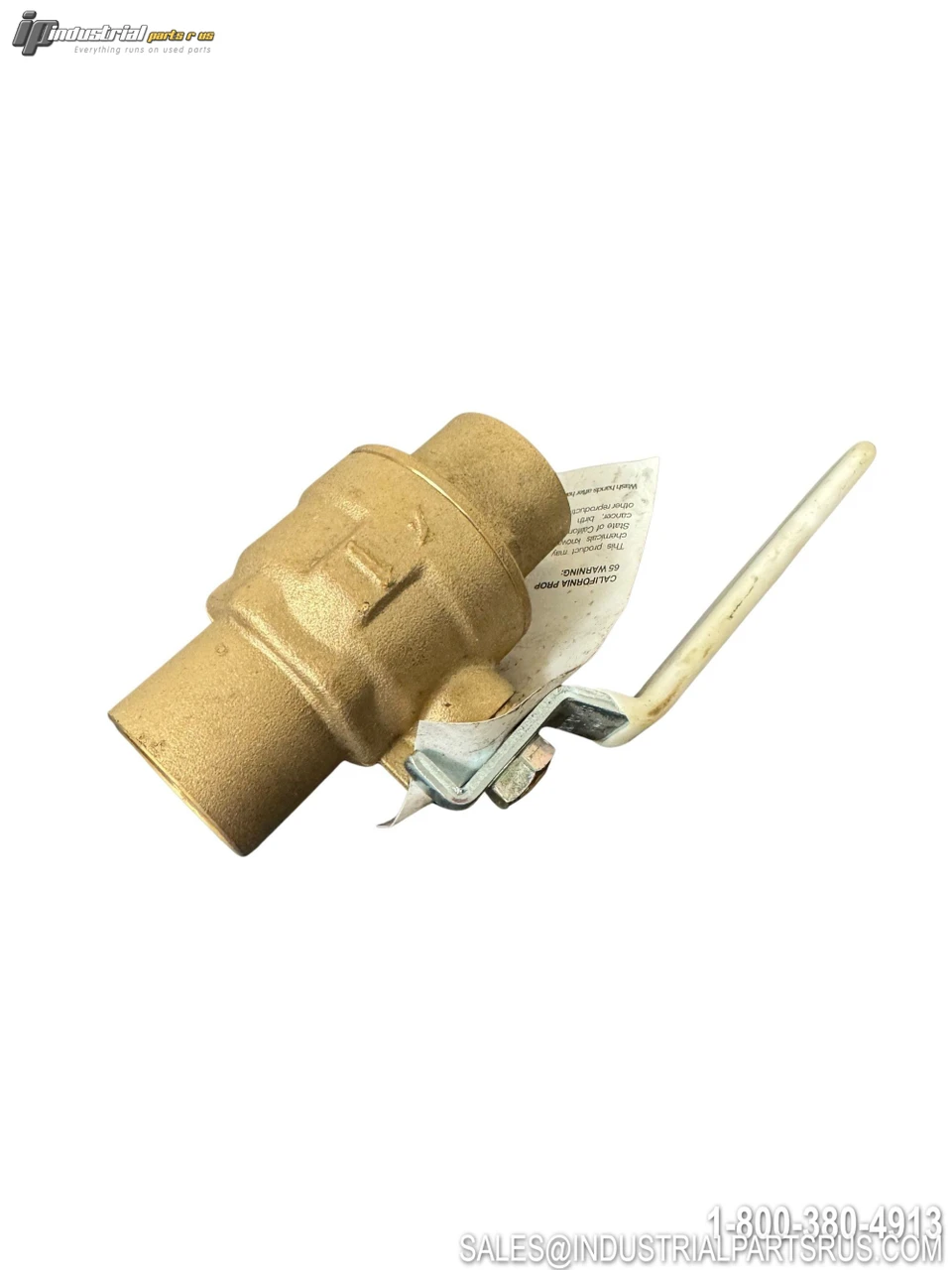

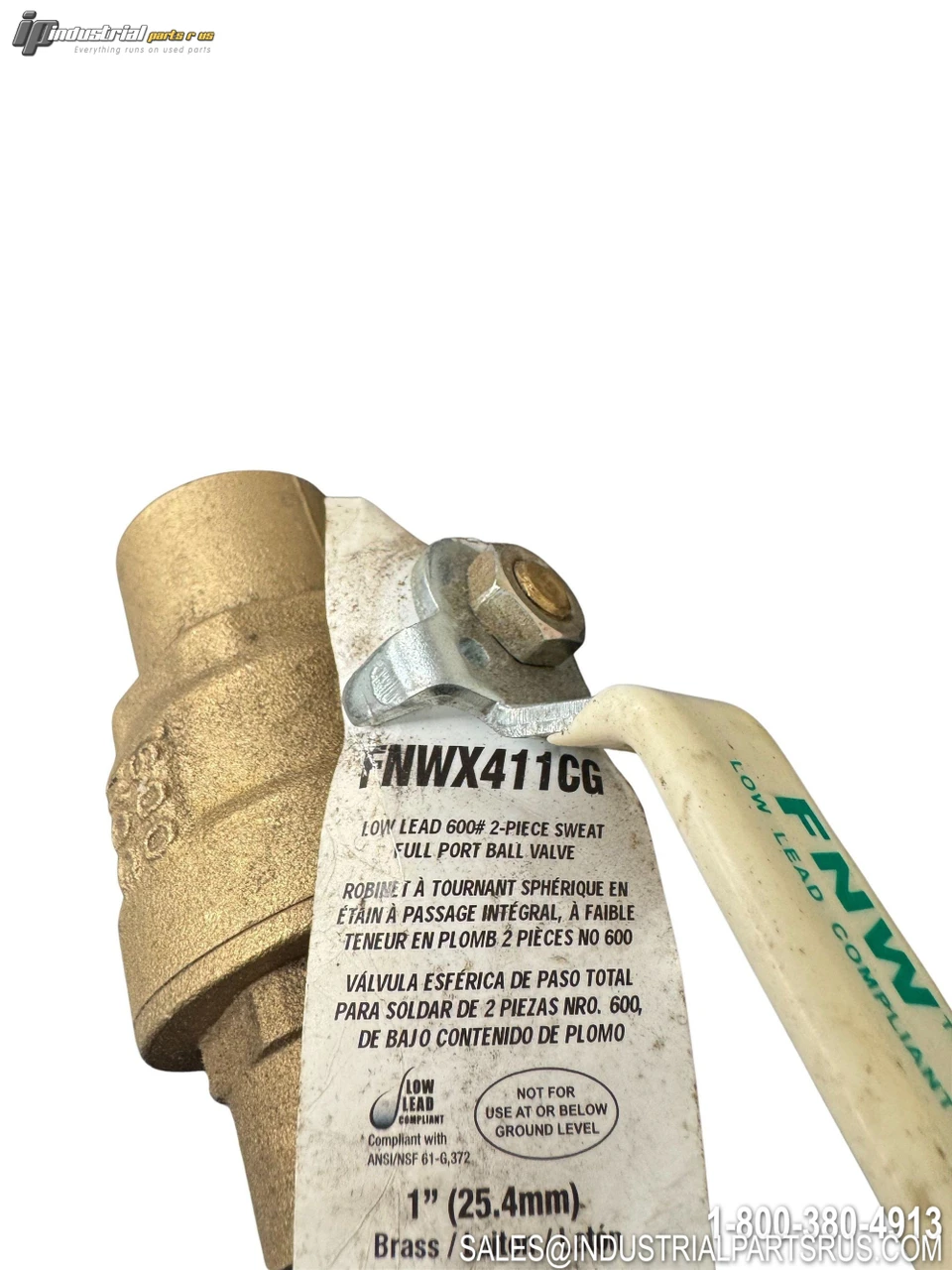

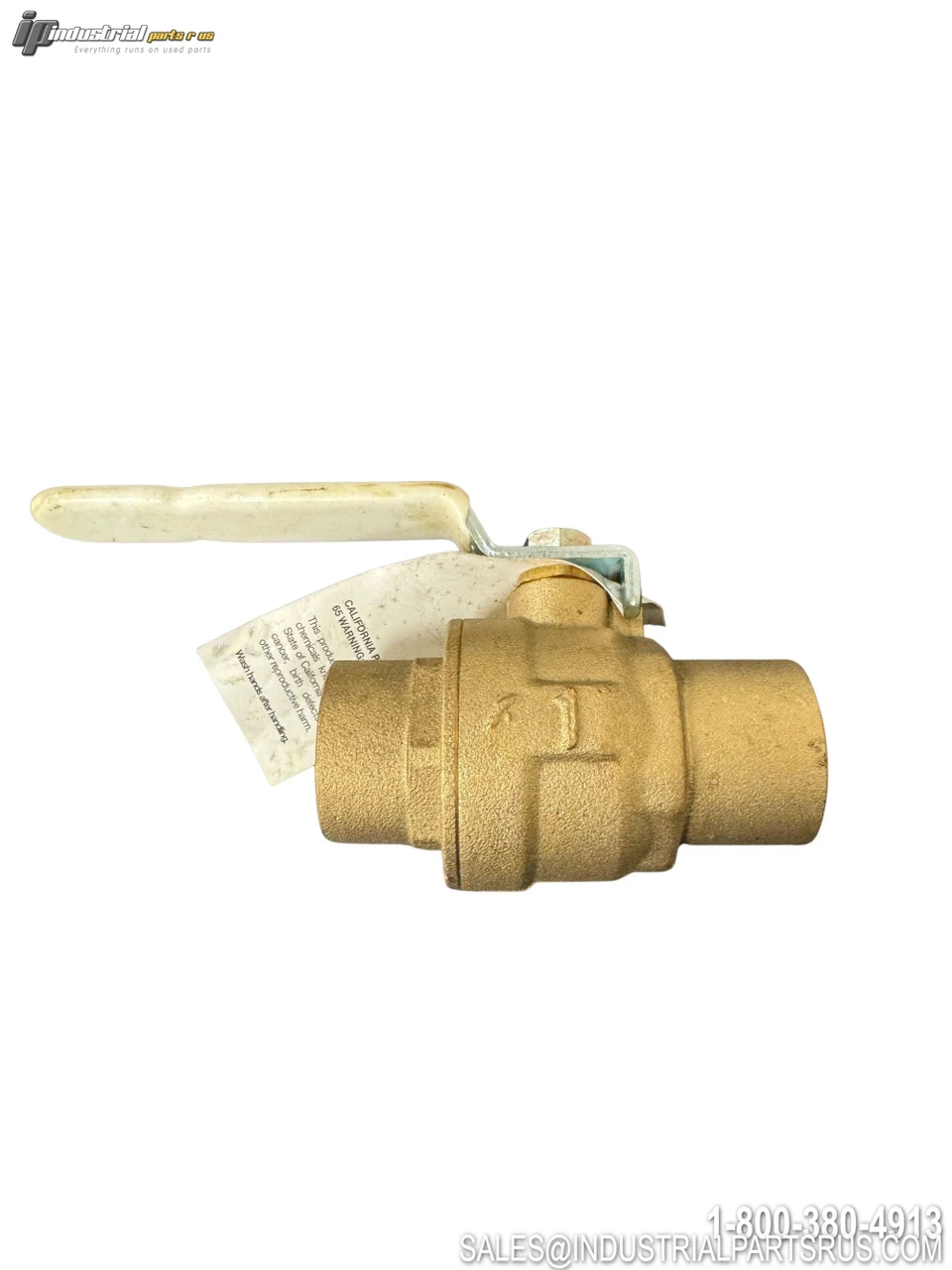

The FNW FNWX411CG is a 1-inch, two-piece brass full port ball valve designed for copper sweat (solder) end connections rated at 600 WOG (Water, Oil, Gas). Part of the FNW X411C Series, this valve features a blowout-proof stem, PTFE seat, and a steel lever handle, making it suitable for residential and light commercial plumbing applications involving potable water, oil, and gas service. It is certified to NSF 372 (lead-free) and NSF 61 standards. Operation is manual via lever handle, and the valve provides two-way (on/off) flow control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | FNW |
| Model / Part Number | FNWX411CG |
| Series / Collection | Figure 455 X411C |
| Valve Type | Ball Valve |
| Valve Size | 1 in. |
| Valve Body Style | 2-Piece |
| Valve Port Opening | Full Port |
| Valve Ways & Position | 2-Way |
| End Connections | Sweat (SWT / Solder) |
| Body Material | Brass (CW510L) |
| Ball / Disc Material | Brass |
| Seat Material | PTFE |
| Stem Type | Blowout-Proof |
| Valve Operator | Lever Handle |
| Operation | Manual |
| Handle Material | Steel |
| Pressure Class / Rating | 600# (600 WOG / 600 psi) |
| Recommended Application | Potable Water, Oil, Gas (Residential) |
| Temperature Range | 0 to 400°F (-18 to 204°C) |
| Overall Length | 3-1/3 in. (3.31 in.) |
| Weight | 0.90 lb |
| Lead Law Compliant | Yes (Lead-Free) |
| NSF Certified | Yes – NSF 61, NSF 372 |
| MA (Massachusetts) Approved | Yes |
| ANSI Standards | ANSI B16.18, ANSI 372, ANSI 61 |
| ASME Standards | ASME B16.33, ASME B16.44 |
| ASTM Standard | ASTM B-16 |
| MSS Standard | MSS SP-110 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Taiwan
Material Brass
Pressure 600#
Max. PSI 600
Application Potable Water, Oil, Gas
Manufacturer Fnw
Empty Weight 0.90 lb
Part Number FNWX411CG
Overall Length 3.31 in.
Series X411C
Shelf A-10
Model FNWX411CG
MPN FNWX411CG
Type Ball Valve
