Product Description

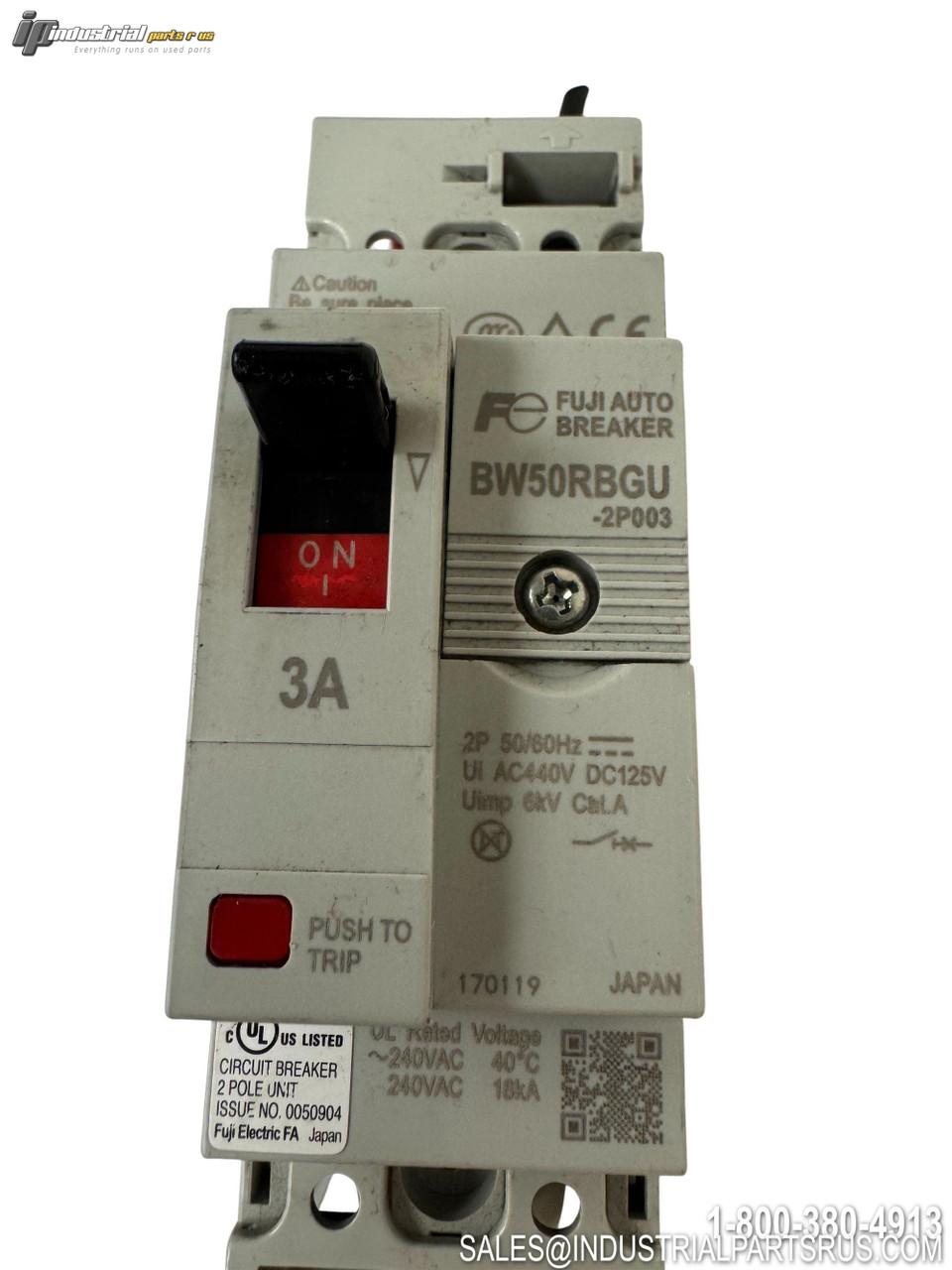

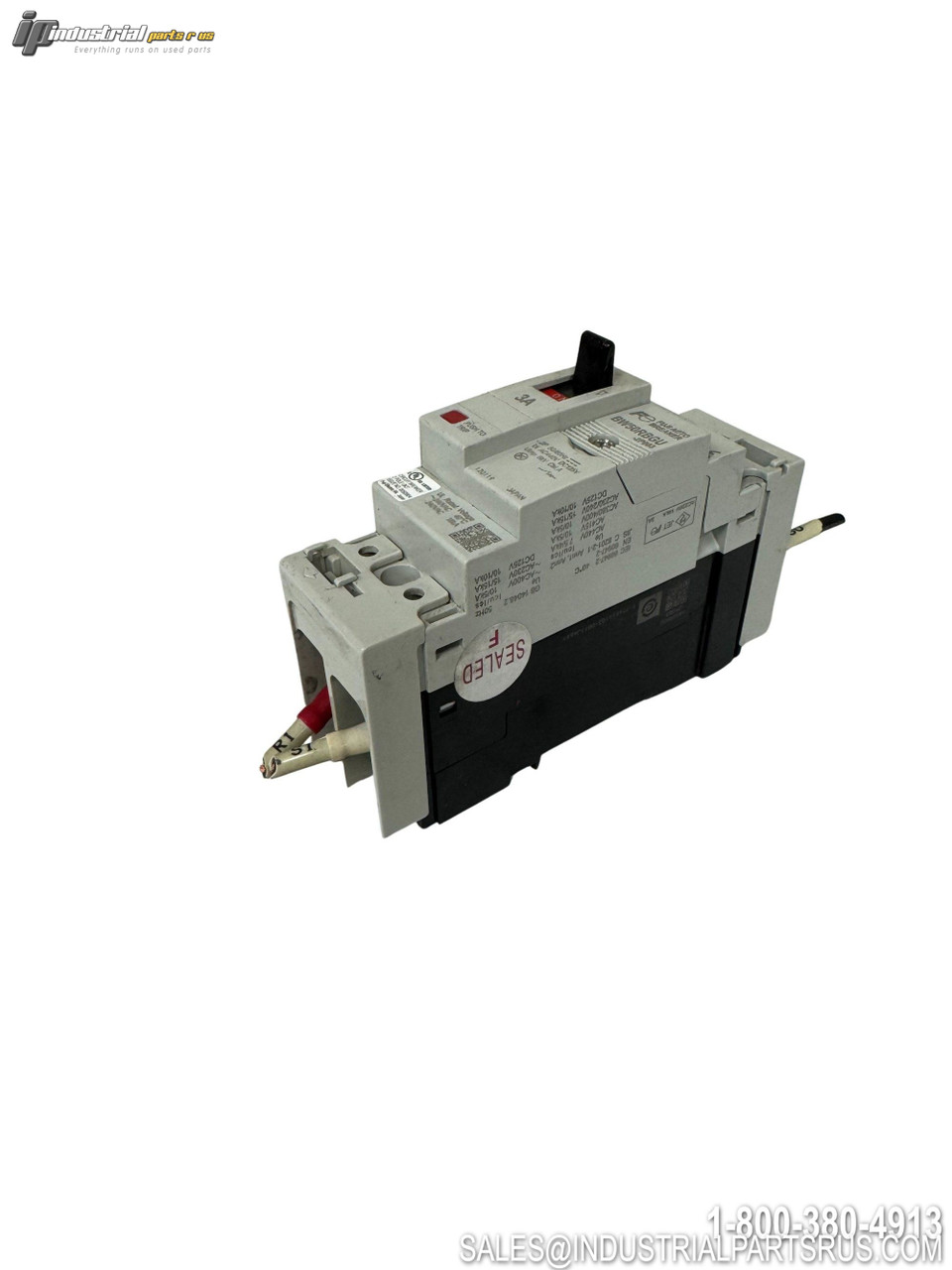

The Fuji Electric BW50RBGU-2P003 is a 2-pole Earth Leakage Circuit Breaker (ELCB) from the G-TWIN Global series, rated at 3 amperes with a 50AF (50 ampere frame) molded case construction. It provides combined overload, short circuit, and ground fault (earth leakage) protection at a 30mA sensitive trip current, conforming to international standards including UL489, CSA, IEC/EN (CE), GB (CCC), and JIS. The unit features hydraulic magnetic tripping, IP20 protection, RoHS-compliant cadmium-free contacts, and supports DIN rail or panel mounting. Accessories such as auxiliary switches, alarm switches, and shunt trip units can be installed in the field.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | BW50RBGU-2P003 |
| Product Type | Earth Leakage Circuit Breaker (ELCB) |
| Series | G-TWIN Global (Lambda) Series |
| Rated Current | 3A |
| Number of Poles | 2 |
| Frame Size (AF) | 50AF |
| Voltage Rating (AC) | 240VAC (UL listed) / 690VAC (IEC) |
| Voltage Rating (DC) | 250VDC |
| Interruption Type | Hydraulic Magnetic |
| Breaking Capacity Grade | R (High Interrupting Capacity) |
| Terminal Connection | Screw Terminals |
| Standards / Certifications | UL, CSA, IEC/EN (CE), GB (CCC), JIS |
| Compatible Accessories | Auxiliary switch, Alarm switch, Shunt trip (field installable) |
| Application | Line / Branch Circuit Protection, Ground Fault Protection |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail / Panel Mount
Current Rating 3A
Country/Region of Manufacture Japan
Full Load Amps 3A
Manufacturer Fuji
Enclosure Type Molded Case
Part Number BW50RBGU-2P003
Shelf K-66
Model BW50RBGU-2P003
MPN BW50RBGU-2P003
Voltage 240VAC / 690VAC (IEC) / 250VDC
Type Circuit Breaker
