Product Description

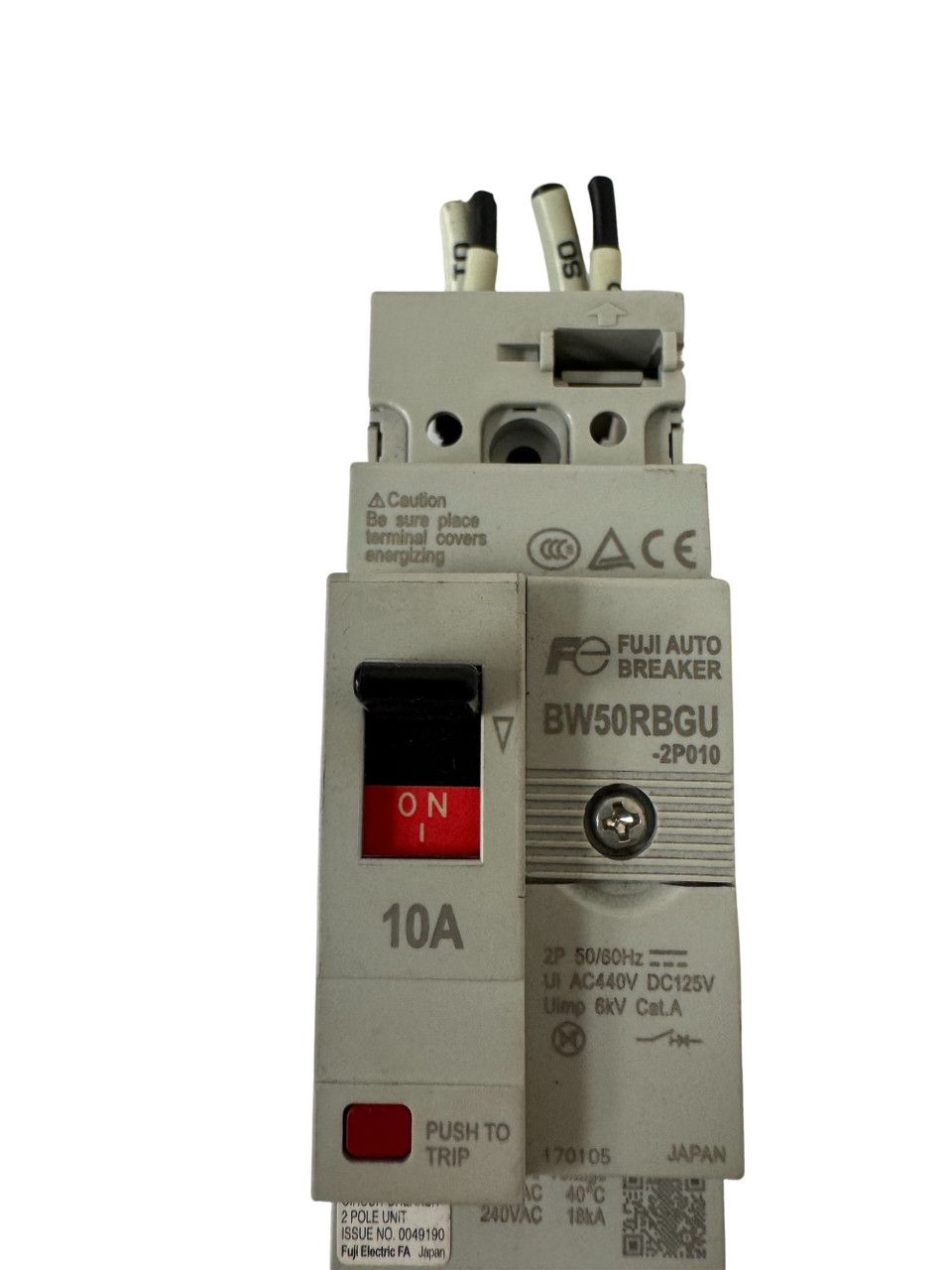

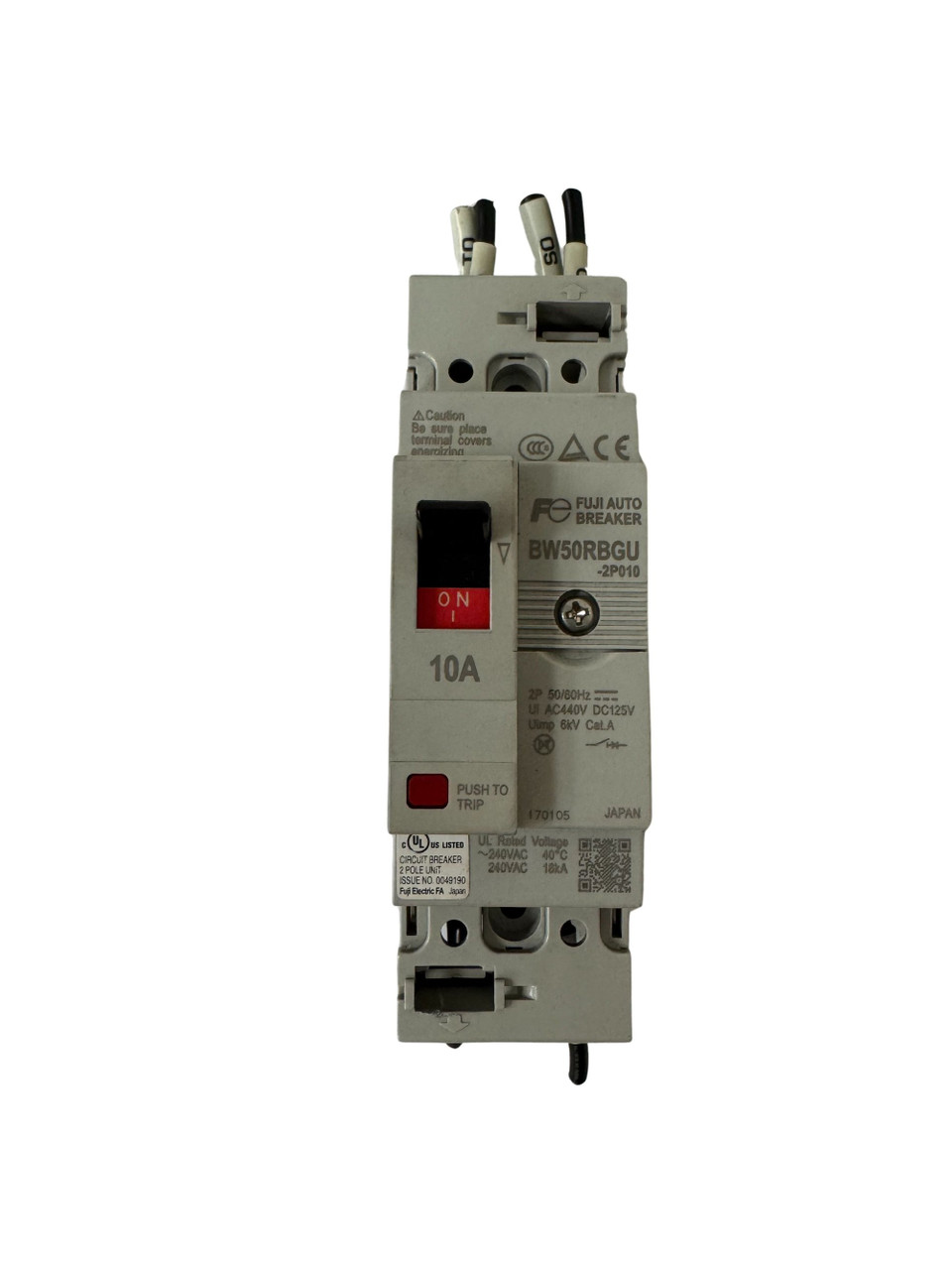

The Fuji Electric BW50RBGU-2P010 is a 2-pole, 10-amp molded case circuit breaker from the G-TWIN Lambda (BW series) global product line. It is designed for branch circuit and equipment protection in industrial and commercial applications, providing overcurrent and short-circuit protection with a 50A frame rating. The breaker features hydraulic-magnetic trip technology for time-delay overload and instantaneous short-circuit protection. It offers compatibility with a wide range of international power systems and supports DIN rail or screw panel mounting with screw-type terminals. Compatible wire gauge ranges from AWG 14 to AWG 6 (75°C copper wire).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | BW50RBGU-2P010 |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Series | G-TWIN Lambda (BW Series) |
| Number of Poles | 2 |
| Rated Current | 10A |
| Frame Size (AF) | 50AF |
| Voltage Rating (AC) | 690VAC |
| Voltage Rating (DC) | 250VDC |
| Breaking Capacity (Icu) | 18kA @ 690VAC (UL) |
| Mounting Method | DIN Rail / Screw Panel Mount |
| Terminal Type | Screw Terminal |
| Dimension Depth | 90mm |
| Certifications | UL Listed |
| Application | Branch circuit protection, industrial and commercial equipment |
| Accessories | Auxiliary switch, alarm switch, shunt trip (field installable) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style DIN Rail / Panel Mount
Current Rating 10 A
Country/Region of Manufacture Japan
Material Thermoplastic (Glass-Fiber Reinforced) Molded Case
Full Load Amps 10A
Manufacturer Fuji
Part Number BW50RBGU-2P010
Shelf K-66
Model BW50RBGU-2P010
MPN BW50RBGU-2P010
Voltage 690V AC / 250V DC
Type Circuit Breaker
