Product Description

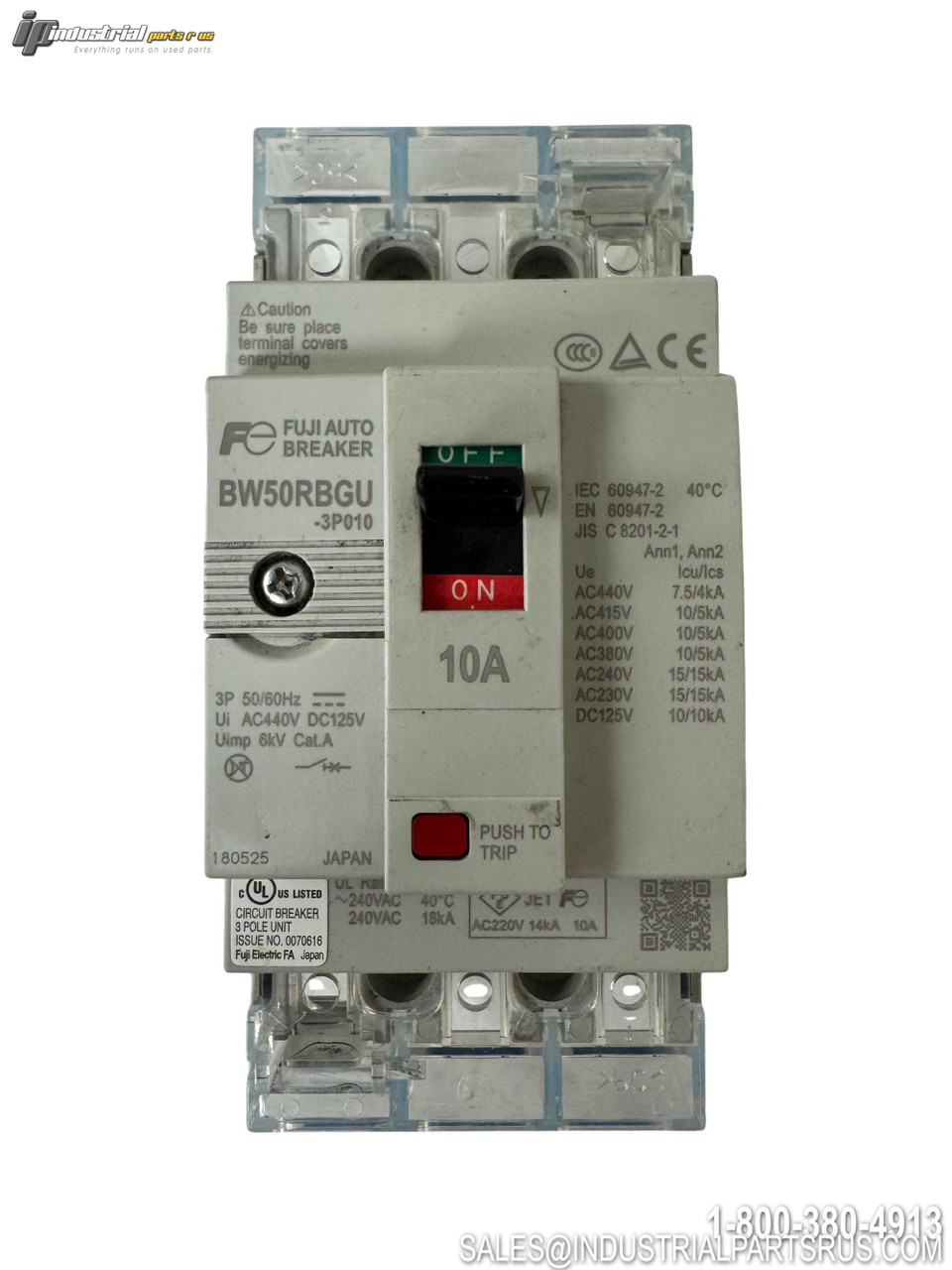

The Fuji Electric BW50RBGU-3P010 is a 3-pole molded case circuit breaker (MCCB) from the G-TWIN Λ (Lambda) Series, designed for line protection and branch circuit protection in industrial and commercial electrical systems. Rated at 10 amperes within a 50A ampere frame, it operates at up to 690V AC and 250V DC, providing reliable overcurrent and short-circuit protection via hydraulic magnetic tripping (instantaneous and thermal delay). The breaker supports DIN rail or screw panel mounting and accepts field-installable internal accessories including auxiliary switch, alarm switch, shunt trip, and under voltage release.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | BW50RBGU-3P010 3Pole |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Series | G-TWIN Λ (Lambda) |
| Number of Poles | 3 |
| Rated Current (In) | 10A |
| Ampere Frame | 50AF |
| Rated Voltage AC | 690V AC |
| Rated Voltage DC | 250V DC |
| Rated Insulation Voltage (Ui) | 690V AC / 250V DC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Breaking Capacity (Icu) @ 240V AC (UL489/cUL) | 18 kA |
| Rated Breaking Capacity (Icu) @ 440V AC (IEC 60947-2) | 10 kA |
| Utilization Category | Category A (line protection) |
| Mounting Method | DIN Rail / Screw Panel |
| Terminal Type | Screw (Surface type) |
| Rated Frequency | 50/60 Hz |
| Dimension Depth | 90 mm |
| Standards / Certifications | UL489, CAN/CSA 22.2 No.5 (cUL), IEC 60947-2, EN 60947-2 |
| Field-Installable Accessories | Auxiliary switch, Alarm switch, Shunt trip, Under voltage release |
| RoHS Compliance | Not RoHS Compliant |
| HTS Code | 8536200020 |
| ECCN | EAR99 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail / Screw Panel
Current Rating 10 A
Country/Region of Manufacture Japan
Material Thermoplastic (Molded Case)
Full Load Amps 10A
Manufacturer Fuji
Part Number BW50RBGU-3P010 3POLE
Shelf K-66
Model BW50RBGU-3P010 3POLE
MPN BW50RBGU-3P010 3POLE
Voltage 690V AC / 250V DC
Type Circuit Breaker
