Product Description

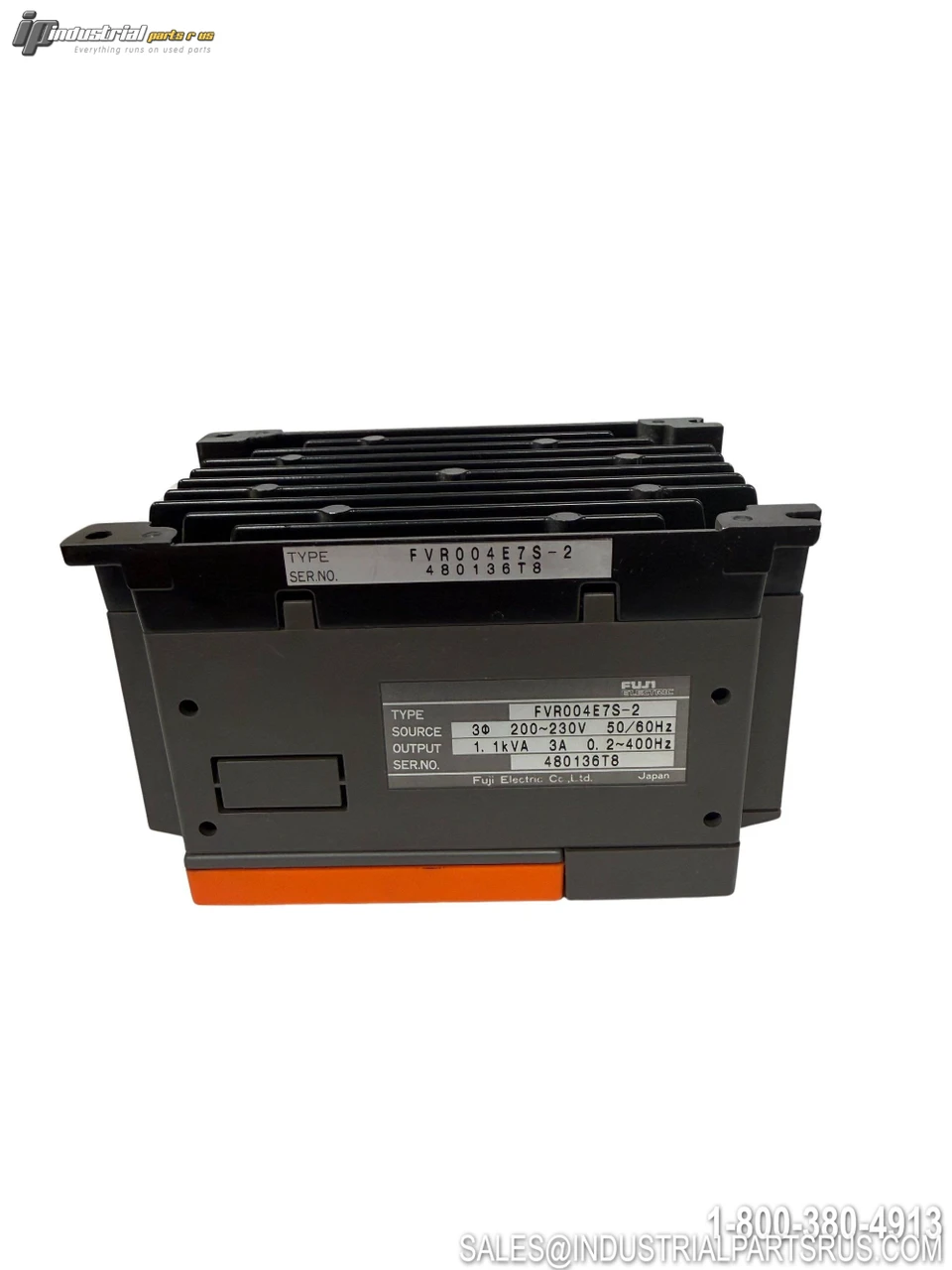

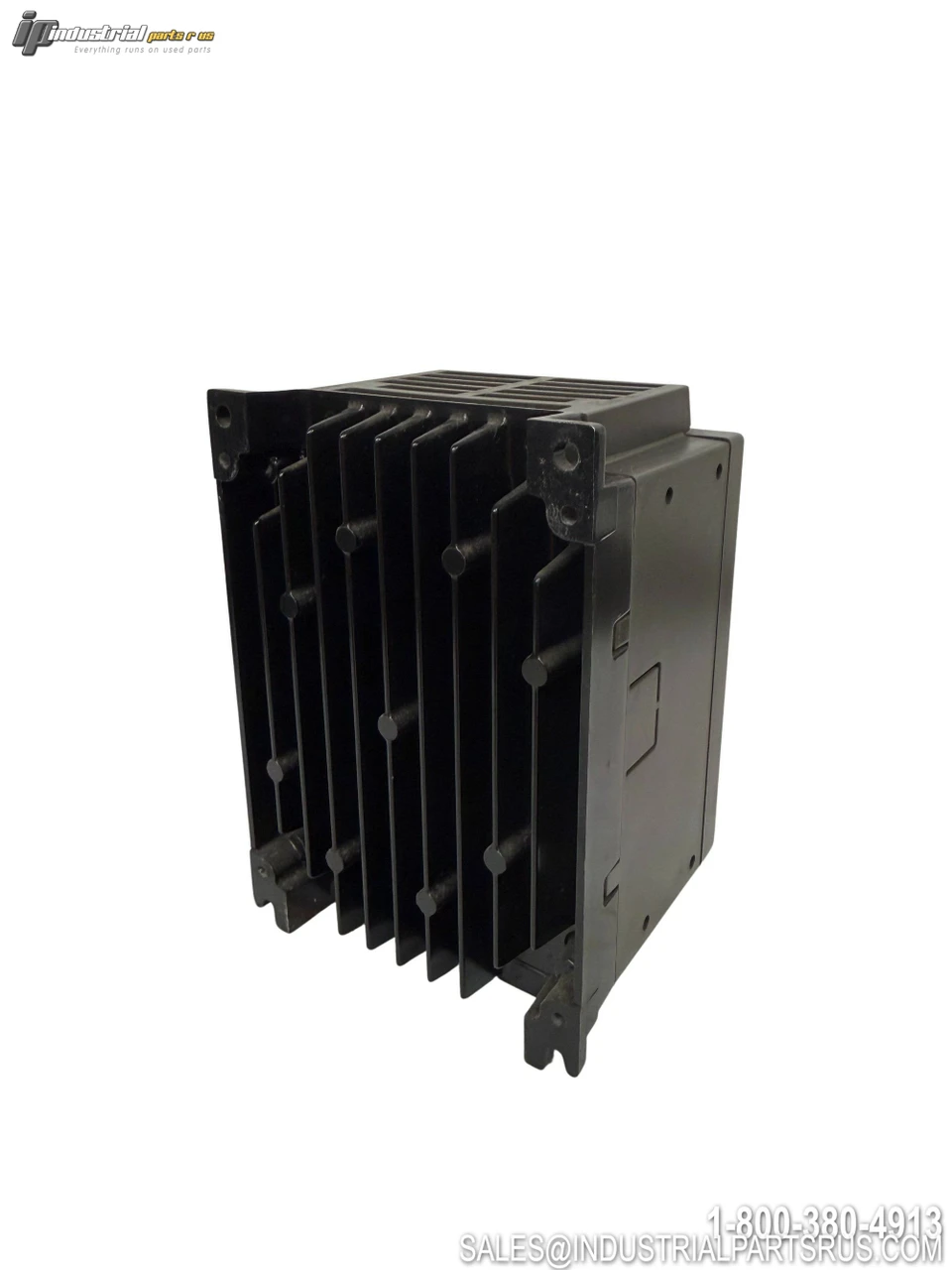

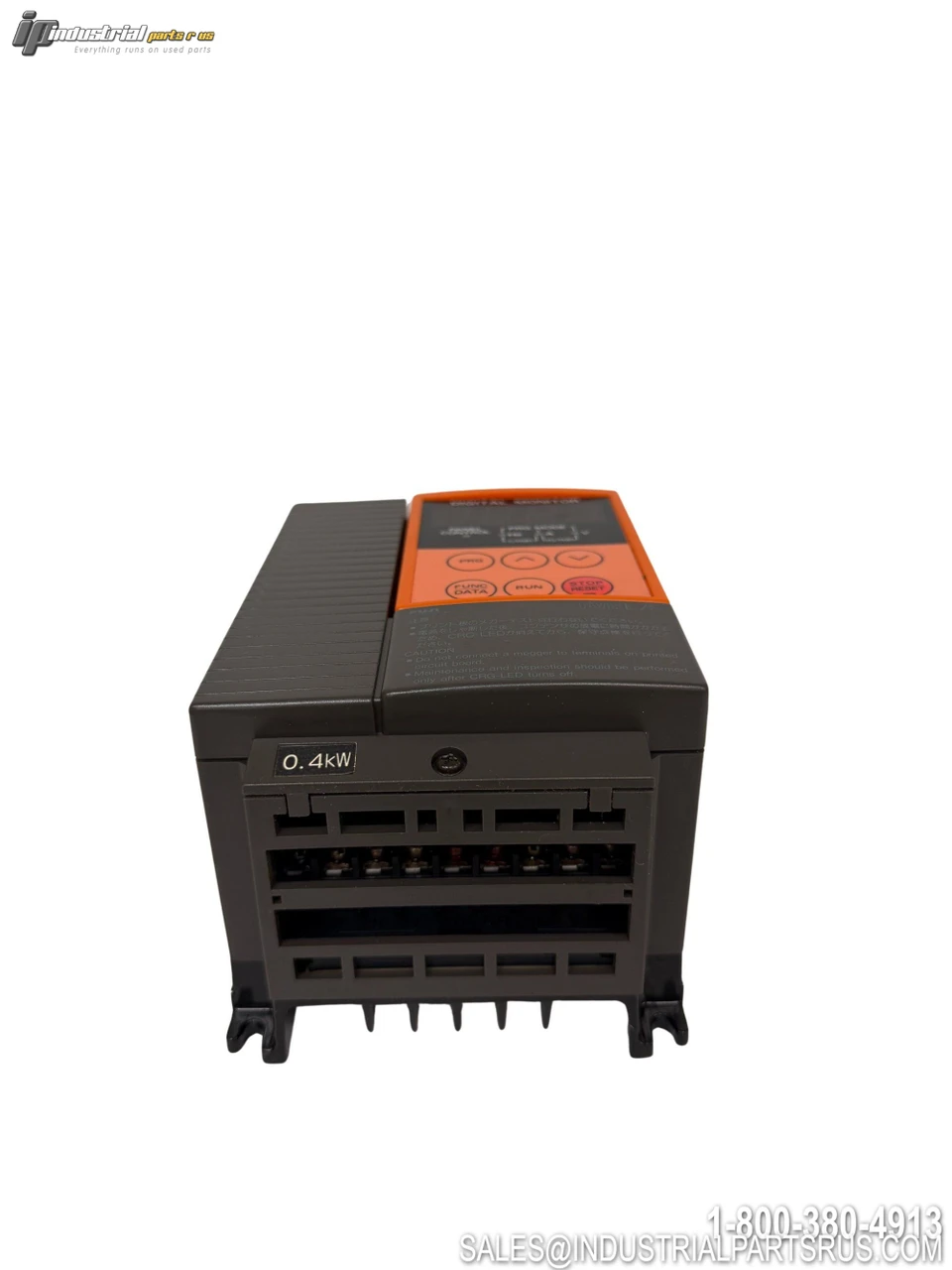

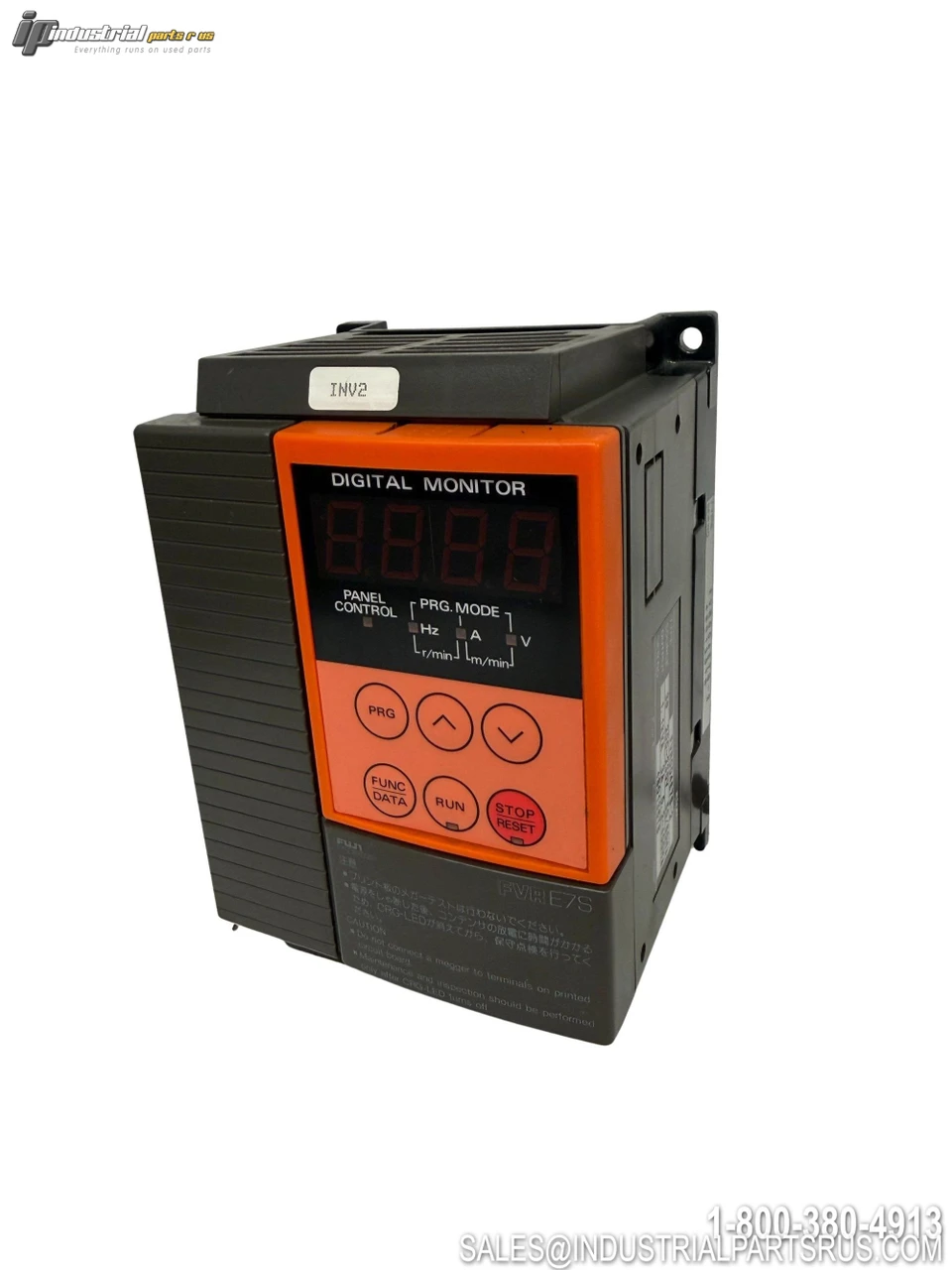

The Fuji Electric FVR004E7S-2 is a compact general-purpose variable frequency drive (VFD/inverter) from the FVR-E7S series, designed to control 3-phase AC induction motors rated at 0.4 kW. It accepts a 3-phase 200/230V AC input at 50/60Hz and delivers a variable frequency output from 0.2 to 400Hz with a rated output of 1.1 kVA at 3 amperes. The drive features a built-in digital monitor and provides protection functions including overload, short circuit, and over-voltage protection.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model / Part Number | FVR004E7S-2 |
| Series | FVR-E7S |
| Applicable Motor Power | 0.4 kW (0.5 HP) |
| Input Voltage | 200 / 230V AC |
| Input Phase | 3-Phase |
| Input Frequency | 50 / 60 Hz |
| Output Power (kVA) | 1.1 kVA |
| Rated Output Current | 3 A |
| Output Frequency Range | 0.2 ~ 400 Hz |
| Output Voltage | 3-Phase 200 / 230V AC (proportional to input) |
| Voltage Class | 200V Class (-2 suffix) |
| Control Method | V/f Control, Speed Control, Torque Control |
| Display / Monitor | Built-in Digital Monitor |
| Protection Functions | Overload, Short Circuit, Over-Voltage |
| Product Type | Variable Frequency Drive (VFD) / Inverter |
| Origin | Made in Japan |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Fuji Electric
Part Number FVR004E7S-2
Shelf E-19
Model FVR004E7S-2
MPN FVR004E7S-2
Type VFD
