Product Description

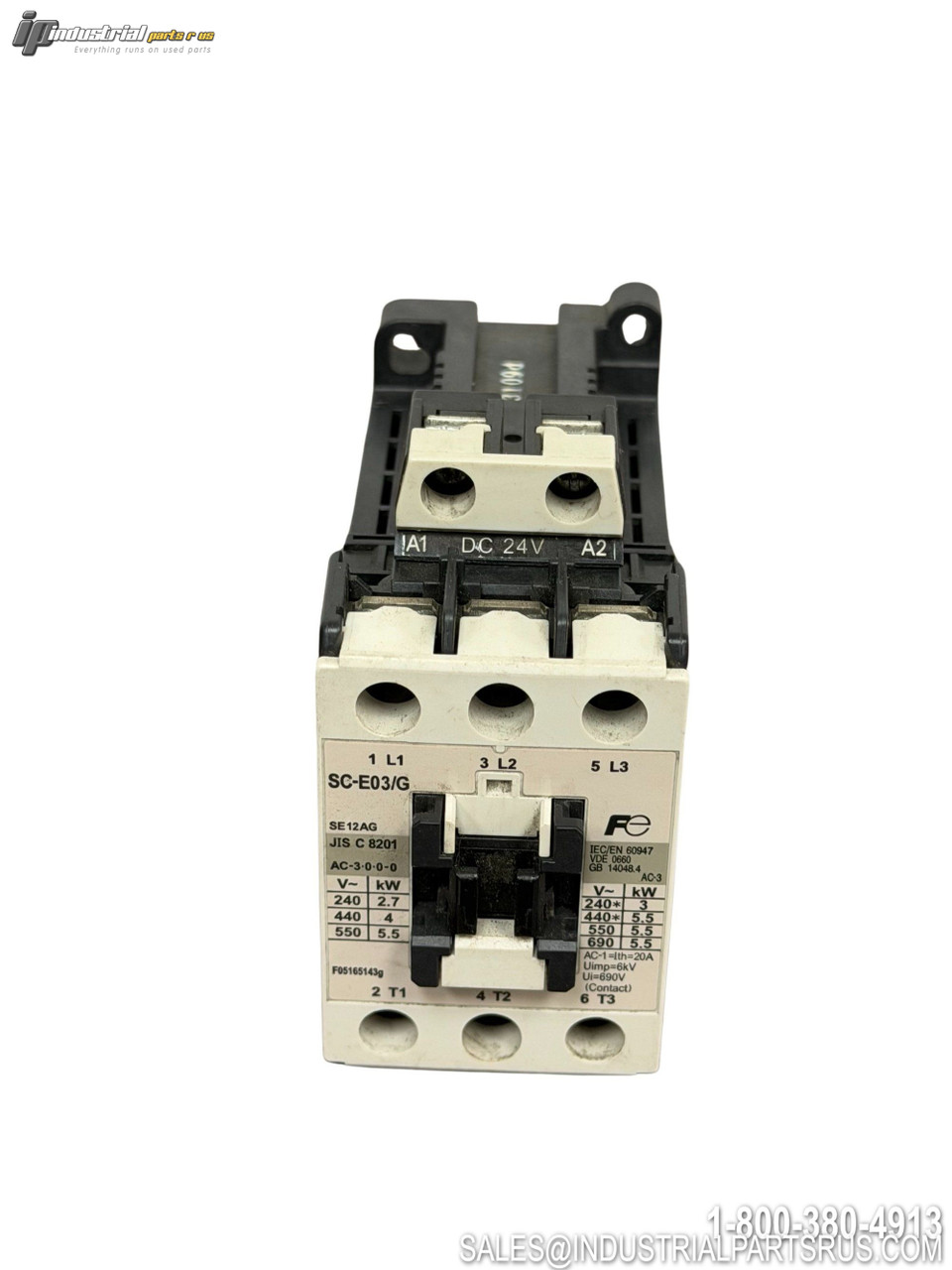

The Fuji Electric SC-E03/G is a 3-pole magnetic contactor designed for industrial motor control and switching applications. This unit features a 24VDC operating coil and is rated for 20A continuous current. The contactor includes three main power poles with terminals 1L1, 3L2, 5L3 and 2T1, 4T2, 6T3.
The nameplate provides AC-3 motor ratings for multiple operating voltages and identifies the unit as model SC-E03/G with type/code SE12AG. Please review all photos for the exact configuration, markings, terminals, and condition of the item being offered.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji Electric |
| Model | SC-E03/G |
| Type / Code | SE12AG |
| Product Type | Magnetic Contactor |
| Coil Voltage | 24VDC |
| Number of Main Poles | 3 |
| Continuous Current | 20A |
| Utilization Category | AC-3 |
| Rated Insulation Voltage (Ui) | 690V |
| Impulse Withstand Voltage (Uimp) | 6kV |
| AC-3 Rating @ 240V | 3 kW |
| AC-3 Rating @ 440V | 5.5 kW |
| AC-3 Rating @ 550V | 5.5 kW |
| AC-3 Rating @ 690V | 5.5 kW |
| Main Input Terminals | 1L1, 3L2, 5L3 |
| Main Output Terminals | 2T1, 4T2, 6T3 |
| Coil Terminals | A1 / A2 |
| Standards / Markings | IEC/EN 60947, VDE 0660, JIS C 8201, UL, CE, TÜV, CCC |
| Country of Manufacture | China |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style DIN Rail
Current Rating 12A
Material Recycled Thermoplastic Resin
Full Load Amps 20A
Manufacturer Fuji Electric
Part Number SC-E03/G
Series DUO SC-E Series
Shelf C-11 Tub 2
Model SC-E03/G
Coil Voltage 24V DC
Horsepower 3 HP
MPN SC-E03/G
Type Contactor
