Product Description

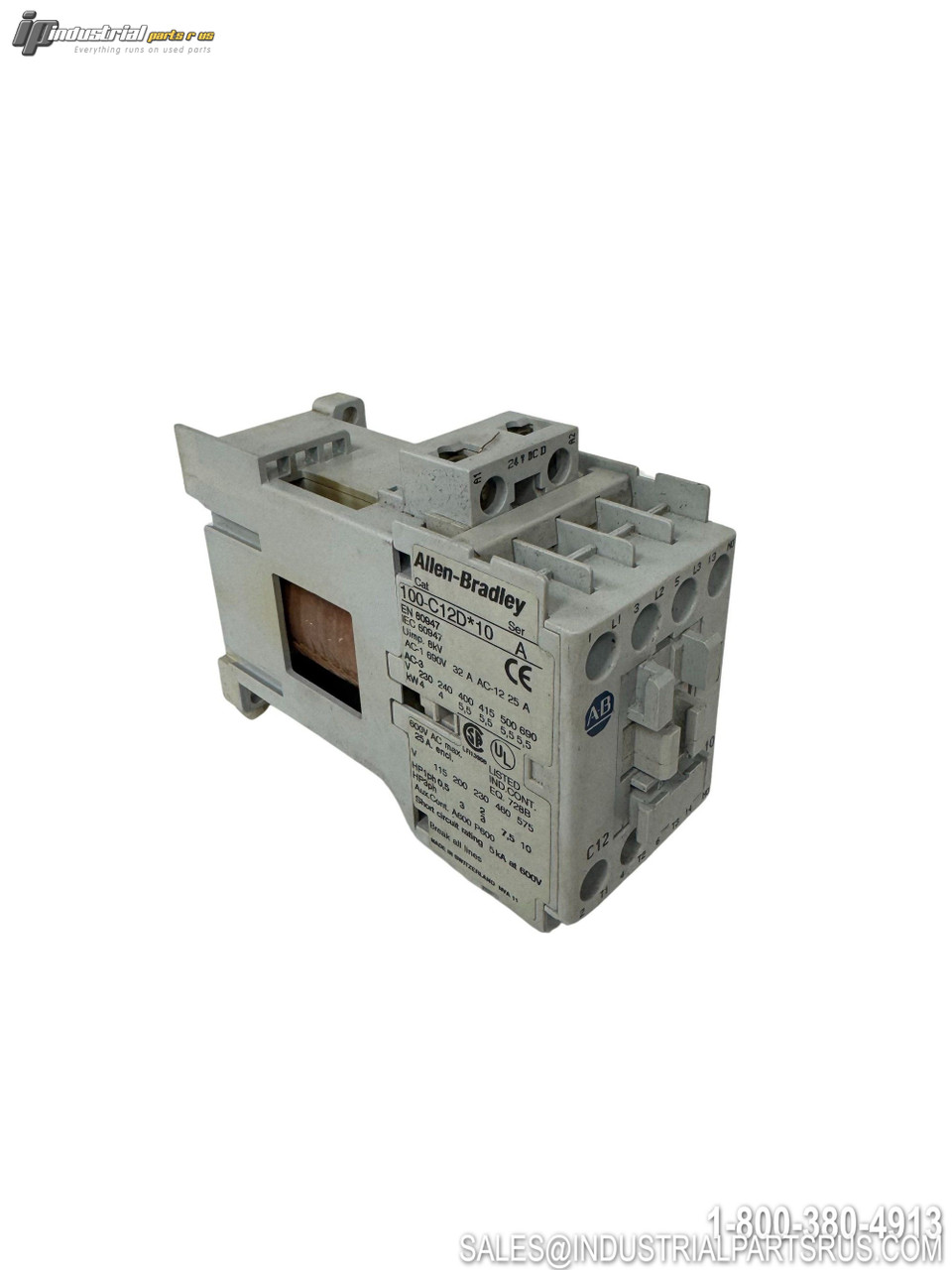

The Allen-Bradley 100-C12D*10 is a compact 3-pole IEC contactor designed for controlling motors and other loads up to 12 amperes. This Bulletin 100-C series contactor features space-saving design with high performance and low power consumption, making it ideal for motor control applications in industrial automation systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 100-C12D*10 |
| Product Family | Bulletin 100-C |
| Type | IEC Contactor |
| Current Rating (AC-3) | 12 Amps |
| Current Rating (AC-1) | 32 Amps |
| Number of Poles | 3 |
| Coil Voltage | 110V 50Hz / 120V 60Hz AC |
| Auxiliary Contacts | 1 Normally Open |
| Terminal Type | Screw Terminals |
| Mounting Type | DIN Rail or Base Mount |
| Rated Voltage | Up to 690V AC |
| Motor Rating at 230V | 3 HP |
| Motor Rating at 460V | 7.5 HP |
| Enclosure Protection | IP20 |
| Coil Termination | Line Side |
| Load Type | Motor Load |
| Certifications | UL, CSA, IEC, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail Mount
Current Rating 12 A
Material Thermoplastic Housing
Full Load Amps 12
Manufacturer Allen-Bradley
Enclosure Type IP20
Part Number 100-C12D*10
Series Bulletin 100-C
Shelf C-14
Model 100-C12D*10
Coil Voltage 120VAC
Horsepower 3 HP at 230V, 7.5 HP at 460V
MPN 100-C12D*10
Type Contactor
