Product Description

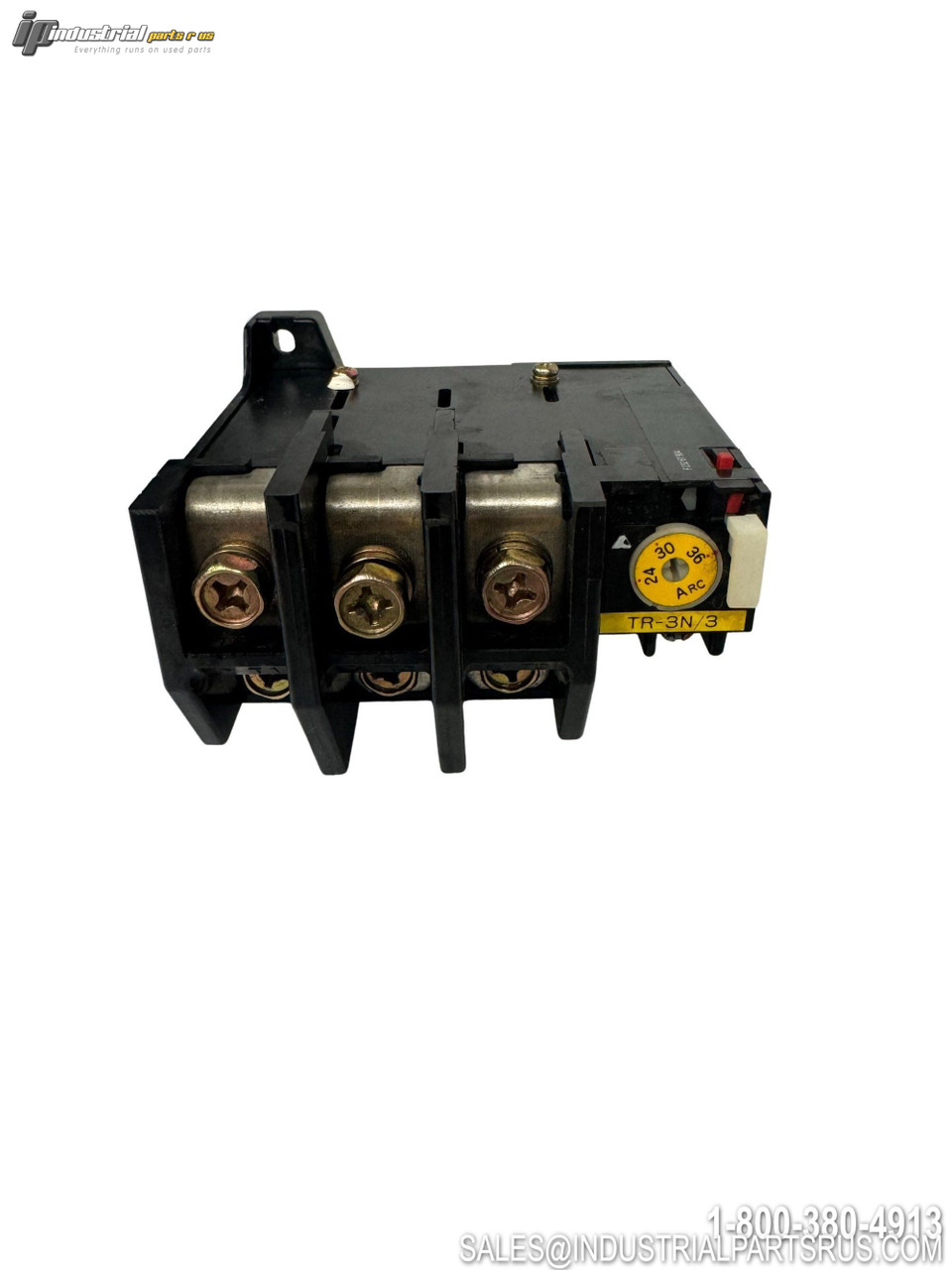

The Fuji Tr-3n/3 is a thermal overload relay designed to provide overload protection for low voltage induction motors. This 3-pole thermal overload relay features adjustable current settings to give motors positive over-current protection and includes ambient temperature compensation to maintain performance despite temperature changes.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fuji |
| Model/Part Number | Tr-3n/3 |
| Type | Thermal Overload Relay |
| Poles | 3 |
| Maximum Voltage | 600 VAC |
| Class | 10 |
| Mounting Type | Separate/Direct Mount |
| Reset Type | Push to Reset |
| Contact Configuration | 1NO + 1NC |
| Temperature Compensation | Yes |
| Compatible Contactors | SC-N2S, SC-N3 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Fuji
Part Number TR-3N/3
Shelf K-3
Model TR-3N/3
MPN TR-3N/3
Type Overload Relay
