Product Description

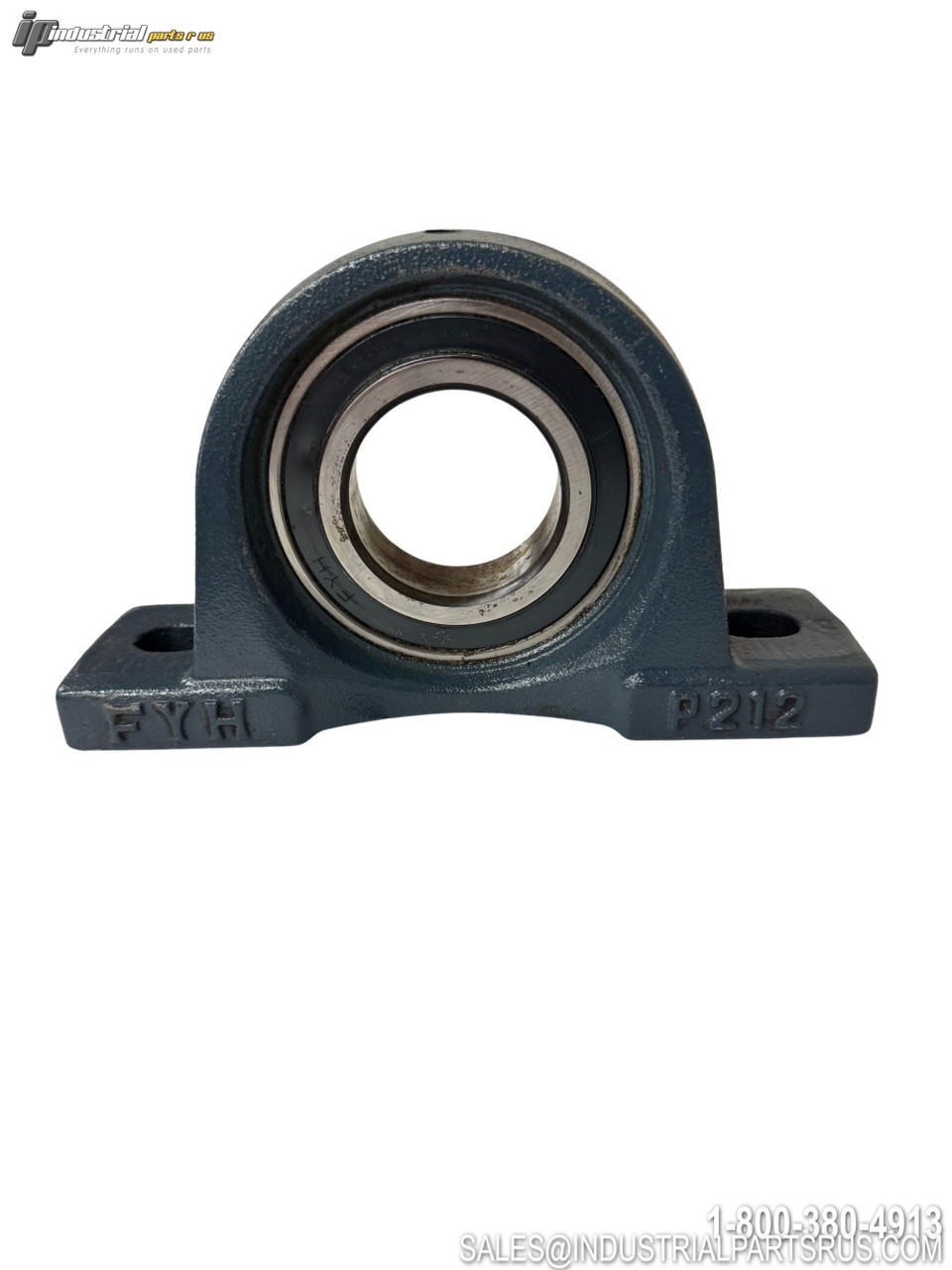

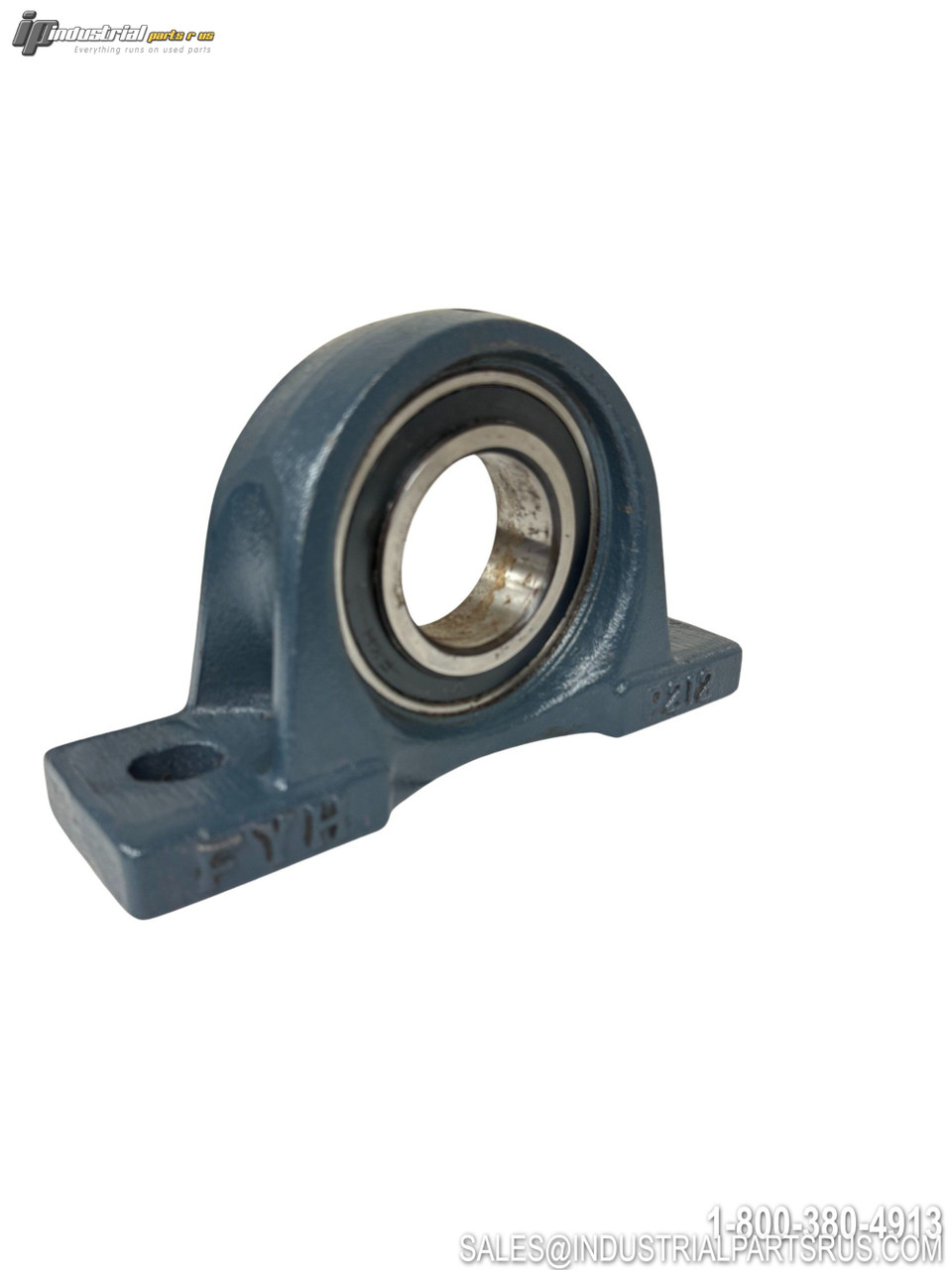

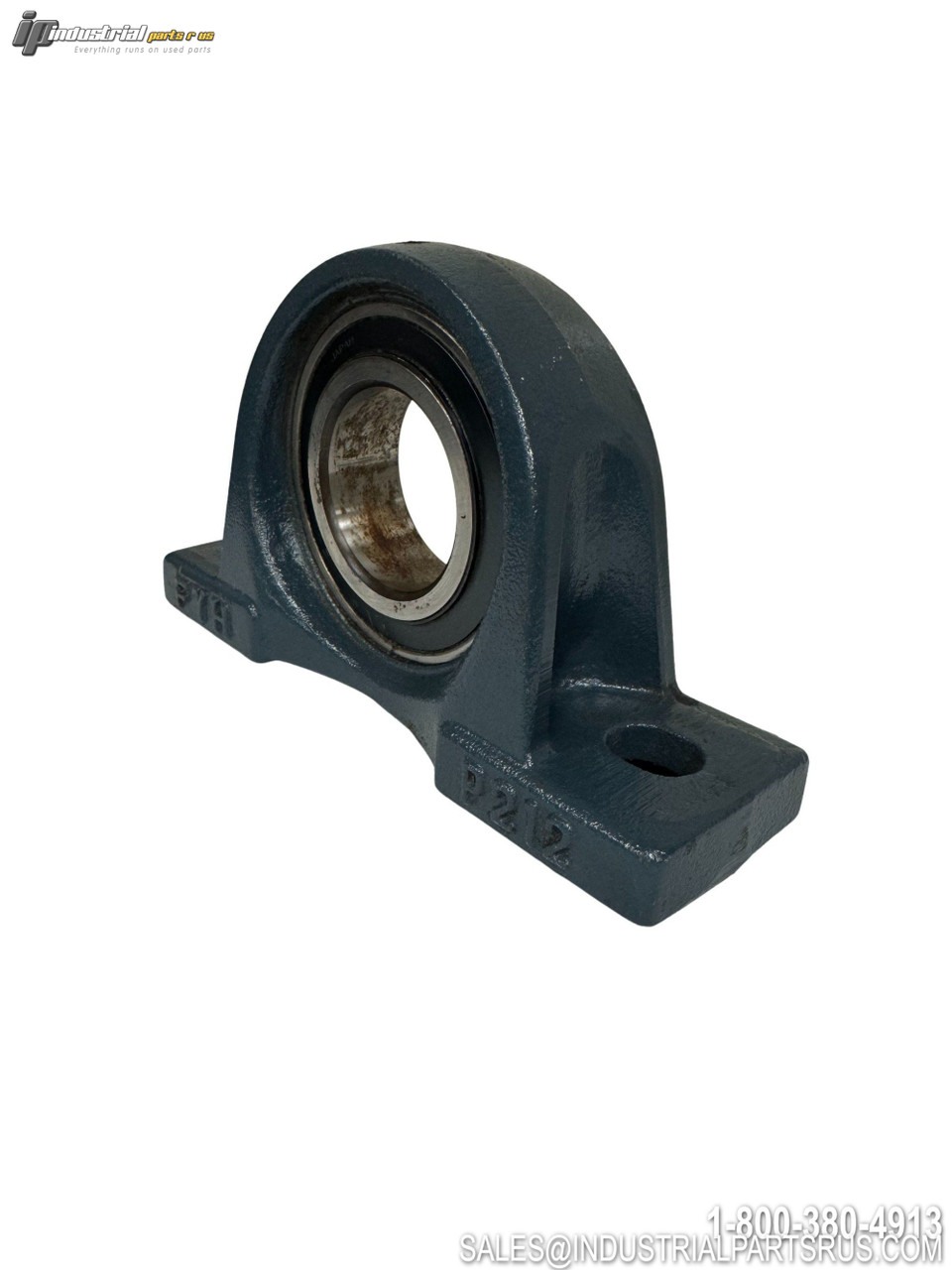

The FYH P212 is a cast iron pillow block bearing housing designed for industrial applications requiring rigid shaft support. This 2-bolt foot-mounted housing accepts UC212 insert bearings and provides reliable, durable performance in various mounting configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | FYH |
| Model/Part Number | P212 |
| Material | Cast Iron |
| Shaft Diameter | 60mm (2-1/4" to 2-7/16") |
| Mounting Type | 2-Bolt Foot Mount |
| Compatible Insert Bearing | UC212 |
| Overall Length (L) | 241mm (9.5") |
| Height (H) | 69.8mm (2.75") |
| Overall Height (H2) | 138mm (5.39") |
| Bolt Spacing (J) | 184mm (7.24") |
| Base Width (A) | 70mm |
| Bolt Size | M16 |
| Bolt Hole Diameter (N) | 20mm (.78") |
| Series | P200 |
| Standard | JIS |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Cast Iron
Manufacturer FYH
Shaft Diameter 60mm
Part Number P212
Shelf A-3
Bore Diameter 60 mm
Model P212
MPN P212
Type Pillow Block
