Product Description

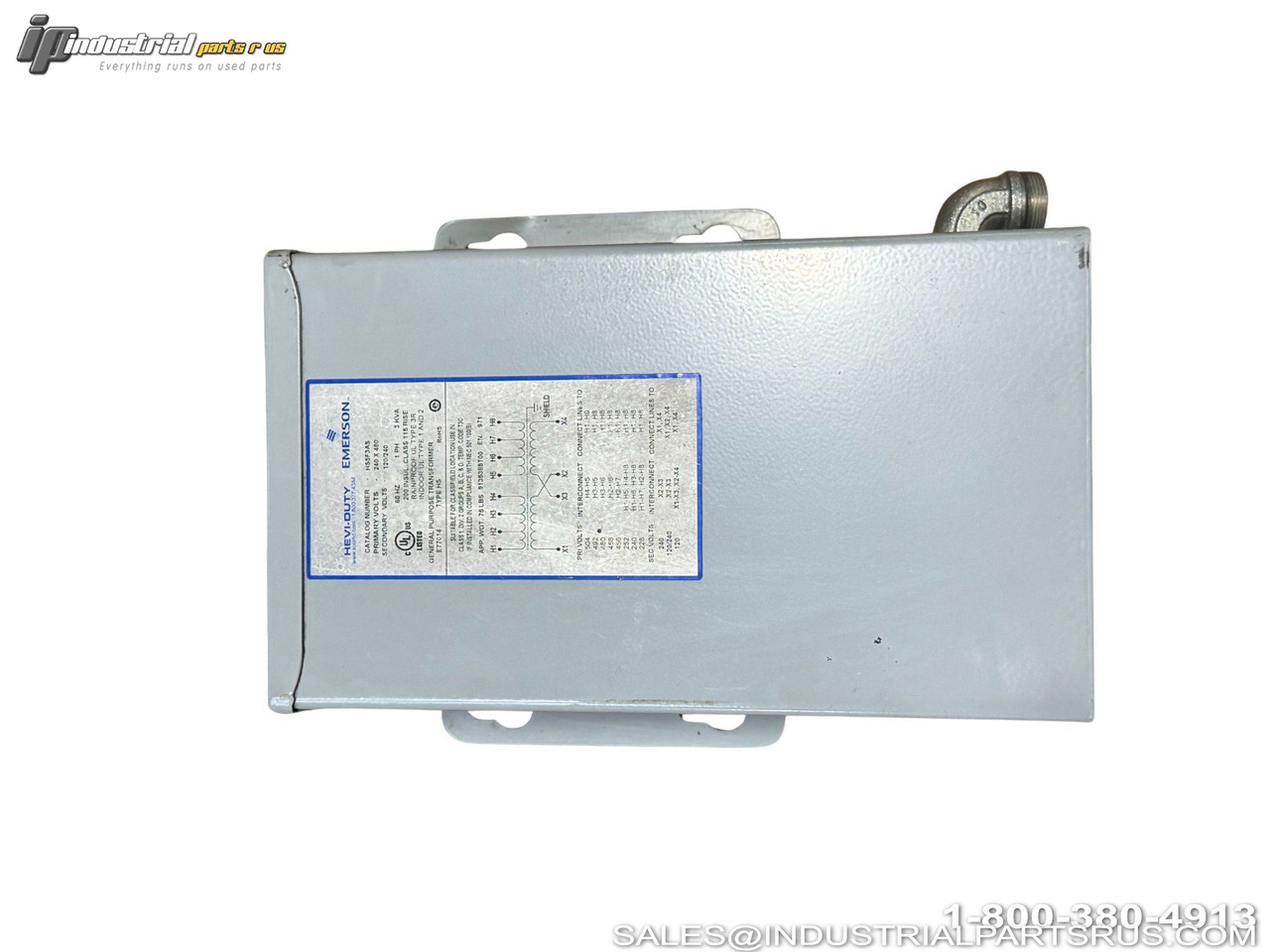

The Hevi-Duty (SolaHD) HS5F3AS is a 3 kVA single-phase, encapsulated non-ventilated automation transformer designed for use in hazardous locations and harsh industrial environments. It features a 240/480 VAC primary and 120/240 VAC secondary with electrostatic shielding for clean, reliable power delivery. The transformer is housed in a rugged NEMA 3R rolled steel enclosure with aluminum windings and epoxy encapsulation, suitable for both indoor and outdoor wall-mount installations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hevi-Duty / SolaHD |
| Model / Part Number | HS5F3AS |
| Product Type | Encapsulated Non-Ventilated Automation Transformer |
| Series | HS5 |
| kVA Rating | 3 kVA (3000 VA) |
| Phase | 1-Phase |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Frequency | 50/60 Hz |
| Secondary Current (Max) | 25 A (120V) / 12.5 A (240V) |
| Primary Current (Max) | 15.6 / 62.5 / 31.3 A |
| Insulation Class | Class N (UL 200°C) |
| Temperature Rise | 115°C (239°F) |
| Enclosure Type | NEMA 3R (UL Type 3R) |
| Mounting Type | Wall Mount |
| Connection Type | Wire Lead / Conduit Knockout |
| Housing Material | Rolled Steel |
| Winding Material | Aluminum |
| Shielded | Yes (Electrostatically Shielded) |
| Encapsulation | Electrical Grade Silica and Epoxy |
| Dimensions (H x W x D) | 13 in x 10 in x 7 in |
| Hazardous Location Rating | Class I, Division 2, Group A-D (NEC 501.100(B)) |
| Certifications | cULus (E25872/E77014), UL 1561, UL 506, CSA C22.2 No. 47, RoHS, ARRA/Buy American Act Compliant |
| Manufacturer | Emerson / SolaHD (Sola/Hevi-Duty) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer Hevi-Duty
Enclosure Type NEMA 3R
Part Number HS5F3AS
Shelf I-18
Model HS5F3AS
MPN HS5F3AS
Type Transformer
