Product Description

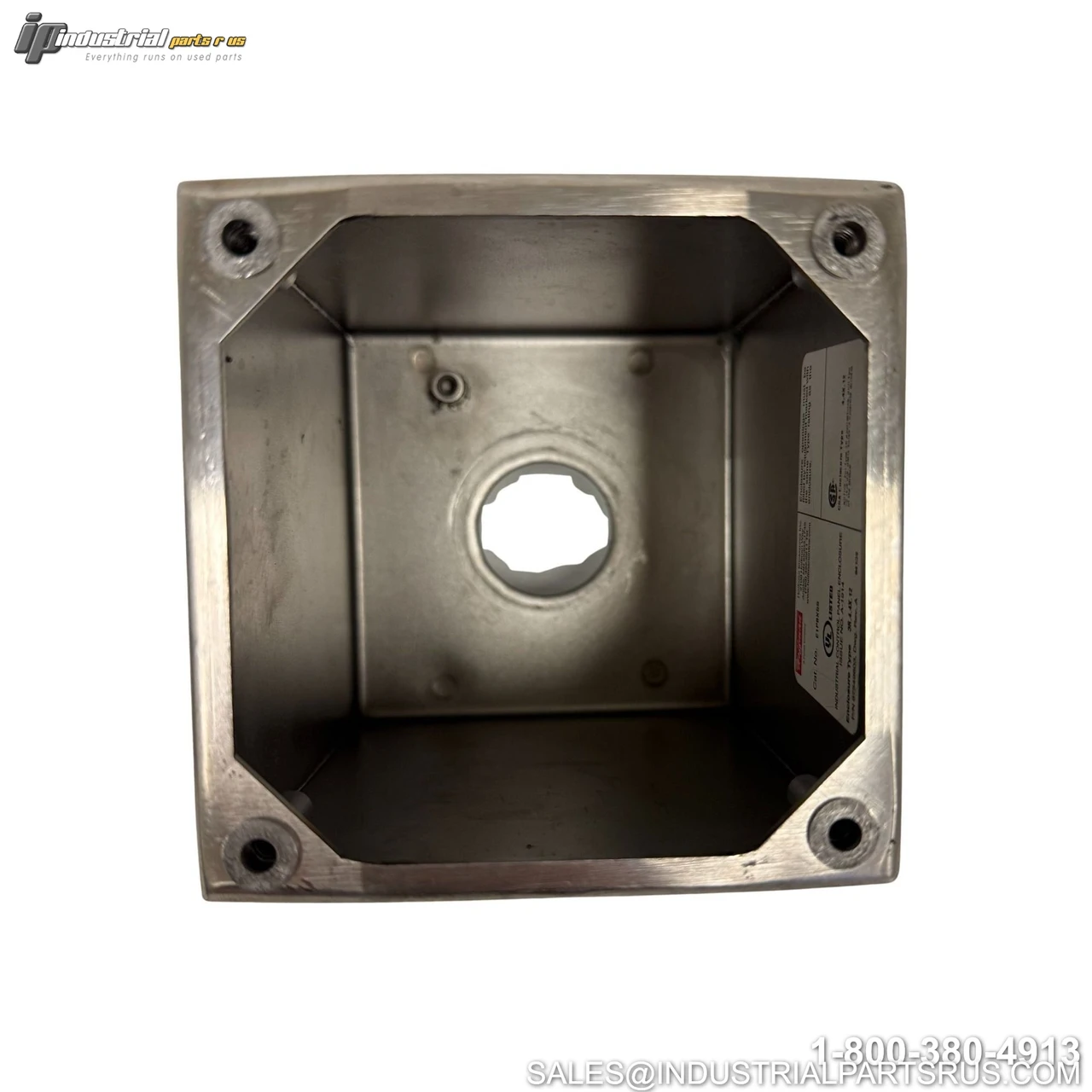

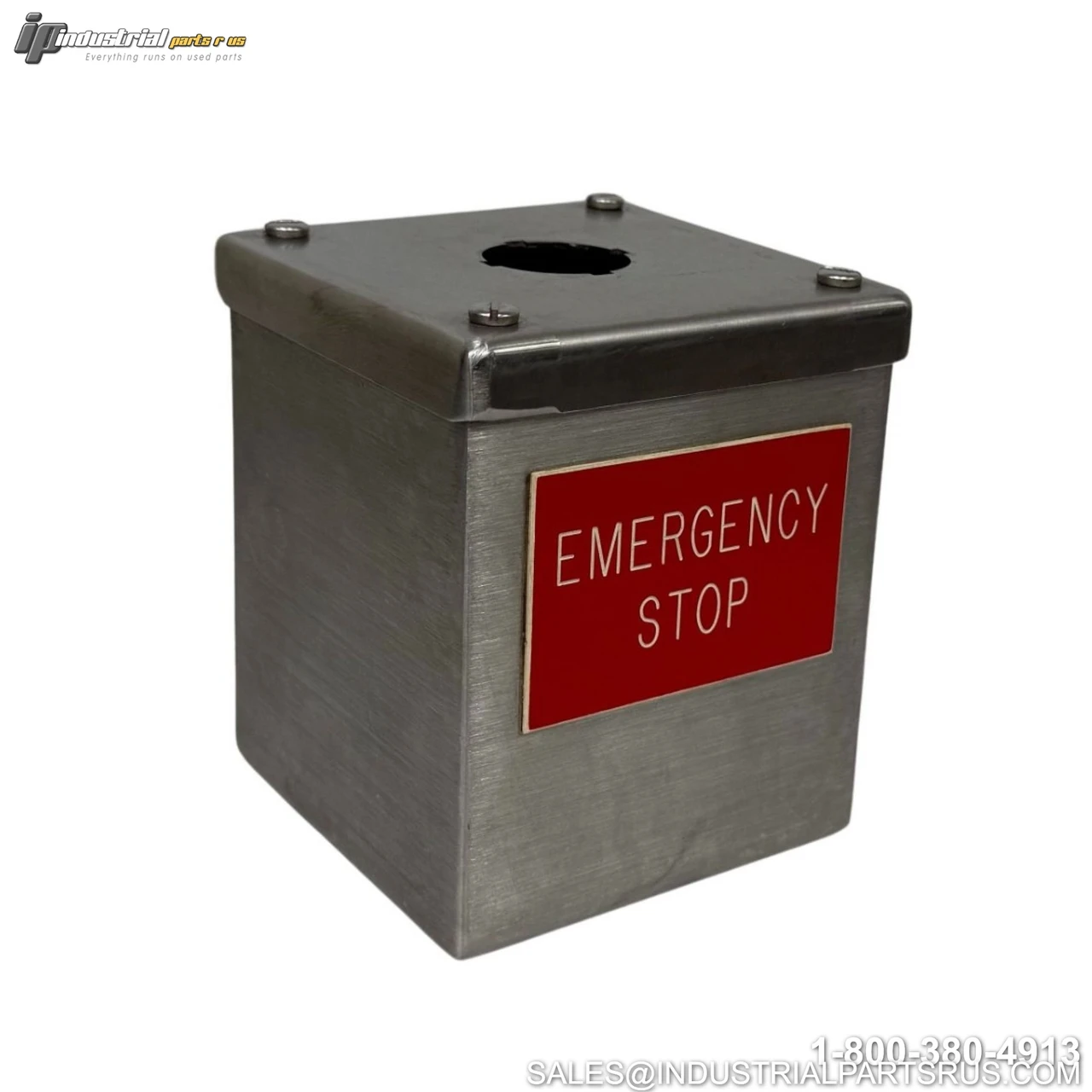

The Hoffman E1PBXSS is an extra-deep, Type 4X stainless steel pushbutton enclosure designed to house 30.5 mm oil-tight pushbuttons, switches, and pilot lights. Constructed from Type 304 stainless steel with a #4 smooth brushed finish, it features seams that are continuously welded and ground smooth for superior environmental protection. The extra-deep body accommodates additional contact blocks for pushbuttons and is rated NEMA 4X/12/13 and IP66 for protection against dirt, dust, oil, and water.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hoffman (nVent Hoffman) |
| Model / Part Number | E1PBXSS |
| Series | PB1S (Pentair Stainless Series) |
| Product Type | Extra-Deep Pushbutton Enclosure |
| NEMA Rating | NEMA 4, 4X, 12, 13 |
| IP Rating | IP66 |
| Height | 4 in (102 mm) |
| Width | 4 in (102 mm) |
| Depth | 4.75 in (121 mm) |
| Overall Dimensions (H x W x D) | 4 x 4 x 4.75 in (102 x 102 x 121 mm) |
| Material | Type 304 Stainless Steel |
| Finish | #4 Smooth Brushed |
| Body Gauge | 14 Gauge |
| Cover Gauge | 16 Gauge |
| Number of Holes | 1 |
| Hole Size | 30.5 mm (Standard Oil-Tight) |
| Hole Position | 1-Row Vertical |
| Cover Type | Screw / Hinged |
| Mounting Type | Panel Mount (External Feet) |
| Gasket Type | Oil-Resistant |
| Grounding | Bonding Provision on Door; Grounding Nut on Body |
| Color | Natural / Unpainted Stainless |
| Weight | 2.5 lbs (1.1 kg) |
| Approvals / Standards | UL 508A Listed (File E61997), cUL per CSA C22.2 No. 94, IEC 60529, NEMA/EEMAC 4X/12/13, CSA File 42186 |
| RoHS Compliant | Yes |
| Application | Controls, Corrosive Environments, Hygienic Environments |
| Compatible With | 30.5 mm Oil-Tight Pushbuttons, Switches, Pilot Lights (All Brands) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Mounting Style External Feet
Country/Region of Manufacture United States
Dimensions 4 x 4 x 4.75 in (102 x 102 x 121 mm)
Material Type 304 Stainless Steel
Manufacturer Hoffman
Empty Weight 2.5 lbs (1.1 kg)
Enclosure Type Extra-Deep Pushbutton Enclosure
Part Number E1PBXSS
Controller Platform Pentair Stainless Series
Series PB1S
Shelf I-17
Model E1PBXSS
MPN E1PBXSS
Type Electrical Enclosure
