Product Description

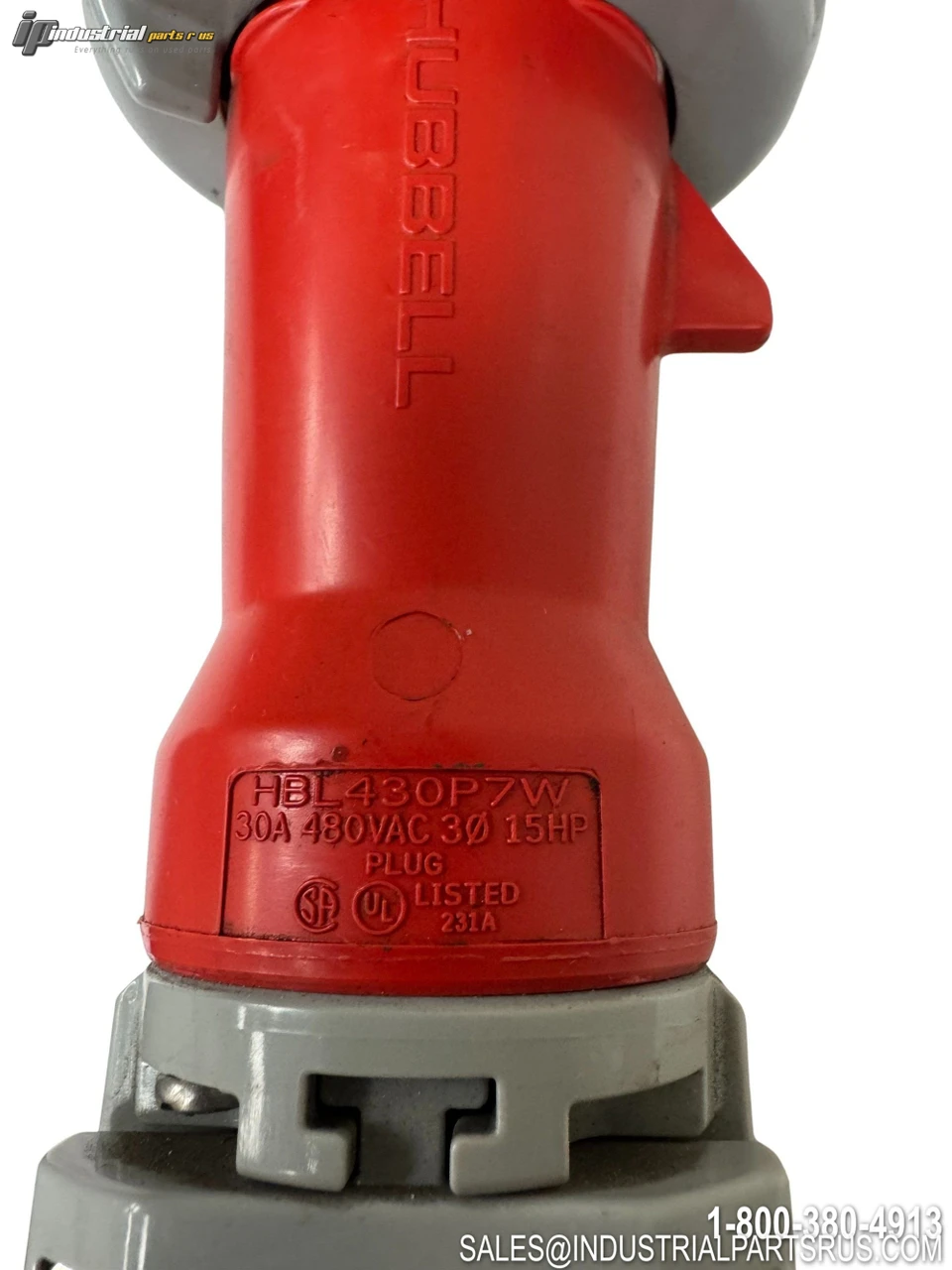

The Hubbell HBL430P7W is a heavy-duty industrial-grade IEC 60309 watertight male pin and sleeve plug rated for 30A at 480V AC, three-phase (3-pole, 4-wire with ground). Part of Hubbell Wiring Device-Kellems' HBL series, it features a rugged one-piece composite (nylon) housing, silver-plated solid brass pins, thermoset polyester contact carriers, and a neoprene gasketed sealing system to achieve an IP67/IP69K ingress protection rating. The cord-mounted design with an external heavy-duty cord grip provides superior strain relief for portable, high-ampacity industrial power connections including use as a horsepower-rated disconnecting means per NEC 430.109(F).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hubbell Wiring Device-Kellems |
| Model / Part Number | HBL430P7W |
| Product Type | IEC 60309 Pin & Sleeve Male Plug (Watertight) |
| Amperage | 30A |
| Voltage (Rated) | 480V AC, 3-Phase Delta |
| Maximum Working Voltage | 600V AC RMS |
| Dielectric Voltage Rating | 3,000V AC Min |
| Number of Poles | 3-Pole |
| Number of Wires | 4-Wire (3P + Ground) |
| Number of Contacts | 4 |
| Phase | 3-Phase |
| Grounding | Yes |
| Enclosure / Ingress Protection | IP67, IP68, IP69K / Watertight (UL Type 4X) |
| Mounting Type | Cord Mount (Portable) |
| Terminal Type | Pressure Screw / Terminal Screws |
| Conductor / Wire Size | #12 AWG to #8 AWG |
| Maximum Cable OD | 1.25 in |
| Housing / Body Material | Composite (Heavy-Duty Non-Conductive Nylon), One-Piece |
| Contact Material | Silver-Plated Solid Brass Pins |
| Contact Carrier | High-Impact Thermoset Polyester |
| Cord Clamp Material | Rynite SST35 |
| Sealing Gasket | Neoprene |
| Color | Red |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Dimensions (Dia x L) | 3.74 in x 8.05 in |
| Weight | 1.3 lbs |
| Series | HBL (IEC 60309) |
| NEMA Designation | Non-NEMA |
| Standard / Compliance | IEC 60309-1 / IEC 60309-2 |
| Certifications | UL Listed (UL 498/1682/1686), CSA Certified (File No. LR280C, CSA C22.2 No. 182.3), RoHS Compliant |
| Flammability Rating | HB or Better per UL 94 / CSA C22.2 |
| Current Interrupting | Certified for current interrupting at full rated current |
| NEC Compliance | Meets NEC 430.109(F) – HP Rated Disconnecting Means |
| Mates With | HBL430C7W (Connector), HBL430R7W (Receptacle), HBL430B7W (Flanged Inlet) |
