Product Description

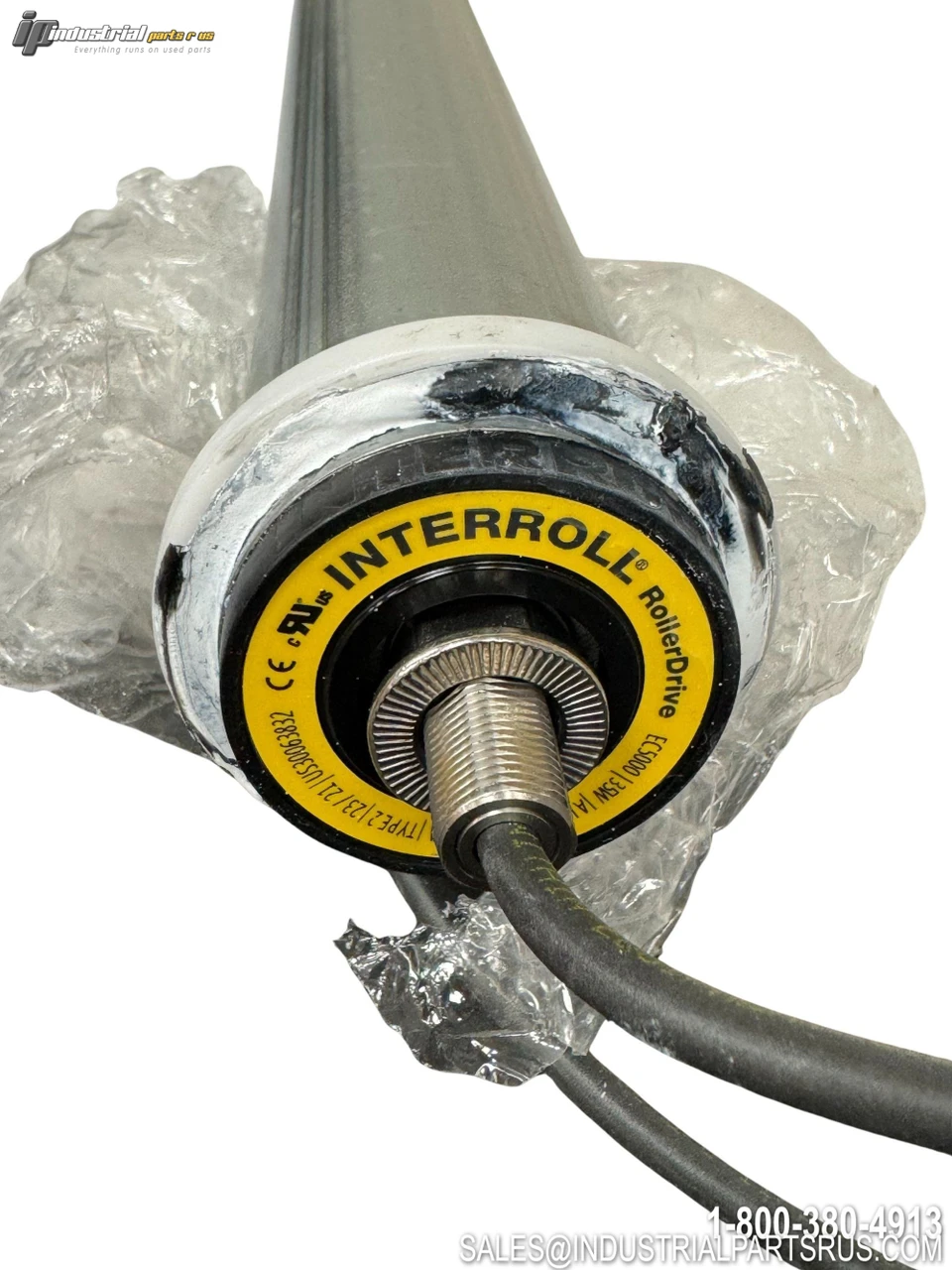

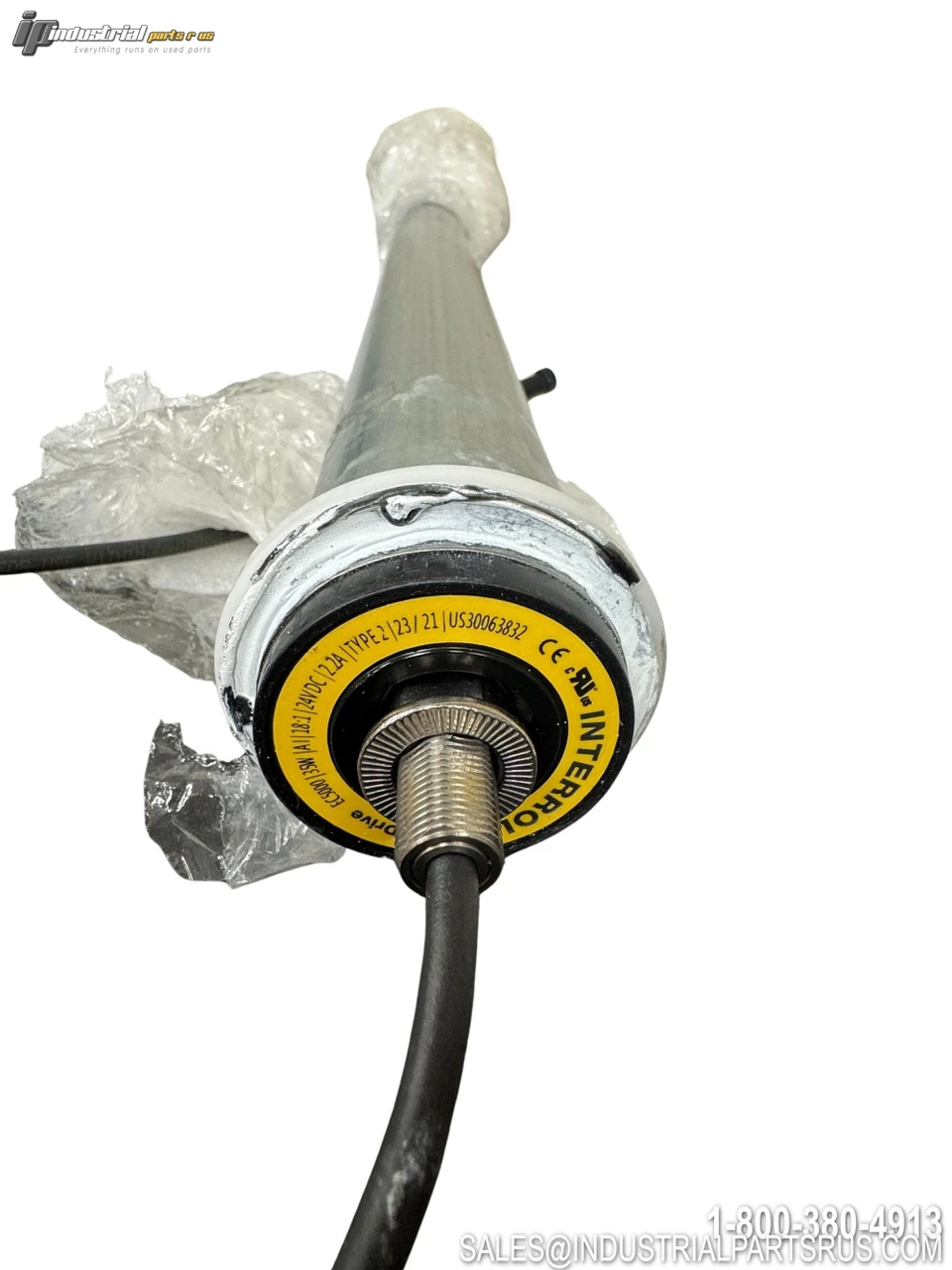

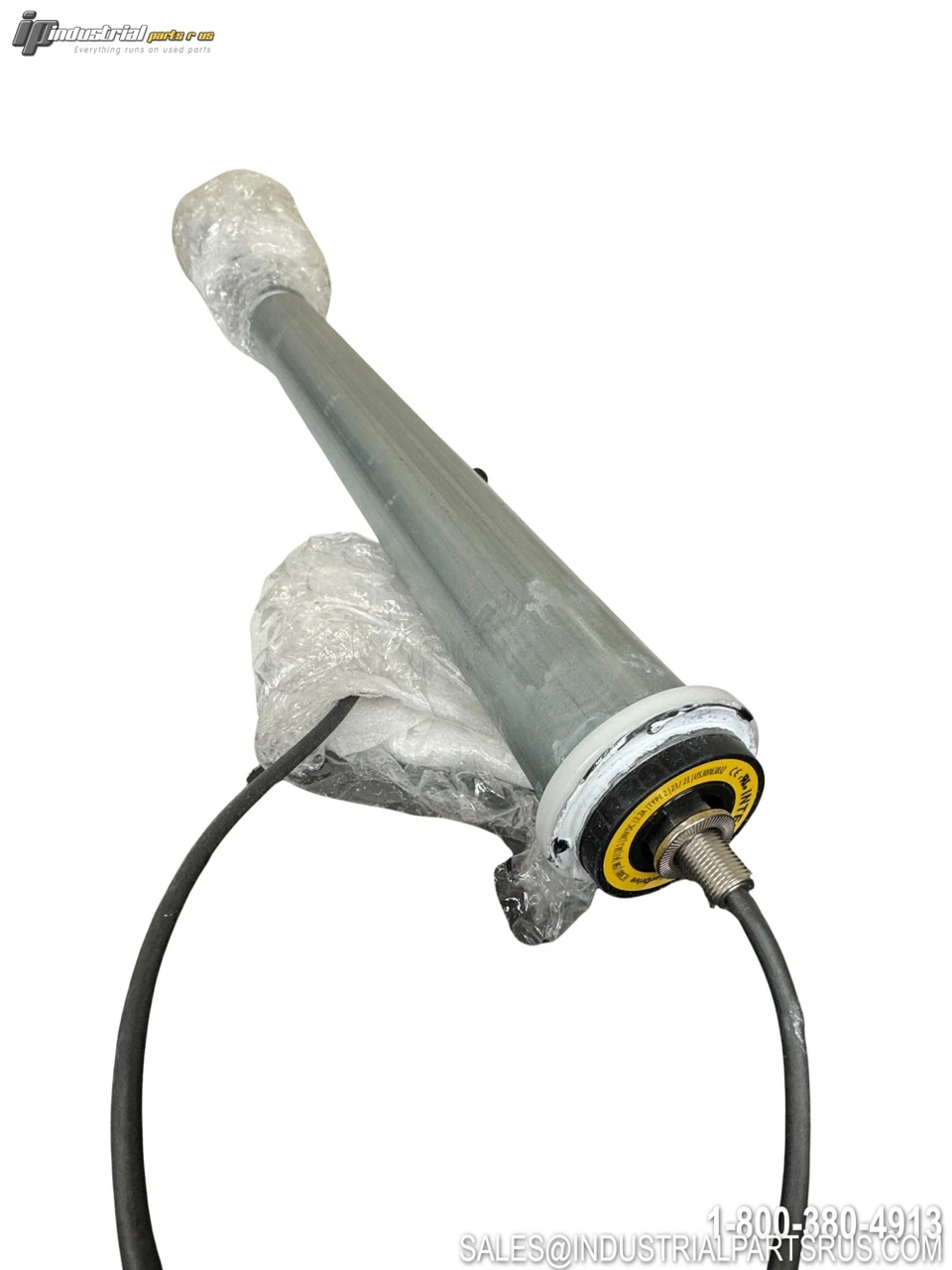

The Interroll 20550-059349 is a custom-configured EC5000 RollerDrive Assembly measuring 25.25 inches in body face (BF) length. This motorized drive roller features a custom 2-groove tube profile at positions 3.53" and 6.94", and includes two Delrin retaining rings. It is a self-contained roller unit with an integrated brushless DC (electronically commutated) drive motor, gearbox, and electronics, rated at 35W (0.047 HP) with IP54 enclosure protection. Designed for use in zero-pressure accumulation conveyor zones and modular conveyor systems in distribution, e-commerce, and intralogistics applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Interroll |
| Model / Part Number | 20550-059349 |
| Product Type | Motorized Drive Roller Assembly |
| Series | EC5000 RollerDrive |
| Body Face (BF) Length | 25.25 inches (641.35 mm) |
| Groove Configuration | Custom 2-Groove @ 3.53" and 6.94" |
| Number of Grooves | 2 |
| Groove Positions | 3.53" and 6.94" from reference end |
| Retaining Rings | 2x Delrin Retaining Rings (included) |
| Motor Type | Electronically Commutated (EC) / Brushless DC |
| Operating Voltage | 24 VDC or 48 VDC (EC5000 platform) |
| Application | Zero Pressure Accumulation Conveyor Zones |
| Compatible Platform | Interroll EC5000 / DC Conveyor Platform |
| Drive Belt Compatibility | PolyVee Belt Drive |
| Configuration Note | Custom / Non-Standard Assembly |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2.4 A (24V) / 1.2 A (48V)
Manufacturer Interroll
Shaft Diameter 11 mm (0.43 in) Hex
Enclosure Type Totally Enclosed (IP54)
Part Number 20550-059349
Shelf GS-25
Model 20550-059349
MPN 20550-059349
Type Electric Motor
