Product Description

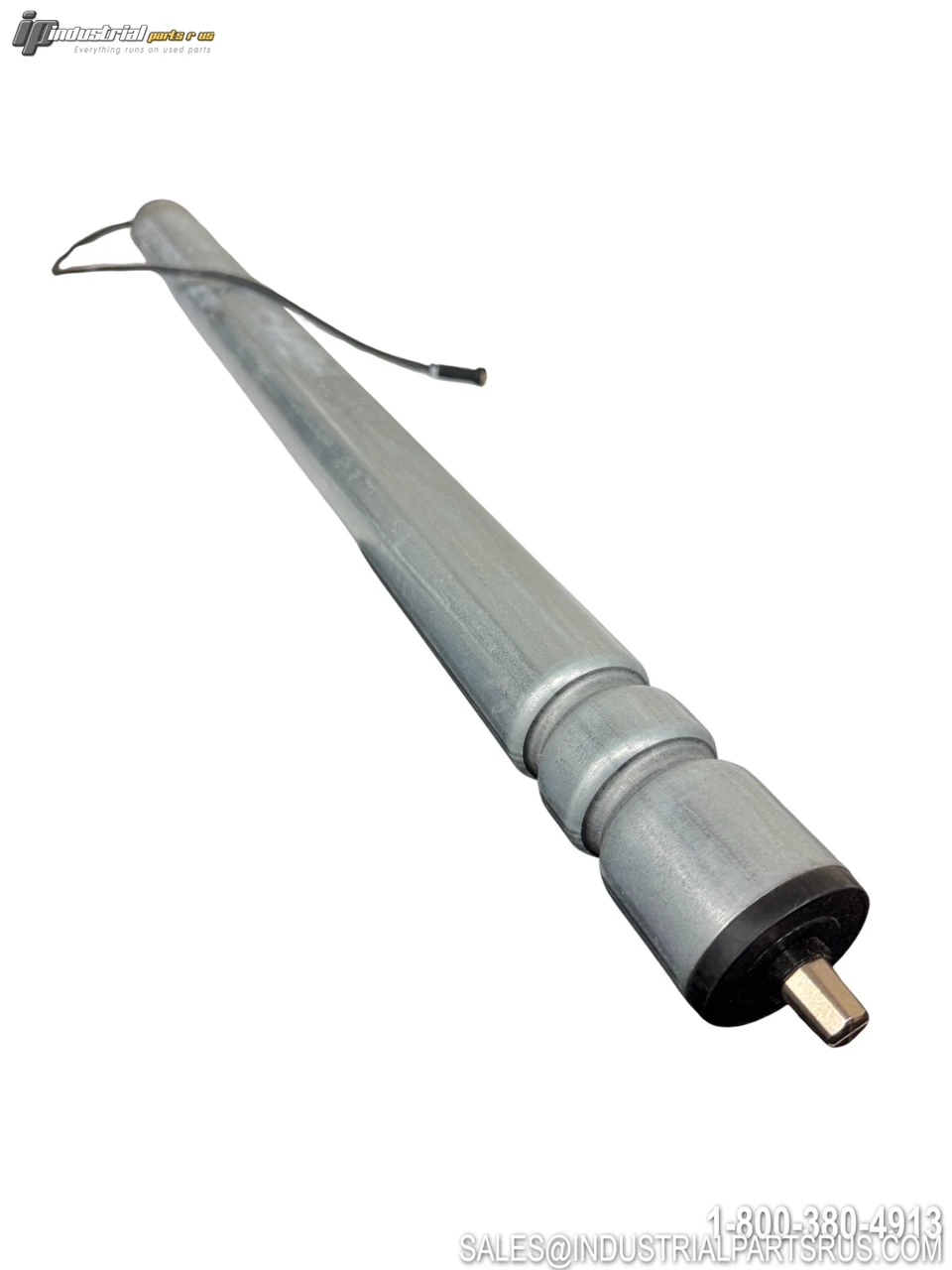

The Interroll RollerDrive EC5000 is a 24 VDC brushless motorized drive roller (MDR) designed for integration into zero-pressure accumulation (ZPA) conveyor systems. This unit features 35 watts of power, an 18:1 gear ratio, and an analogue interface (AI), making it suitable for unit-load conveying applications such as boxes, containers, and totes. Motors, motor electronics, and gears are all internally housed within the roller tube, with a 5-pin snap-in motor cable connector and an electronic holding brake (Zero-Motion-Hold) for use on inclined or gravity conveyors.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Interroll |
| Model / Part Number | EC5000/35W/A1/18:1/24VDC/22A/TYPE2/23/21/ |
| Product Series | RollerDrive EC5000 |
| Rated Power | 35 W |
| Interface Type | Analogue Interface (AI) |
| Gear Ratio | 18:1 |
| Rated Voltage | 24 V DC |
| Rated Current | 2.2 A |
| Starting (Peak) Current | 5.5 A |
| Drive Head / Type Rating | Type 2 (Round Belt, 2 Grooves) |
| Tube Diameter | 50 mm (1.9") |
| Reference / Ordering Length | 23 inches |
| Between Frame (Inside Frame Width) | 21 inches |
| Motor Type | Brushless DC (BLDC), internal commutation electronics |
| Protection Rating (IP) | IP54 |
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Motor Shaft / Fastening | Stainless steel, 11 mm HEX, M12 x 1 thread |
| Motor Cable Length | 500 mm (with 5-pin snap-in connector) |
| Max Reference Length | 1500 mm |
| Tube Material | Zinc-plated steel / Stainless steel options |
| Max Conveying Speed (50mm roller, 18:1) | ~1.00 m/s (varies by application) |
| Electronic Holding Brake | Yes (Zero-Motion-Hold) |
| Energy Recovery | Yes (regenerative braking) |
| Max Noise Emission (installed) | 55 dB(A) (application-dependent) |
| Breakaway Torque Max | 13 Nm |
| Overload Protection | Yes (overtemperature and blockage protection) |
| Compatible Controls | Interroll MultiControl AI, DriveControl 20, DriveControl 54, ZoneControl, ConveyorControl |
| Anti-Static Version | Yes (available, <10⁶ Ω) |
| Max Incline | 2.5° |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2.2 A
Manufacturer Interroll
Enclosure Type IP54
Part Number EC5000/35W/A1/18:1/24VDC/22A/TYPE2/23/21/
Shelf Blue Tote
Model EC5000/35W/A1/18:1/24VDC/22A/TYPE2/23/21/
MPN EC5000/35W/A1/18:1/24VDC/22A/TYPE2/23/21/
Type Electric Motor
