Product Description

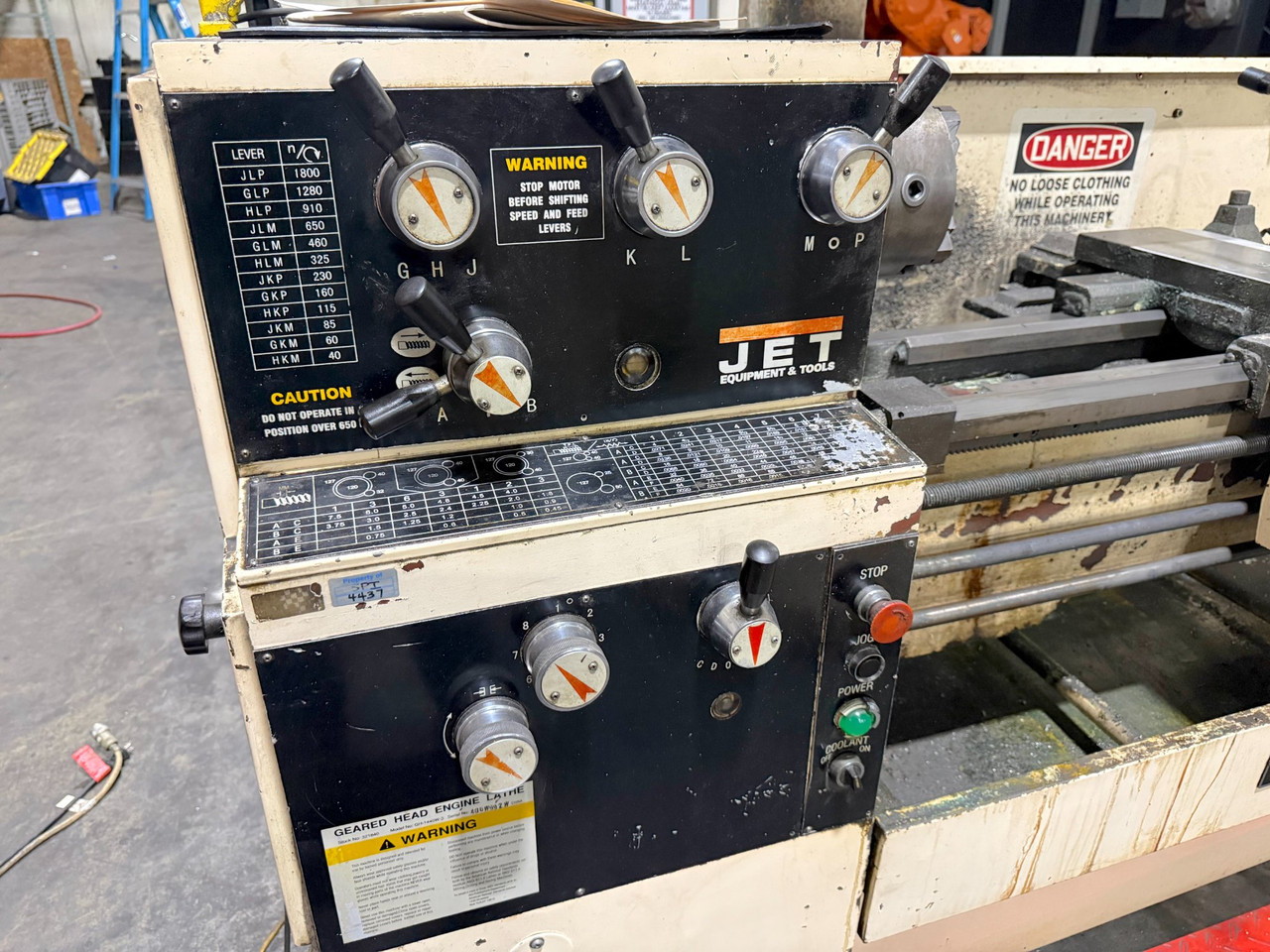

The JET GH-1440W-3 is a precision geared head engine lathe designed for professional metalworking applications. This 14x40 lathe features hardened and ground gears in the headstock and gearbox, precision bearings supporting the hardened and ground spindle, and splined shafts in a constantly oiled gearbox. The D1-4 spindle nose is precision ground for accuracy and supported by high-quality tapered roller bearings.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | JET |
| Model/Part Number | GH-1440W-3 |
| Stock Number | 321840 |
| Swing Over Bed | 14 inches |
| Swing Over Cross Slide | 8-1/4 inches |
| Swing Through Gap | 20 inches |
| Distance Between Centers | 40 inches |
| Spindle Bore | 1-1/2 inches |
| Spindle Nose | D1-4 |
| Number of Spindle Speeds | 12 |
| Spindle Speed Range | 40-1,800 RPM |
| Motor Power | 3 HP (2.2 kW) |
| Motor Type | TEFC Induction |
| Voltage | 230/460V (prewired 230V) |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Length of Gap | 9-3/8 inches |
| Longitudinal Feeds | 40 feeds: 0.0011-0.0271 IPR |
| Cross Feeds | 40 feeds: 0.0003-0.0103 IPR |
| Inch Threads | 40 threads: 4-112 TPI |
| Metric Threads | 22 threads: 0.45-7.5mm |
| Tailstock Taper | #3 Morse |
| Net Weight | 2,191 lbs |
| Shipping Weight | 2,491 lbs |
| Dimensions | 78"L x 38"W x 59"H |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Jet
Part Number GH-1440W-3
Shelf Freight
Model GH-1440W-3
MPN GH-1440W-3
Type Engine Lathe
