Product Description

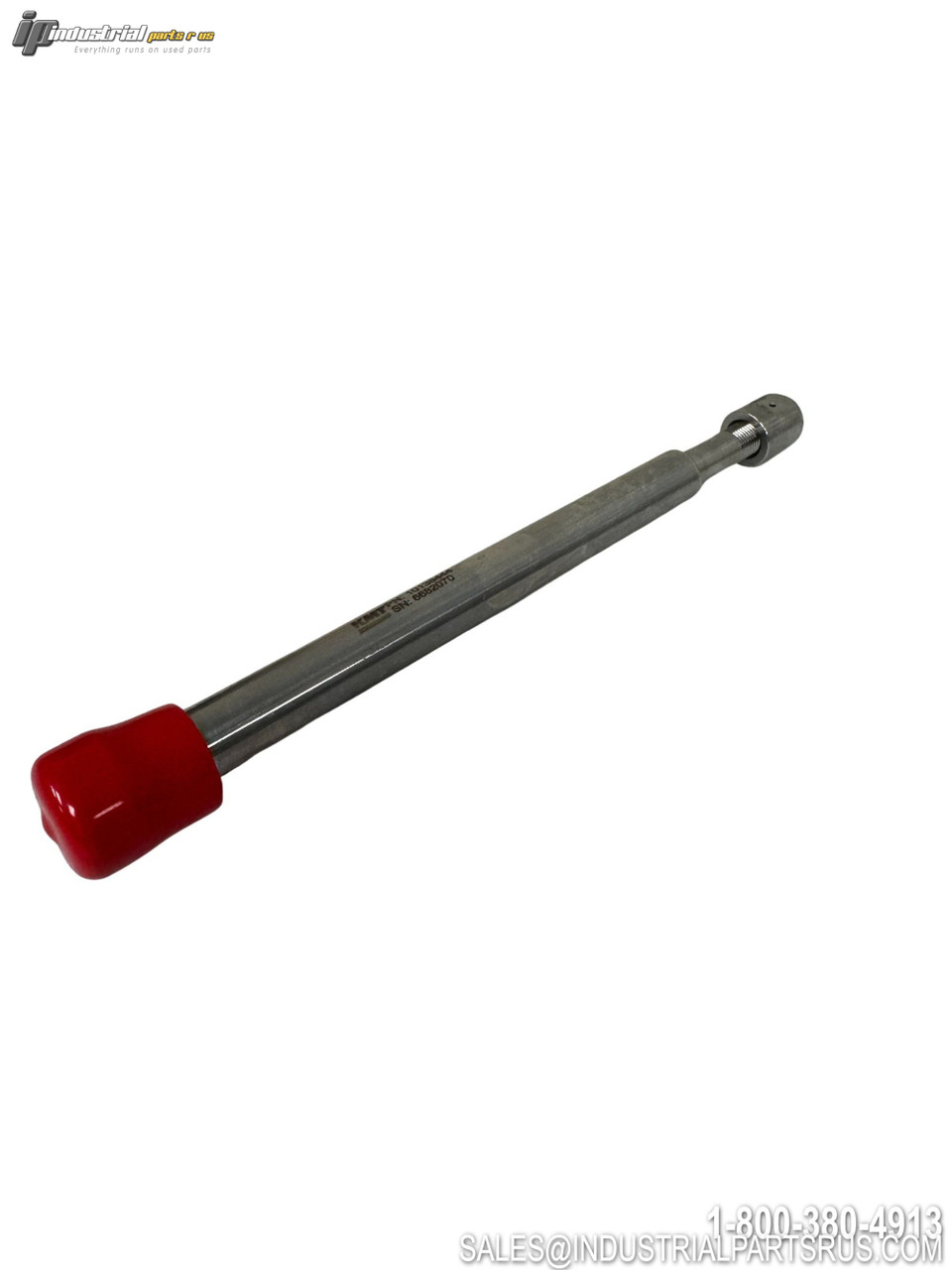

The KMT 10138444 is a high-pressure nozzle tube designed for KMT waterjet cutting head assemblies, specifically for pure water (non-abrasive) cutting applications. It features a 3/8" Nozzle Nut Connection (NNC) and is rated for 60,000 PSI (4,100 bar) operating pressure. The upper end connects to the valve body and accumulator, while the lower end connects to the gland nut, nozzle nut, and orifice within the cutting head assembly. This component is used within a pneumatically operated 2-way, 2-position cutting valve assembly.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | KMT |
| Model/Part Number | 10138444 |
| Product Type | HP Nozzle Tube |
| OEM Description | NOZ TBE-.38X8.0 / Nozzle Tube 8" NNC |
| OEM Listed Length | 8.00 in (20.32 cm) |
| Actual Length | 7.650 in |
| Outer Diameter | 9/16 in (0.5625") |
| Tube Designation | 0.38" x 8.0" / 0.97 x 20.32 cm |
| Connection Type | 3/8" Nozzle Nut Connection (NNC) |
| Max Operating Pressure | 60,000 PSI (4,100 bar) |
| Pressure Rating | 60K |
| Net Weight | 214 g |
| Application | KMT Waterjet Cutting Head – Pure Water / Pneumatic Cutting Valve Assembly |
| Upper Connection | Valve Body / Accumulator |
| Lower Connection | Gland Nut, Nozzle Nut, and Orifice |
| Compatible Valve Body | KMT Pneumatic Valve Body 10189181 |
| Compatible Nozzle Nut | KMT 49863665 |
| Compatible Gland Nut | KMT 49894249 |
| Cross-Reference (AccuStream) | 1-13708 |
| Cross-Reference (Legacy) | 103030 |
| Cross-Reference (WSI) | VL10138444 / 0560996543 / 10015162 |
| Manufacturer Full Name | KMT Waterjet Systems Inc. |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer KMT
Part Number 10138444
Shelf K-50
Model 10138444
MPN 10138444
Type Pneumatic Valve
