Product Description

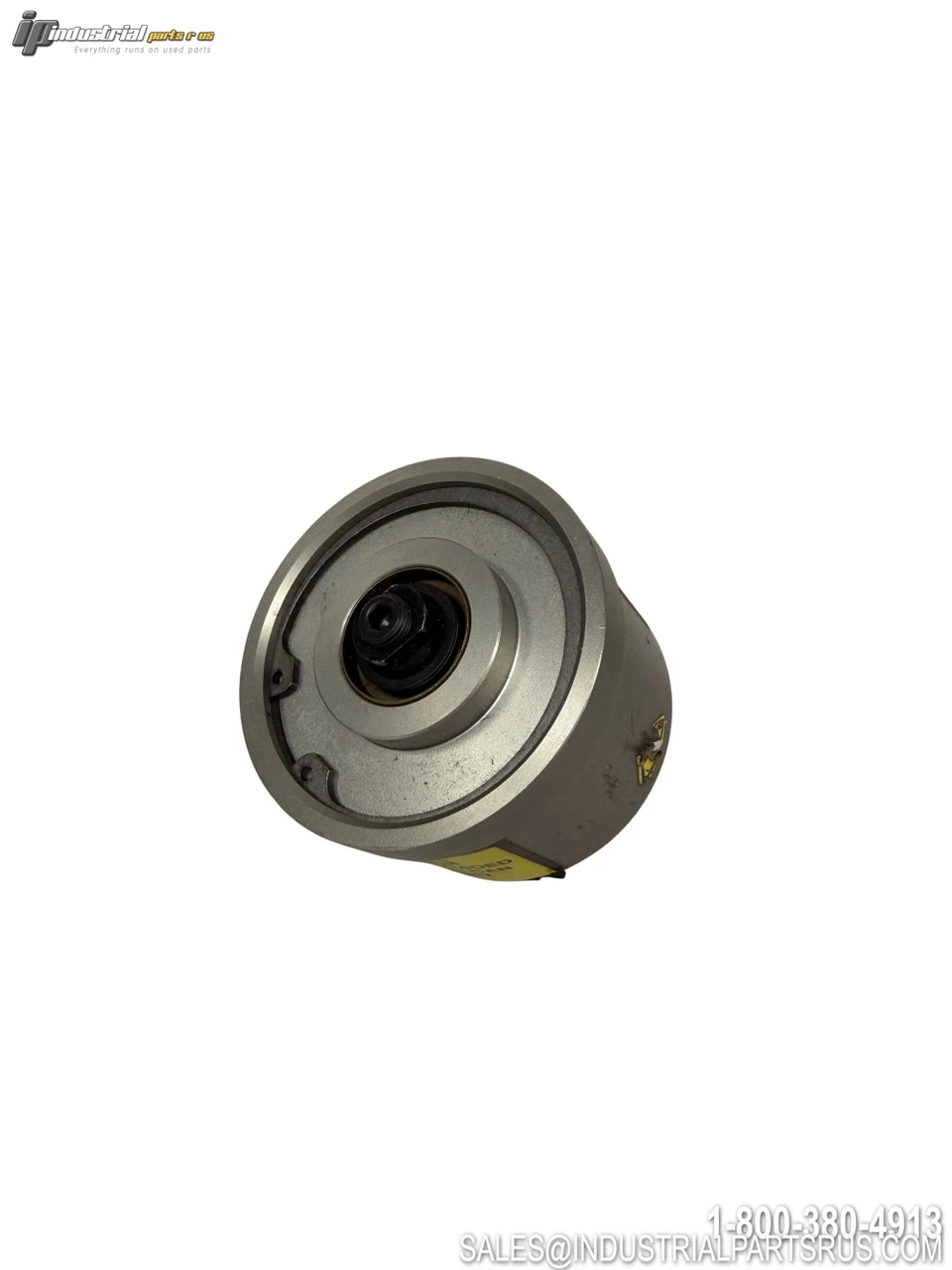

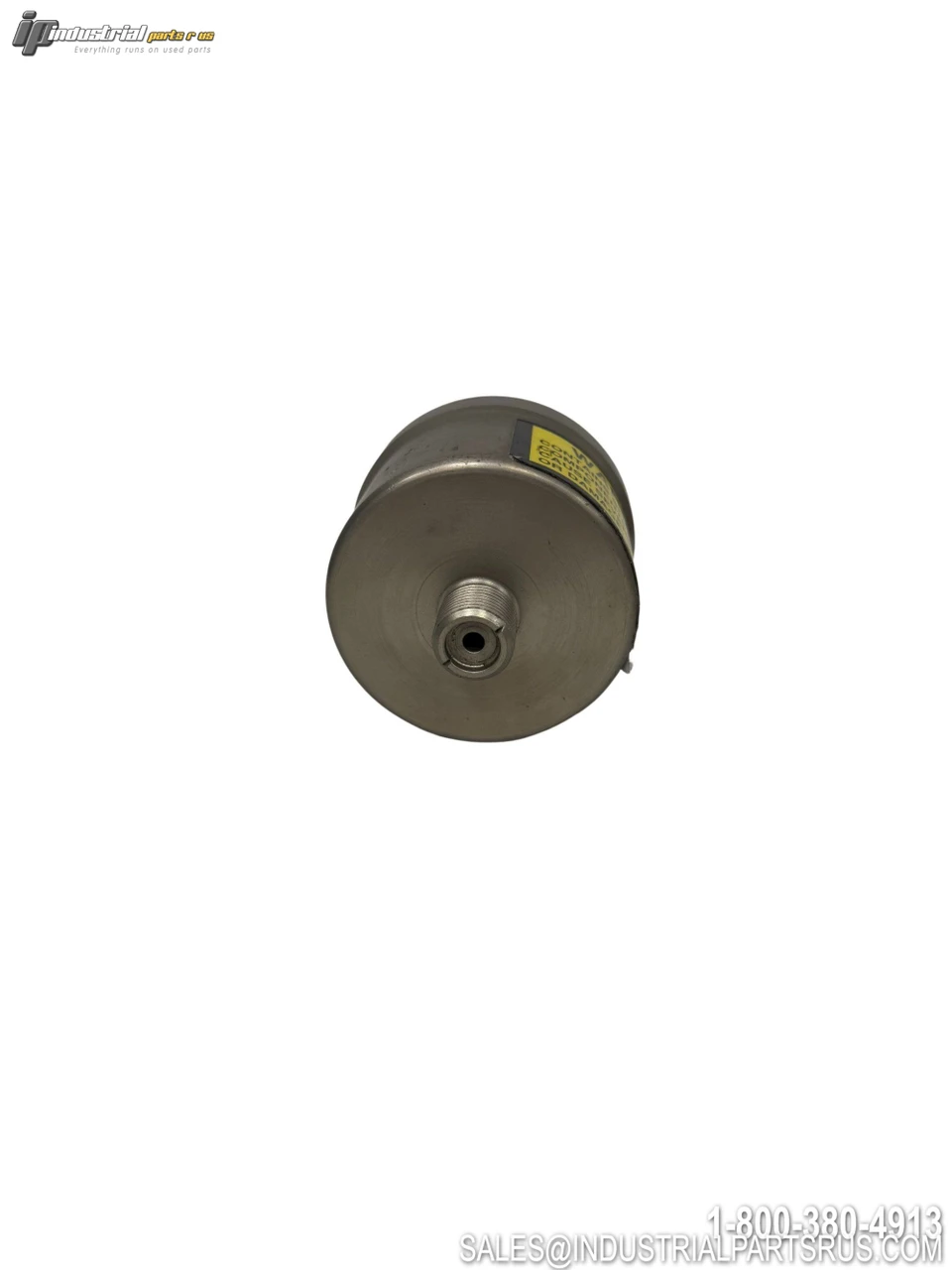

The KMT 10177855 is a pneumatic cylinder actuator assembly for the normally closed (N/C) high-pressure cutting valve used on KMT Waterjet Streamline series pumps and cutting systems rated at 60,000 PSI (60K / 4,100 bar). It is a sub-component of the Pneumatic Control Valve assembly (KMT #10138824) and houses the piston (KMT #10176550, 2.746" diameter) that actuates the high-pressure on/off cutting valve. This OEM-certified part is compatible with KMT Streamline SL-IV, SL-V, SL-VI, S30, and Classic Series 60K waterjet pumps, and is also known as ACTR ASSY-PNEU, NC in KMT parts nomenclature.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | KMT |
| Model / Part Number | 10177855 |
| Description | Cylinder Assembly, Pneumatic Control Valve (Actuator Assembly, N/C) |
| Cylinder Type | Pneumatic, Normally Closed (N/C) |
| Pressure Rating | 60,000 PSI (60K) / 4,100 bar |
| Piston Diameter | 2.746 in (KMT Piston P/N 10176550) |
| Actuation Type | Pneumatic (spring-return, normally closed) |
| Assembly Torque | 5 ft-lbs (7 Nm) |
| Parent Assembly | Pneumatic Control Valve, NC – KMT #10138824 |
| Compatible Systems | KMT Streamline S30, SL-IV, SL-V, SL-VI, Classic Series (60K) |
| Application | Waterjet Cutting Valve / On-Off Valve Actuator |
| Cross-Reference / Replaces | AccuStream 1-12089 | WSI VL10177855 | 0560996118 | 103222 |
| Manufacturer | KMT Waterjet Systems (Shape Technologies Group) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer KMT
Part Number 10177855
Shelf K-50
Bore Diameter 2.746 in
Model 10177855
MPN 10177855
Type Pneumatic Cylinder
