Product Description

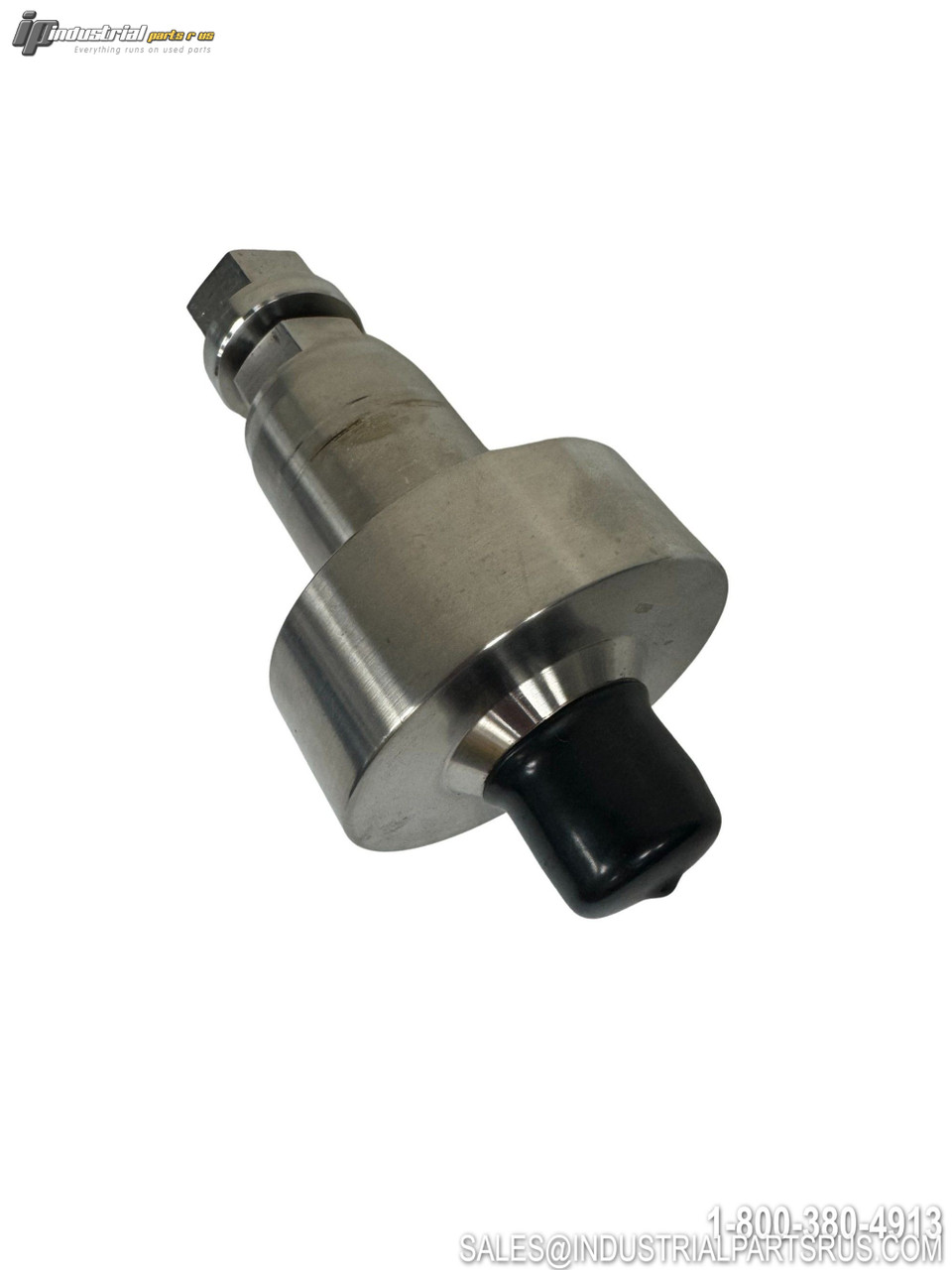

The KMT 20481009 is a genuine OEM High-Pressure (HP) Sealing Head Body designed for use in KMT Waterjet intensifier pump systems. It accommodates a 0.875-inch (7/8") plunger and is rated for ultra-high pressure service at 60,000 PSI (4,100 bar). This component is used in the topworks (intensifier) section of KMT Streamline SL-V, SL-VI, Classic, OEM, and Neoline waterjet pump units ranging from 15 to 100 horsepower, and is a core structural element of the Sealing Head Assembly (20481005). The LP water inlet is a 3/8 in NPT Female port, the HP outlet uses a 9/16-18 UNF Cone & Thread fitting, and maximum flow rate is 1.0 GPM at 60,000 PSI (60 HP).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | KMT |
| Model / Part Number | 20481009 |
| Part Description | Sealing Head Body, HP (High Pressure), Single Inlet |
| Internal Designation | SEAL HD-HP CYL,.88,45D |
| Plunger Diameter | 0.875 in (7/8") |
| Rated Pressure (PSI) | 60,000 PSI |
| Rated Pressure (bar) | 4,100 bar |
| Compatible Pump Series | KMT SL-V, SL-VI, Classic, OEM, Neoline (15–100 HP) |
| Pump Horsepower Range | 15 HP to 100 HP |
| Style | New Style (SL5 / SL-V) |
| Inlet Configuration | Single Inlet |
| Component Category | Topworks (Intensifier) — Sealing Heads & Assemblies |
| Part of Assembly | 20481005 Sealing Head Assembly |
| Cross-Reference (Accustream) | 1-14167 |
| Alternate KMT Part Numbers | 72110961, 80071293 |
| OEM Status | KMT Genuine Part |
| Application | Waterjet Cutting Intensifier Pump |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer KMT
Part Number 20481009
Shelf K-50
Model 20481009
MPN 20481009
Type Hydraulic Pump
