Product Description

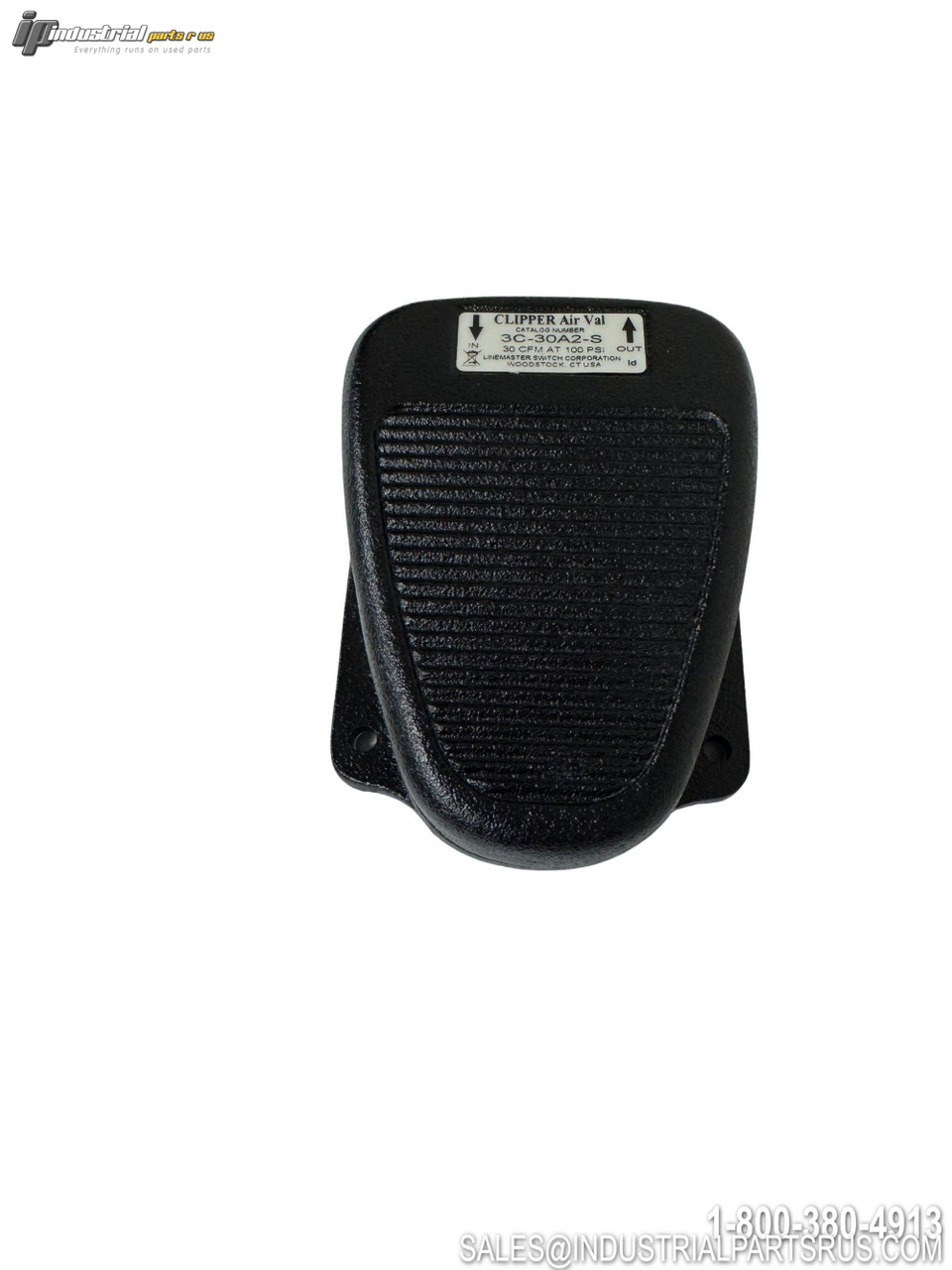

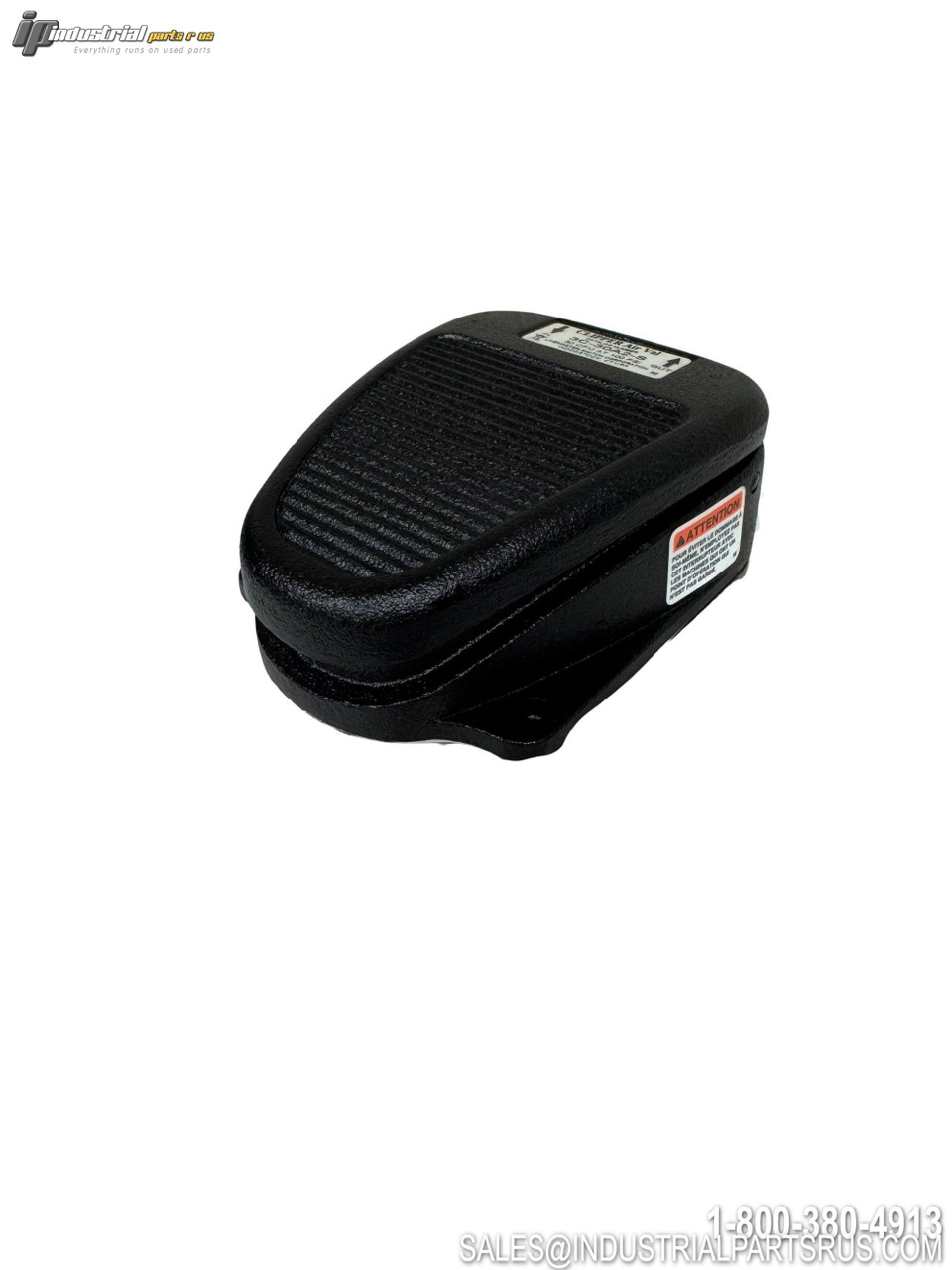

The LineMaster AIRVAL 3C-30A2-S is a Clipper Series single-stage, 3-way momentary pneumatic foot switch featuring a rugged cast iron housing and an interior-ported valve assembly. It is a 3-way 1NO foot switch with rugged cast iron housing and air exhausts around the plunger; the internal valve is constructed of a non-ferrous body, stainless steel plunger, and PTFE-coated Buna-N O-rings. Air flows when the plunger is depressed, stops flowing when the plunger is released and exhausts back pressure on the output side, and the plunger can be depressed flush with the valve body without damage to the valve.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | LineMaster |
| Model / Part Number | AIRVAL 3C-30A2-S |
| Manufacturer Series | Clipper |
| Type | Pneumatic AirVal Foot Switch |
| Control Function | 3-Way Momentary |
| Stage | Single Stage |
| Construction Style | Open, General Purpose |
| Air Flow (at 100 PSI) | 30 CFM |
| Exhaust (at 100 PSI) | 25 CFM |
| Max Line Pressure | 150 PSI |
| Operating Force | 10 lbs |
| Port Size | 1/8-27 NPT (Input & Output) |
| Port Style | Interior Housing |
| Housing Material | Cast Iron, Black Painted |
| Valve Body Material | Non-Ferrous |
| Plunger Material | Stainless Steel |
| O-Ring Material | PTFE-Coated Buna-N (Nitrile) |
| Actuator Type | Plunger |
| Suitable Media | Filtered Air (filtered & lubricated required) |
| Dimensions (W x L x H) | 3.45 x 4.56 x 1.78 in (87.6 x 115.8 x 45.2 mm) |
| Temperature Rating | 0 to 131°F (-18 to 55°C) |
| Mounting | Non-Skid Base, 2 Mounting Holes |
| Replacement Interior Valve | 3-30A2-SI |
We warranty all items for 30 days from date of purchase.
