Product Description

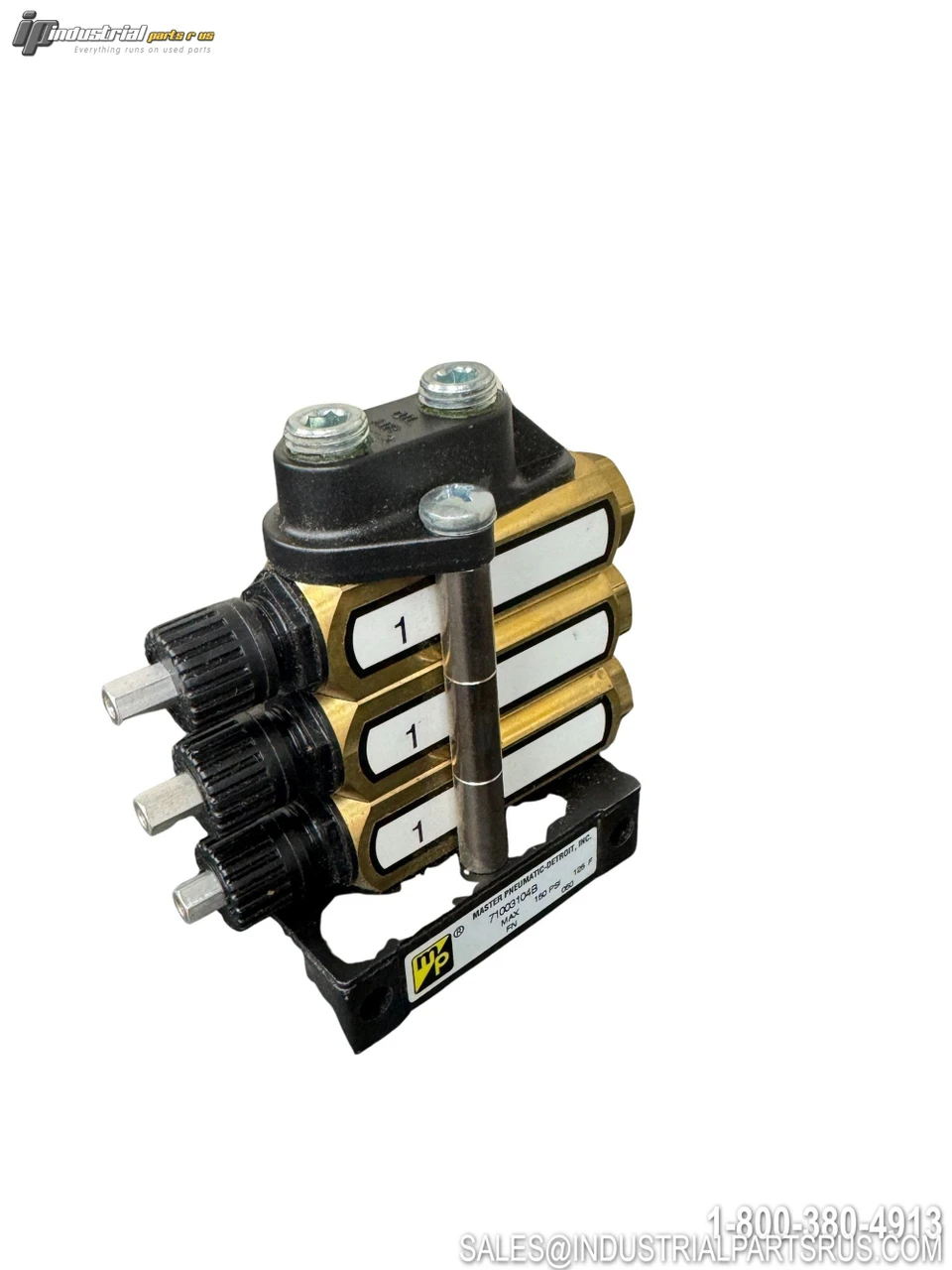

The Master Pneumatic-Detroit 71003104B is a SERV-OIL® Series 710 Multiple-Point Injection Lubricator (MPL) configured with three 1-drop (0.030 ml) Servo-Meter injectors for precision lubrication of pneumatic actuators, cylinders, air motors, and other wear points. The assembly features a solenoid-actuated 3-way pneumatic valve and uses positive-displacement Servo-Meter modules that deliver precise, measured oil doses with each actuation cycle. The Series 710 assembly uses two mounting holes and is suitable for applications requiring dependable micro-lubrication at multiple independent points.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Master Pneumatic-Detroit |
| Model / Part Number | 71003104B |
| Product Series | SERV-OIL® MPL Series 710 |
| Description | MPL 1 DROP — 3-Point Multiple-Point Injection Lubricator |
| Number of Servo-Meters (Lubrication Points) | 3 |
| Servo-Meter Rating | 1 Drop (0.030 ml) per actuation |
| Servo-Meter Adjustment Range | Adjustable down to 1/10 of rated volume (min. 0.003 ml) |
| Servo-Meter Body Material | Brass (optional Aluminum) |
| Servo-Meter End Caps | Acetal |
| Pneumatic Valve Type | Solenoid-actuated 3-way |
| Solenoid Voltage Options (AC) | 24V, 120V, 220V AC — 50/60 Hz |
| Solenoid Voltage Options (DC) | 12V, 24V, 110V DC |
| Operating Pressure | 60–150 psig (4.1–10.3 bar) |
| Maximum Pressure | 150 psig (10.3 bar) |
| Minimum Actuating Pressure | 60 psig (4 bar) |
| Port Size | 1/4 in NPTF |
| Air-to-Oil Pressure Ratio | 11:1 |
| Ambient / Media Temperature | 40°–125°F (4°–52°C) |
| Mounting Holes | 2 (standard Series 710) |
| Dimensions (A × B × C × D × E) | 3.9 × 2.5 × 1.8 × 4.1 × 4.3 in (99 × 64 × 46 × 104 × 109 mm) |
| Oil Supply | Gravity reservoir or pressurized supply ≤30 psig (reservoir ordered separately) |
| Compatible Controllers | PC100 or PC110 (ordered separately) |
| Max Servo-Meters per Assembly | Up to 10 |
| Fluid Media | Oil / Lubricant |
| ISO Certification | ISO 9001:2015 |
