Product Description

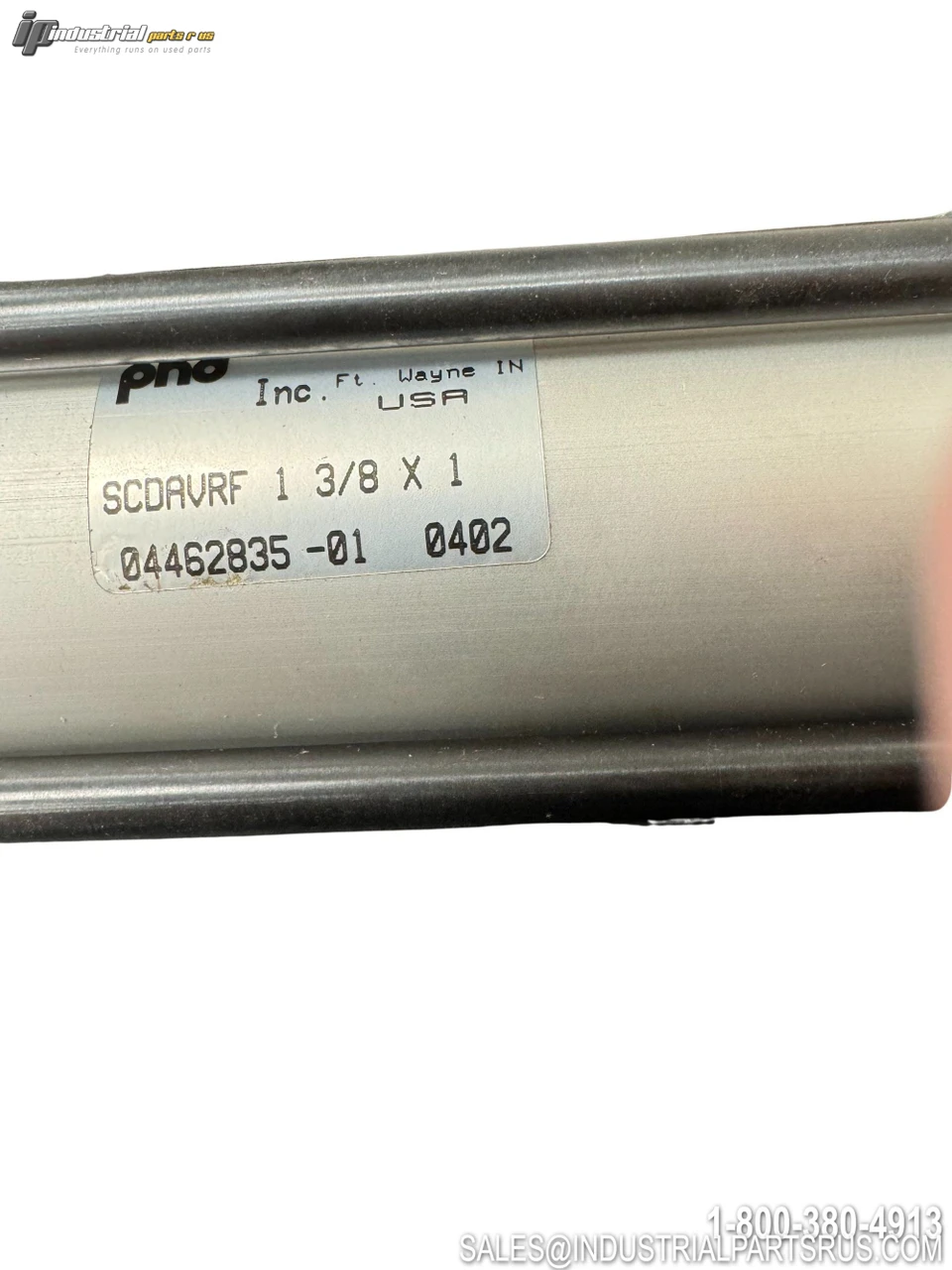

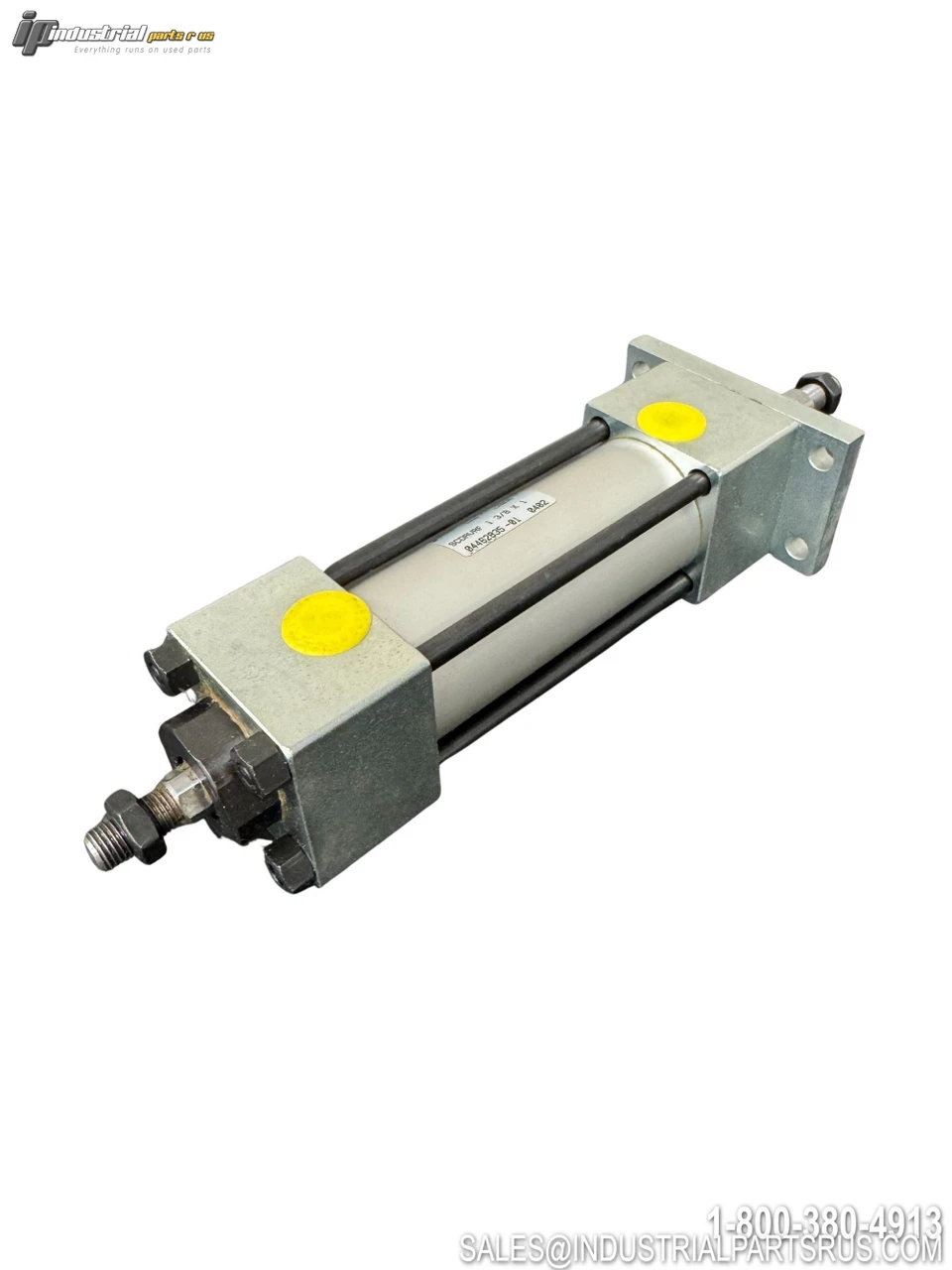

The PHD SCDAVRF 1 3/8x1 is a Tom Thumb® Series AV single-ended tie-rod pneumatic NFPA cylinder featuring a 1-3/8" bore and 1" stroke. Per PHD's model nomenclature, "SC" denotes a spring on the cap end (single-acting spring extend), "D" indicates a double rod end, "A" indicates a stroke adjustment option, "VRF" identifies the AV Series with rod-end and foot mounting styles. It is permanently lubricated, field repairable, and rated for 20 to 150 PSI air pressure with an operating temperature range of -20°F to +180°F.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | PHD |
| Model / Part Number | SCDAVRF 1 3/8x1 |
| Manufacturer Full Name | PHD, Inc. |
| Product Series | AV Series (Tom Thumb® Tie-Rod NFPA) |
| Cylinder Type | Single-Ended Tie-Rod Pneumatic NFPA Cylinder |
| Acting Type | Single-Acting, Spring on Cap End (Spring Extend) |
| Rod Configuration | Double Rod End (D option) |
| Stroke Adjustment | Yes – 1/2" standard adjusting range (A option) |
| Bore Diameter | 1-3/8" (1.375") |
| Stroke Length | 1" |
| Mounting Style | Rod End (R) and Foot Mount (F) – counterbored through holes |
| Port Size | 1/4" NPT (standard for 1-3/8" bore AV series) |
| Port Position | Position 1 (standard) |
| Rod End Thread | 3/8"-24 UNF (male) – standard for 1-3/8" bore |
| Standard Rod Diameter | 1/2" standard rod |
| Operating Pressure (Air) | 20 to 150 PSI [1.4 to 10 bar] |
| Operating Temperature | -20°F to +180°F [-29°C to +82°C] |
| Stroke Tolerance | ±0.032" |
| Lubrication | Permanently lubricated at factory (dry air or lubricated air) |
| Maintenance | Field repairable |
| Body / Piston Material | Anodized Aluminum |
| Input Medium | Compressed Air |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture USA
Manufacturer Phd
Part Number SCDAVRF 1 3/8X1
Shelf B-8
Bore Diameter 1-3/8 in
Model SCDAVRF 1 3/8X1
MPN SCDAVRF 1 3/8X1
Type Pneumatic Cylinder
