Product Description

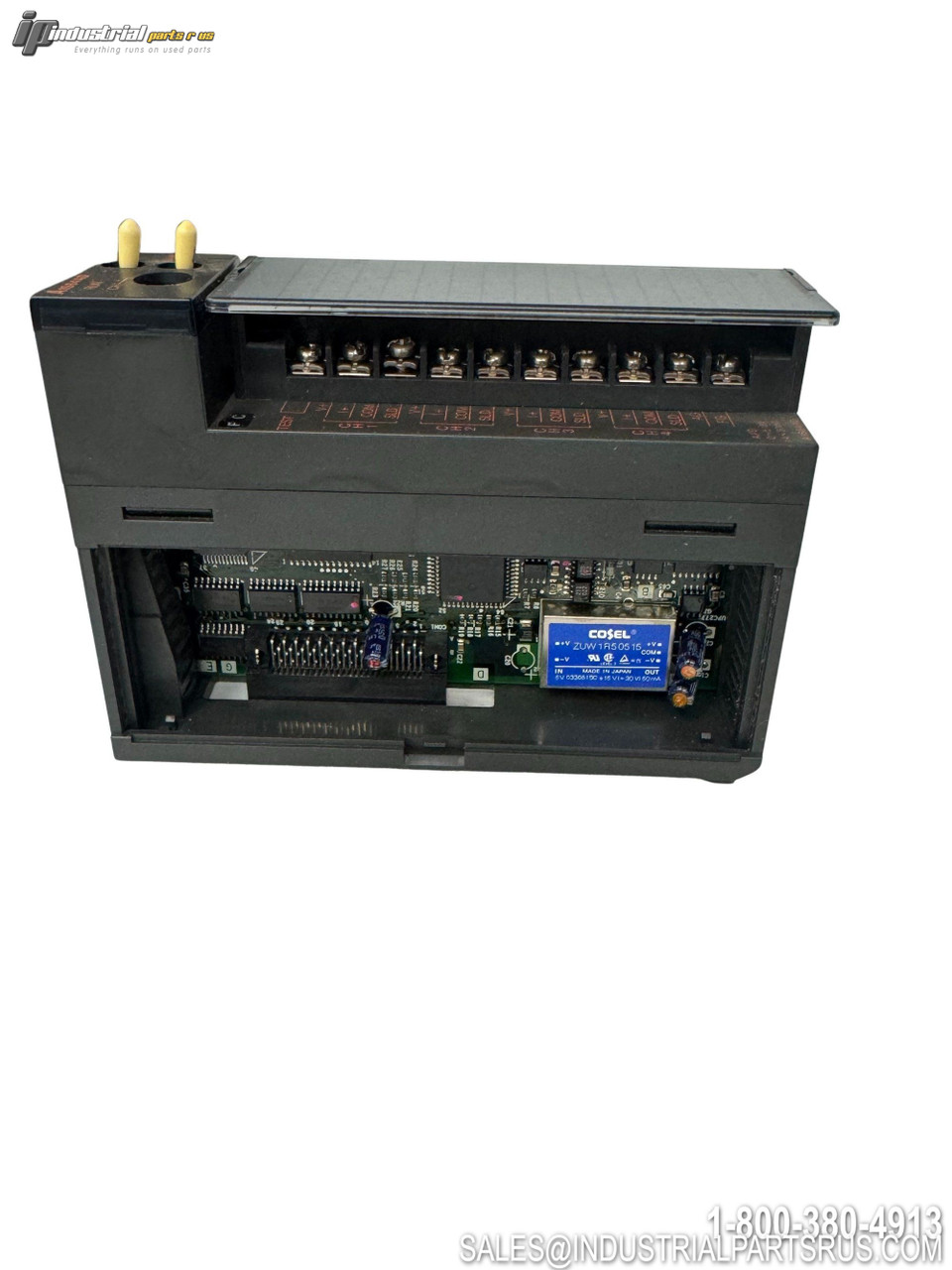

The Mitsubishi A1S64AD is an analog-to-digital converter module designed for the MELSEC-A series PLC systems. This module converts analog input signals (voltage or current) to 16-bit digital values for the CPU unit. It features 4 independent input channels, each configurable for either voltage or current input, with high resolution and reliable photocoupler isolation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | A1S64AD |
| Product Series | MELSEC-A |
| Module Type | Analog Input |
| Number of Channels | 4 |
| Voltage Input Range | -10V to +10VDC |
| Current Input Range | -20mA to +20mA |
| Resolution | 16-bit |
| Conversion Speed | 20ms/channel |
| Voltage Input Resistance | 1MΩ |
| Current Input Resistance | 250Ω |
| Voltage Resolution | 0.83mV |
| Current Resolution | 3.33µA |
| Maximum Absolute Voltage | ±15VDC |
| Maximum Absolute Current | ±30mA |
| I/O Points Occupied | 32 Special I/O |
| Connection Type | 20-point Terminal Block |
| Wire Size | 0.75-1.5mm² |
| Internal Current Consumption | 0.4A at 5VDC |
| Weight | 0.25kg |
| Dimensions | 130 x 34.5 x 93.6mm |
| Operating Temperature | 0°C to 50°C |
| Isolation | Photocoupler |
| External Power Supply | Not Required |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps -20mA to +20mA
Manufacturer Mitsubishi
Part Number A1S64AD
Controller Platform MELSEC-A
Shelf E-6
Model A1S64AD
MPN A1S64AD
Type I/O Module
