Product Description

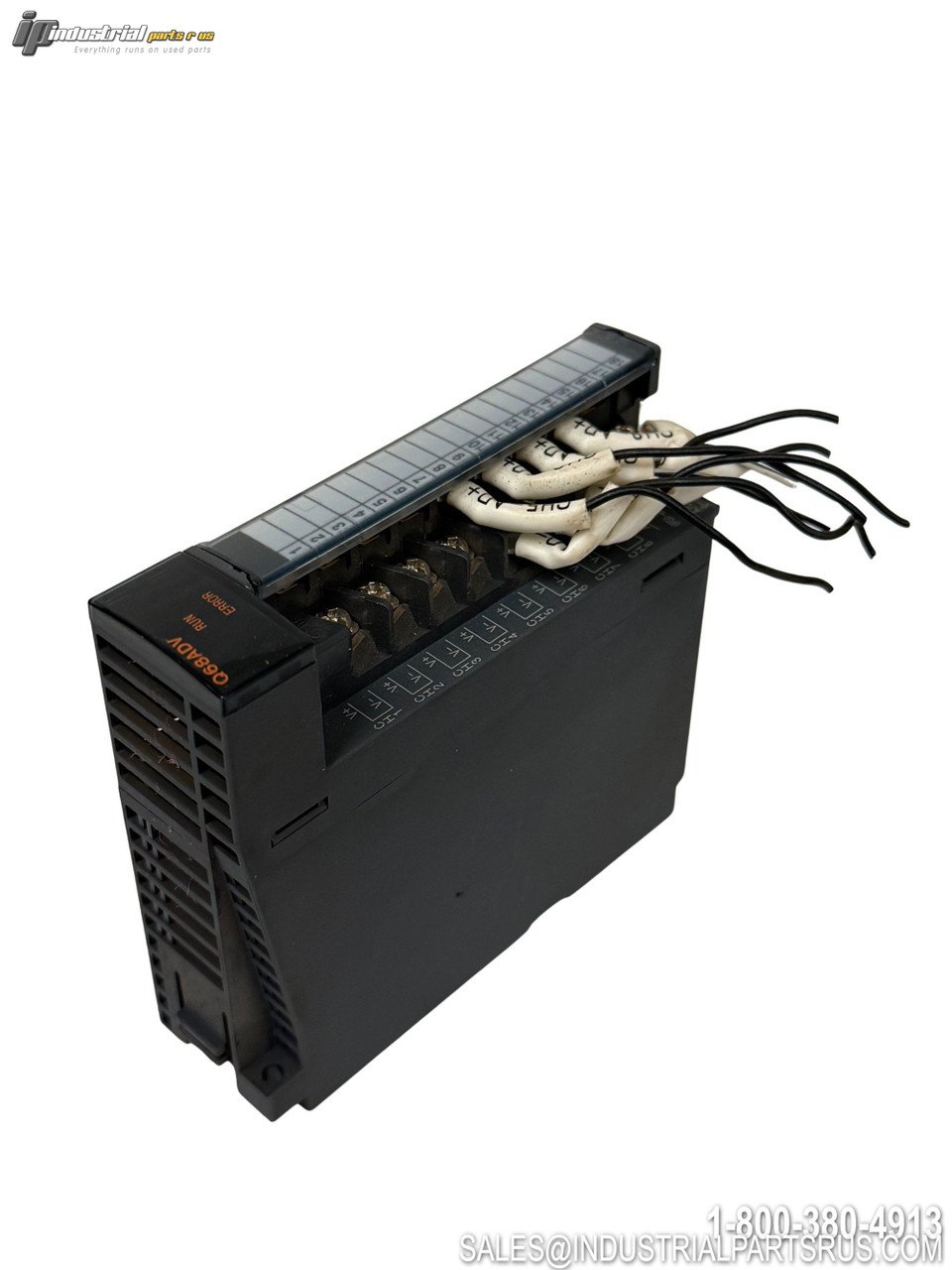

The Mitsubishi Q68ADV is a high-performance analog voltage input module designed for the MELSEC-Q series PLC platform. This advanced module provides 8 differential input channels with 16-bit resolution for precise analog signal acquisition in industrial automation systems. It features fast conversion speed, high accuracy, and robust construction for reliable operation in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | Q68ADV |
| Product Type | Analog Input Module |
| PLC Series | MELSEC-Q |
| Number of Input Channels | 8 channels |
| Input Type | Analog Voltage |
| Input Voltage Range | -10 to +10V DC |
| Input Impedance | 1 MΩ |
| Resolution | 16-bit |
| Conversion Speed | 80 microseconds per channel |
| Digital Output Range (Normal) | -4096 to 4095 |
| Digital Output Range (High-Res) | -12288 to 12287 or -16384 to 16383 |
| Terminal Block | 18-point screw terminal |
| Wire Size | 0.3 to 0.75 mm² |
| Current Consumption | 0.64 A at 5V DC |
| Weight | Approximately 0.2 kg (0.44 lbs) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.64 A at 5V DC
Manufacturer Mitsubishi
Part Number Q68ADV
Controller Platform MELSEC-Q
Shelf K-52 Tub 1
Model Q68ADV
MPN Q68ADV
Type PLC I/O Module
