Product Description

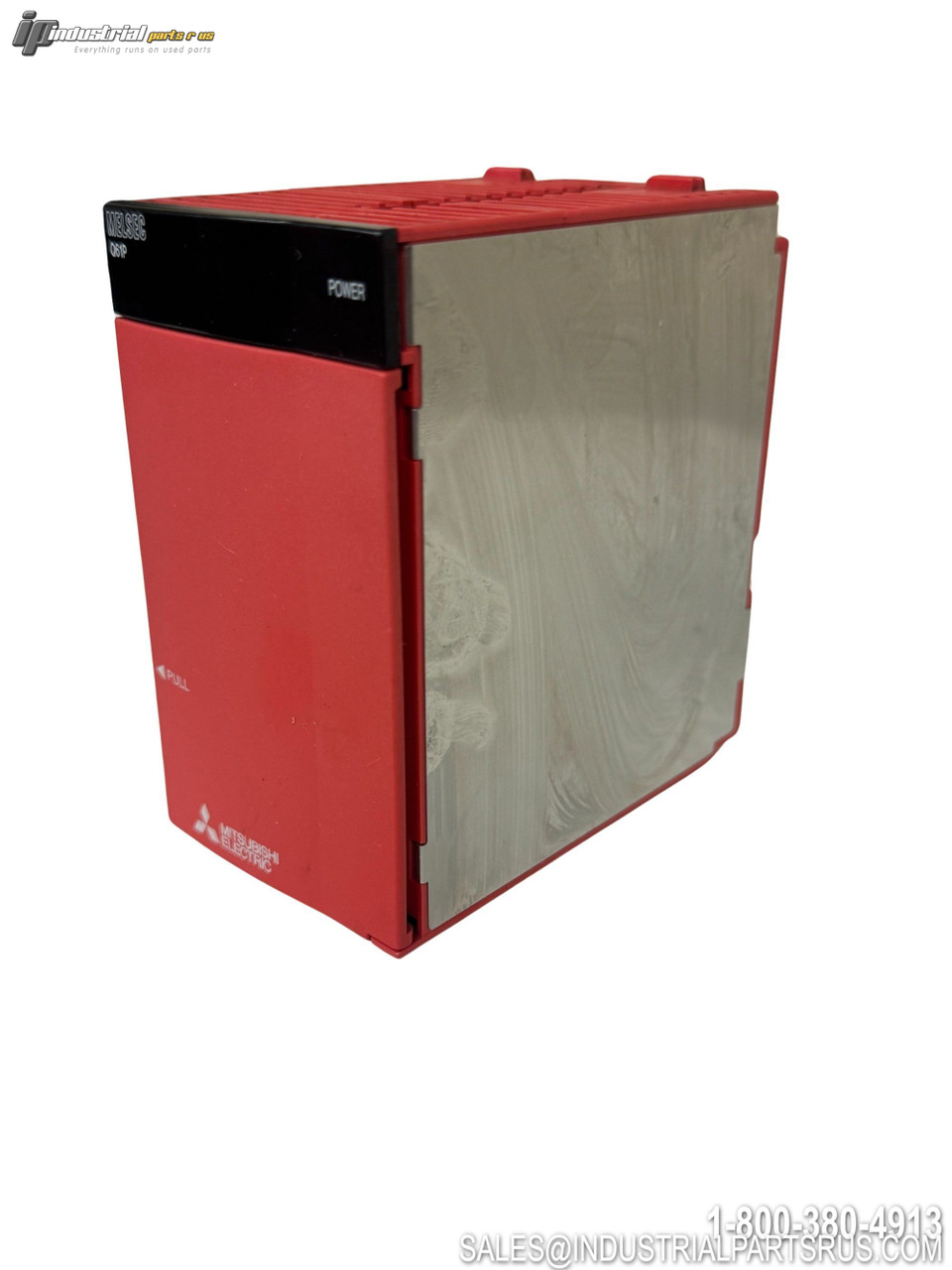

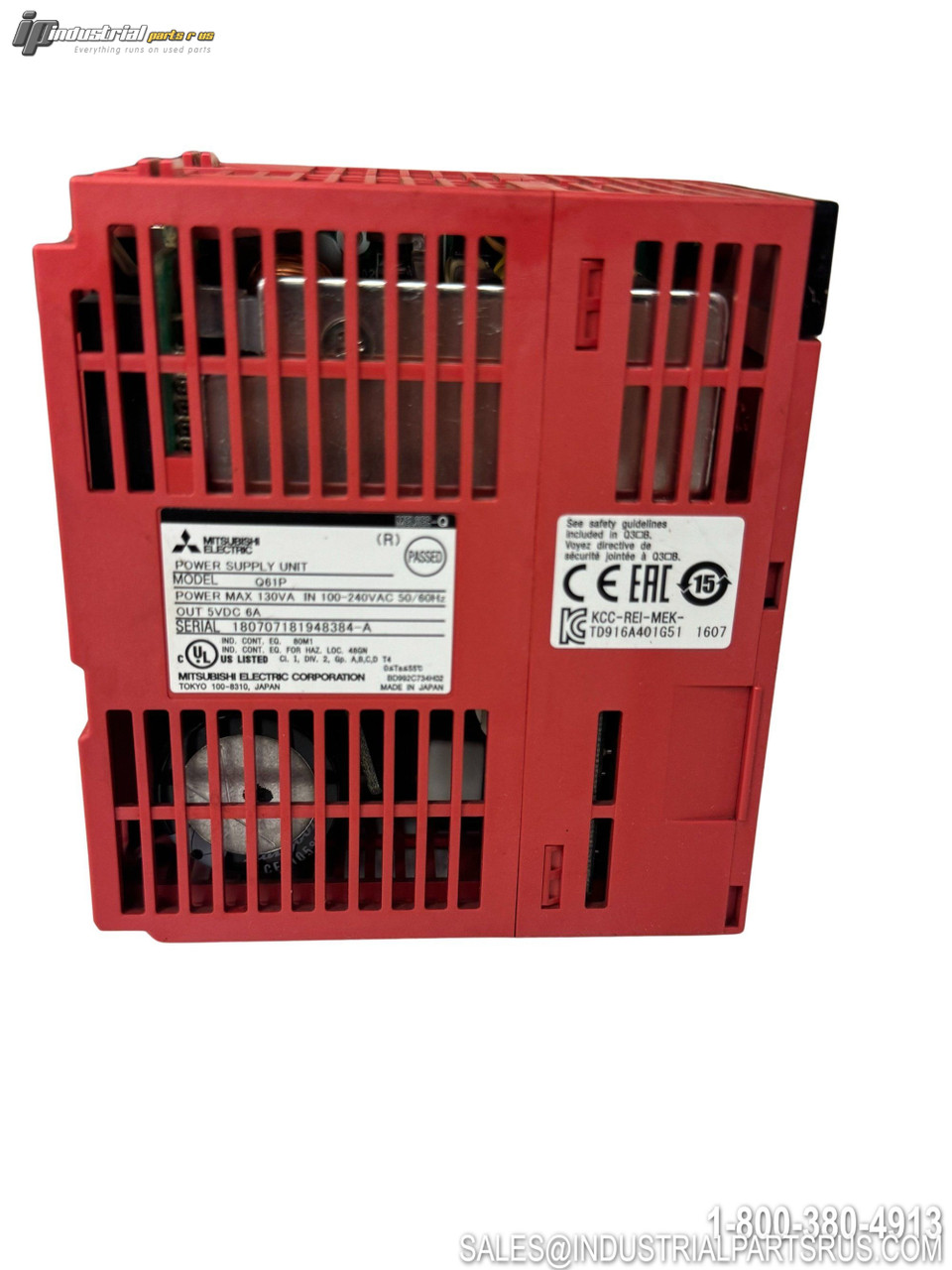

The Mitsubishi Electric Q61P is a power supply module (PSU) for the MELSEC-Q Series programmable logic controller platform. It accepts a wide-range 100–240V AC input and delivers a stable 5V DC output at up to 6A (30W) to power the CPU, I/O modules, and all other modules mounted on the Q Series base unit. The module features built-in overcurrent and overvoltage protection, an ERR contact output for external fault diagnosis, and an LED power indicator, making it a robust and reliable foundation for industrial automation systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | Q61P |
| Product Type | PLC Power Supply Module |
| Series / Platform | MELSEC-Q (QnU) |
| Rated Input Voltage | 100–240V AC (+10% / -15%) |
| Input Voltage Range | 85–264V AC |
| Input Frequency | 50/60 Hz ±3 Hz |
| Input Voltage Distortion Factor | 5% or less |
| Max. Input Apparent Power | 105 VA |
| Inrush Current | 20A max within 8 ms (at 100V AC); 40A max (at 200V AC) |
| Output Voltage | 5V DC |
| Rated Output Current | 6A (5V DC line) |
| ERR Contact Output | 24V DC, 0.5A |
| Overcurrent Protection Range | 6.6–7.9A |
| Overvoltage Protection Range | 5.5–6.5V |
| Efficiency | 70% or higher |
| Allowable Momentary Power Failure | Within 20 ms |
| Power Indicator | LED (lit at 5V DC output) |
| Base Unit Slots Occupied | 1 |
| Compatible Base Units | Q3_DB, Q3_B, Q6_B (MELSEC-Q Series) |
| Certifications / Approvals | UL, cUL, CE, RoHS |
| Weight | 0.31 kg (0.68 lbs) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Full Load Amps 20A max within 8ms (100VAC); 40A max (200VAC)
Manufacturer Mitsubishi
Part Number Q61P
Controller Platform MELSEC-Q (QnU)
Shelf K-71
Model Q61P
MPN Q61P
Type PLC Power Supply
