Product Description

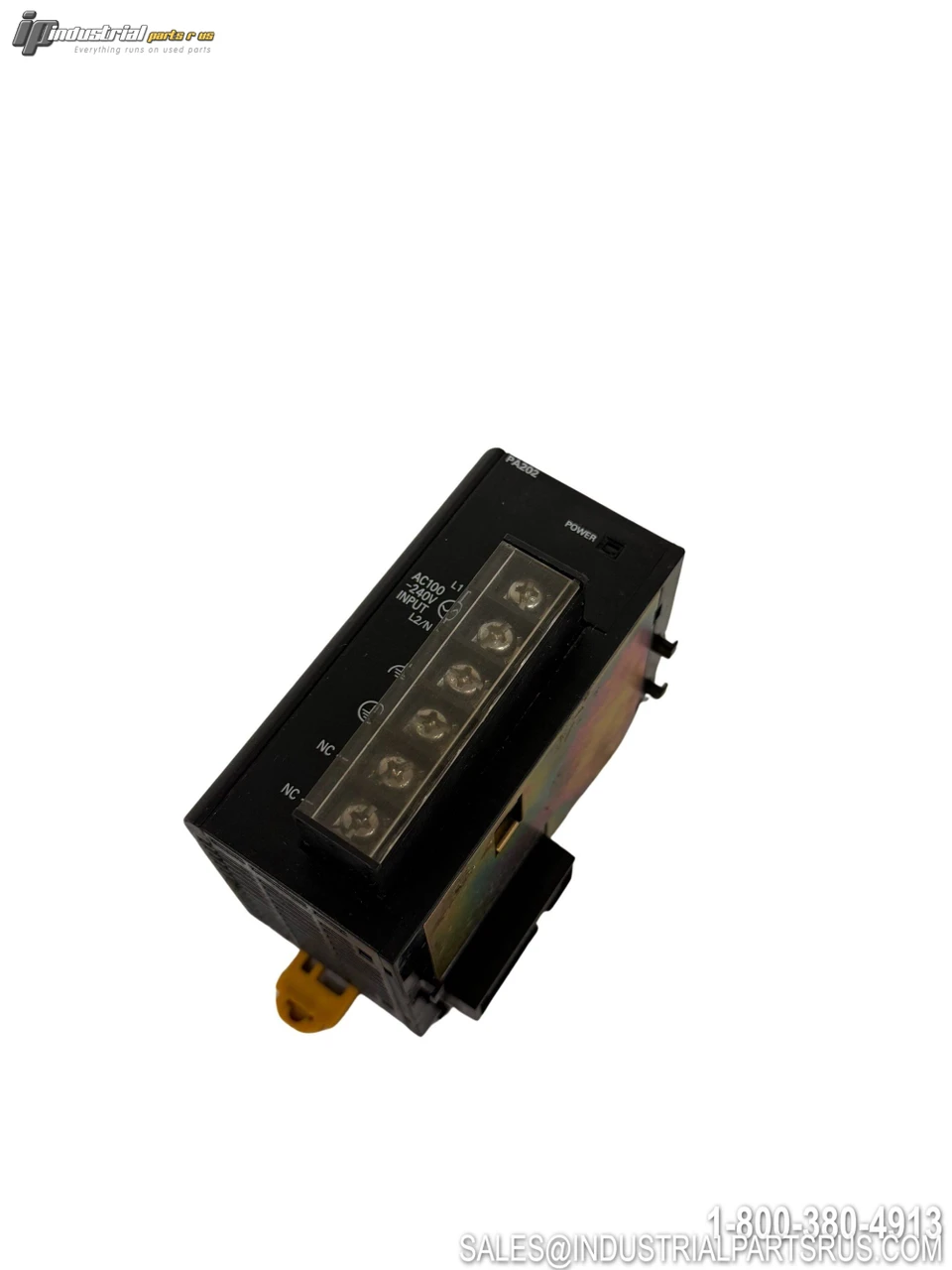

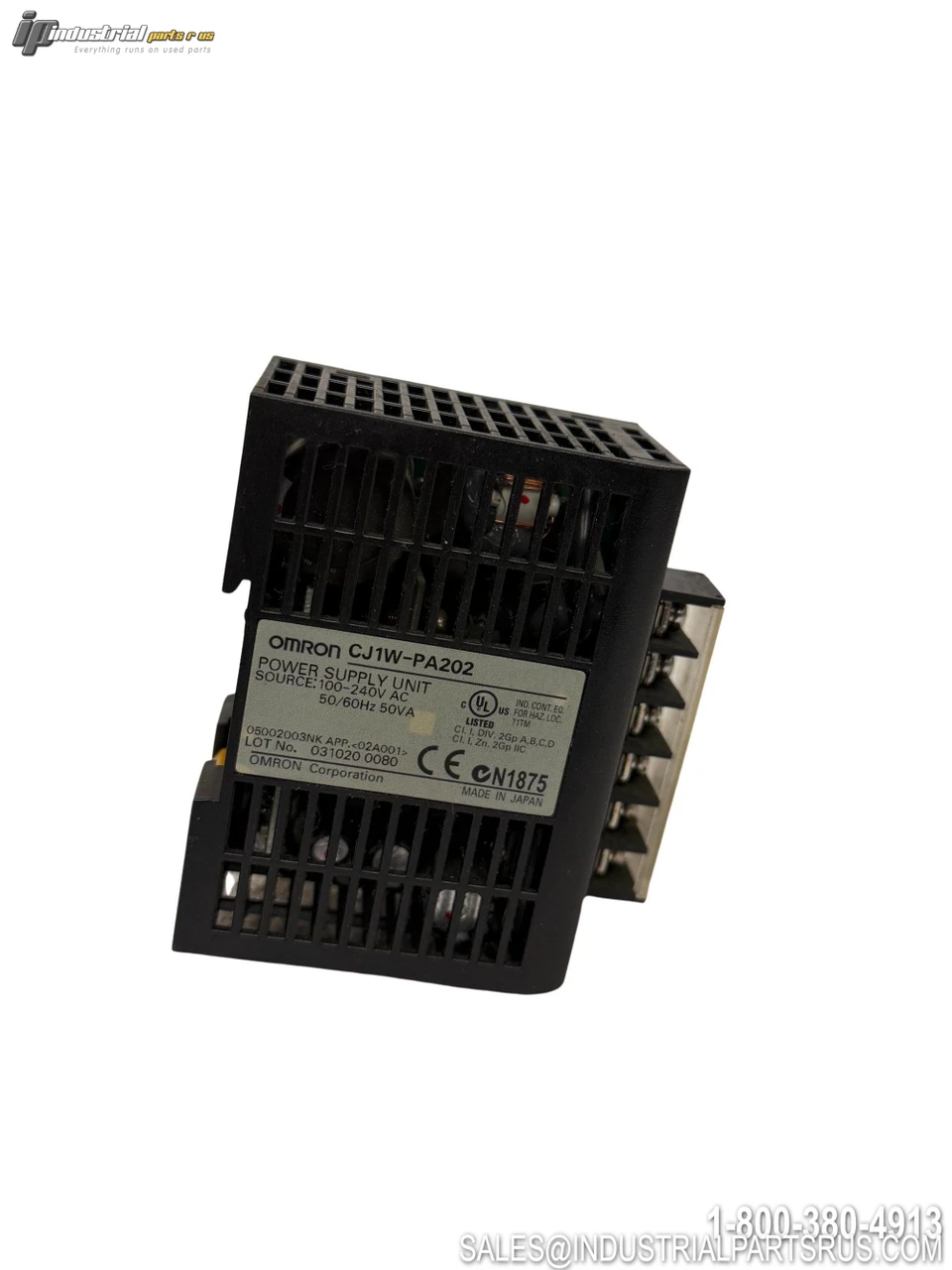

The Omron CJ1W-PA202 is an AC power supply unit designed specifically for CJ1 series programmable logic controllers. This 14W power supply module provides dual outputs of 5VDC at 2.8A and 24VDC at 0.4A, ensuring stable power distribution throughout the PLC system. The unit features a wide input voltage range of 100-240VAC, making it suitable for global applications without voltage selection requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | CJ1W-PA202 |
| Product Type | PLC Power Supply |
| Series | CJ1W-PA |
| Input Voltage | 100-240 VAC |
| Input Voltage Range | 85-264 VAC |
| Frequency | 50/60 Hz |
| Output Voltage | 5VDC (2.8A), 24VDC (0.4A) |
| Rated Power | 14W |
| 5VDC Output Current | 2.8A |
| 24VDC Output Current | 0.4A |
| Mounting Type | DIN Rail |
| Phase | Single-phase (1AC) |
| Dimensions (H x W x D) | 90 x 45 x 81.6 mm |
| Weight | 200g |
| Operating Temperature | 0 to +55°C |
| Connection Type | Screw Terminal |
| Features | RUN output status, replacement notification function |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2.8A
Manufacturer Omron
Part Number CJ1W-PA202
Controller Platform CJ1
Shelf E-3 Tub 1
Model CJ1W-PA202
MPN CJ1W-PA202
Type PLC Power Supply
