Product Description

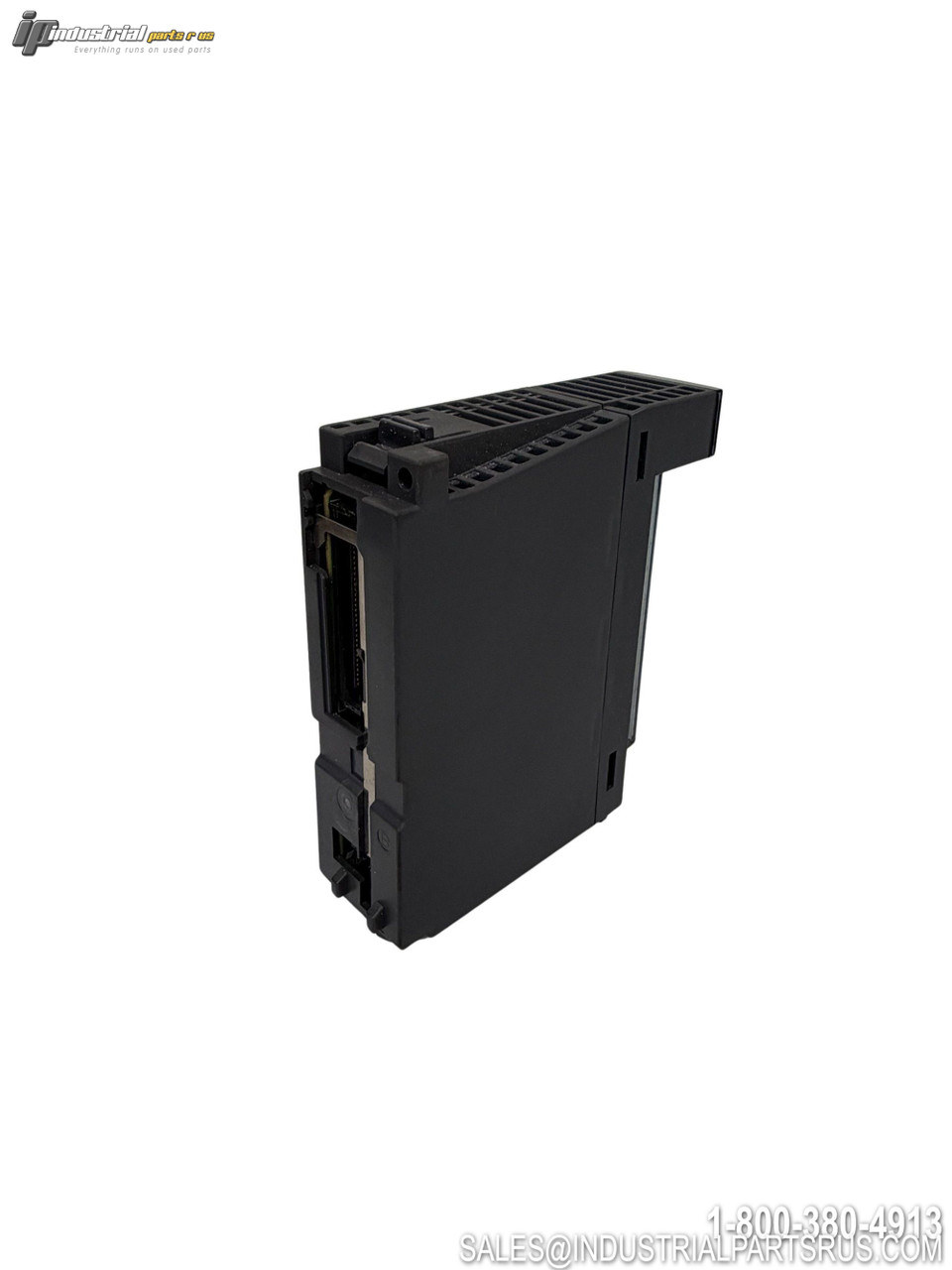

The Mitsubishi Q64DA is a 4-channel Digital-to-Analog (D/A) converter module designed for use with the MELSEC-Q Series programmable controller platform. It accepts 16-bit signed binary digital input values and outputs precision analog voltage (±10V DC) or current (0–20mA DC) signals across four independent channels. The module communicates via the Mitsubishi MELSEC-Q backplane bus, mounts directly onto a MELSEC-Q series base unit, and requires an external 24V DC power supply for analog output operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | Q64DA |
| Series / Platform | MELSEC-Q |
| Module Type | D/A Converter Module (Digital-to-Analog) |
| Number of Analog Output Channels | 4 channels (CH1–CH4) |
| Digital Input Resolution | 16-bit signed binary |
| Normal Resolution Range | –4096 to +4095 |
| High Resolution Mode Range | –12288 to 12287 / –16384 to 16383 |
| Analog Voltage Output Range | –10 to +10V DC |
| Voltage Output Load Resistance | 1 kΩ to 1 MΩ |
| Analog Current Output Range | 0 to 20 mA DC |
| Current Output Load Resistance | 0 to 600 Ω |
| Absolute Max Voltage Output | ±12V DC |
| Absolute Max Current Output | 21 mA DC |
| D/A Conversion Speed | 800 µs/channel |
| I/O Points Occupied | 16 points |
| Internal Current Consumption (5V DC) | 0.34 A |
| External Power Supply Voltage | 22.85 to 28.8V DC (24V DC nominal) |
| Output Short-Circuit Protection | Yes |
| Channel Isolation | Not isolated between output channels |
| Height | 98 mm |
| Width | 27.4 mm |
| Depth | 90 mm |
| Weight | 0.19 kg |
| Compatible Programming Software | GX Developer, GX Works2 |
| Status Indicator | RUN LED (On=Normal, Flashing=Offset/Gain mode, Off=Error/WDT) |
| Product Status | Discontinued by Manufacturer |
