Product Description

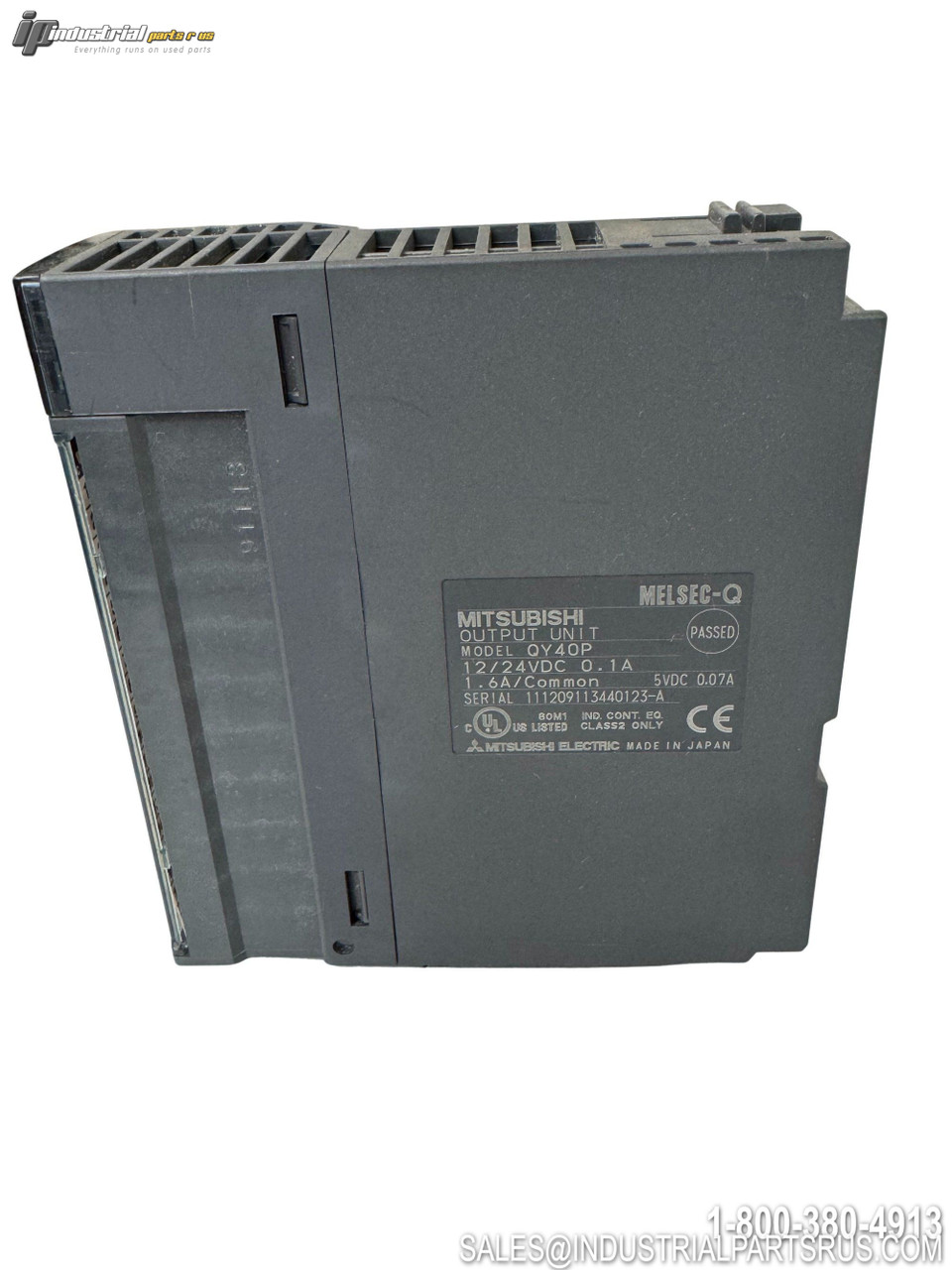

The Mitsubishi QY40P is a 16-point digital transistor output module designed for use in MELSEC-Q series programmable logic controller systems. This sink-type output module features photocoupler isolation and is rated for 12-24VDC operation with a maximum load current of 0.1A per point.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model/Part Number | QY40P |
| Product Type | Transistor Output Module (Sink Type) |
| Series | MELSEC-Q |
| Number of Output Points | 16 points |
| Output Type | Transistor (Sink) |
| Isolation Method | Photocoupler |
| Rated Load Voltage | 12-24VDC (+20/-15%) |
| Maximum Load Current | 0.1A per point, 1.6A common |
| Maximum Inrush Current | 0.7A, 10ms or less |
| Leakage Current at OFF | 0.1mA or less |
| Max Voltage Drop at ON | 0.1VDC (TYP), 0.2VDC (MAX) |
| Response Time | 1ms |
| Surge Suppressor | Zener diode |
| Dielectric Withstand Voltage | 560VAC rms/3 cycles |
| Insulation Resistance | 10MΩ or more |
| Protection Degree | IP2X |
| Terminal Type | 18-point screw terminal (M3 screws) |
| Common Terminal | 16 points/common, sink type |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type Transistor (Sink)
Country/Region of Manufacture Japan
Full Load Amps 0.1A per point, 1.6A common
Manufacturer Mitsubishi
Part Number QY40P
Controller Platform MELSEC-Q
Shelf E-6 Tub 2
Model QY40P
MPN QY40P
Type PLC I/O Module
